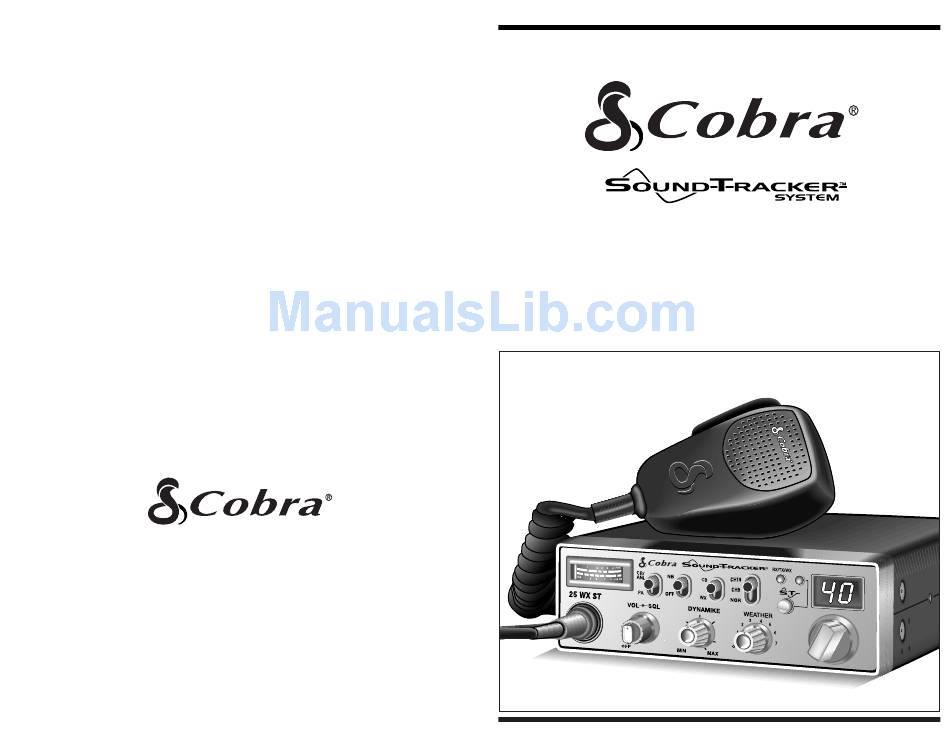

- Page 1 OPERATING INSTRUCTIONS FOR YOUR 40 CHANNEL CITIZENS BAND 2-WAY MOBILE RADIO Model 25 WX ST Cobra Electronics Corporation 6500 W. Cortland Street Chicago, IL 60707 PRINTED IN HONG KONG ©COBRA ELECTRONICS CORP. 1997 480-210-P-001...
-
Page 2: Table Of Contents
Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra, may cause violation of the technical regulations of Part 95 of the FCC Rules, or violation of Type Acceptance requirements of Part 2 of the Rules. -
Page 3: Specifications
Specifications FREQUENCY RANGE The COBRA 25 WX ST transceiver represents one of the most advanced AM two- way radios ever designed for use as a Class D station in the Citizens Radio Service. This unit features advanced Phase Lock Loop (PLL) circuitry providing complete coverage of all 40 channels as shown below. -
Page 4: Installation
The mounting must be mechanically strong and also provide a good electrical connection to the chassis of the vehicle. To mount the transceiver: Determine the most convenient location in your vehicle, hold the COBRA radio with mounting bracket in the exact location desired. If nothing will... -
Page 5: Cb Antenna
It is available as optional equipment from your COBRA dealer. It consists of a 120-volt, 60 Hz AC to 12-volt DC power con- verter that delivers the required power for the operation of the transceiver. Simply connect the red (+) and black ( - ) leads of the transceiver to the corresponding terminals of the power packs. -
Page 6: Operation
Operation Controls and Indicators Refer to controls, indicators and connectors as illustrated below: A. Front Panel MICROPHONE CONNECTOR. Front panel microphone connector. OFF/ON/VOLUME. Turn clockwise to turn power on and set the desired listening volume. SQUELCH. This control is used to cut off or eliminate receiver back- ground noise in the absence of an incoming signal. -
Page 7: Operating Procedure To Receive
Operation (Cont.) B. Press-To-Talk Microphone Both the receiver and transmitter are controlled by the Press-to-Talk switch on the microphone. Press the switch and the transmitter is activated; release the switch to receive. When transmitting, hold the microphone two inches from the mouth and speak clearly in a normal voice. -
Page 8: Operating Procedure To Receive Weatherband
Operation (Cont.) Operating Procedure for Public Address Connect a PA speaker to the PA jack provided on the rear panel. Place PA/CB/ANL switch into the PA position. Depress push-to-talk switch on micÑspeak in normal voice. Adjust PA speaker volume with front panel DYNAMIKE control. When the Volume control is rotated clockwise, activity on the CB channel will be heard through the PA speaker. -
Page 9: Maintenance And Adjustment
Replacement or substitution of certain parts with replacements other than those recommended by COBRA, may be a violation of the technical regulations of Part 95 of the FCC Rules, or of Type Acceptance requirements of Part 2 of said rules. -
Page 10: A Few Rules That Should Be Obeyed
This will ensure the fastest turnaround time on your repair.” You may be asked to send your unit to the Cobra factor y . It will be necessary to furnish the following, in o r der to have the p roduct serviced and returned. -
Page 11: Limited Two Year Warranty
Mail to: Cobra Accessories Dept. 6500 W. Cortland St., Chicago, IL 60707 Make check or money order (no stamps) payable to Cobra Electronics and mail with this order form to: Cobra Accessories Dept. 6500 W. Cortland St., Chicago, IL 60707 Call 773-889-3087, or fax 773-622-2269 for credit card orders Allow 4 to 6 weeks for delivery.
