Browning Aggressor BAX10HA Quick Start Manual

BAITCASTING REEL
BAX10HA
Reel Specifications
Weight Max Line Capacity
Model Bearings (oz.) Drag(lbs.) mono/braid (lb./yds.) IPT Gear Ratio
BAX10HA 10 (9+1) 7 12 10/140, 12/130, 14/120 27"
30/150, 40/140, 50/115
• Dual Braking System
™
• 10 (9+1) Bearing System
• Powerlock Instant Anti-Reverse
™
• 1-pc. Aluminum Frame
• Machined-Aluminum Spool
Features and Operations Instructions
Aluminum Frame & Aluminum Spool
The aluminum frame design enhances strength and durability allowing for
sustained peak performance over time. The spool is made from lightweight aluminum
for reduced friction and longer casts. This part has also been anodized to protect from
corrosion.
Dual Braking System
™
The Aggressor is equipped with an easy-to-use dual braking system. This system
should be used to help eliminate backlash.
It combines a 4-pin internal centrifugal braking system with an externally
adjustable 10-position magnetic system. Simply rotate the dial on the palming
sideplate to increase or decrease the magnetic force that is exerted on the spool
assembly. The 4-pin centrifugal system is engaged automatically and requires no
manual adjustment.
Cast Control System
The cast control knob is located on the handle side under the star drag. Its purpose
is to apply continuous friction to the end of the spool shaft, assisting the centrifugal
brake system in maintaining the correct spool speed. This helps to prevent
backlashes.
To set the cast control, tie on your lure and reel it to the tip of the rod. Tighten the
knob until it feels snug. Push the thumb bar. Your lure should not move. Hold the rod at
a 2 o'clock position and slowly turn the knob counter-clockwise until the lure starts to
fall. Let the lure hit the ground and watch the spool. The spool should not spin more
than one revolution after the lure hits the ground. If it spins more than one revolution,
tighten the cast control knob and repeat the procedure. If the spool does not spin after
the lure hits the ground, the cast control is set too tight. Loosen the knob and repeat
the procedure.
™
Powerlock Instant Anti-Reverse
The Aggressor is equipped with a Powerlock instant anti-reverse system. This is a
special type of bearing that allows the handle to only turn forward. There is no play in
the handle, so you have complete control during the retrieve and no "loose" feeling,
which is important during stop-and-go retrieves.
Star Drag
Your reel has a powerful star drag for pinpoint settings. The drag washers provide a
smooth even ow of line when a sh surges to prevent the line from breaking. Even
when wet, these washers won't slip or grab. The star drag is the star-shaped wheel
located behind the reel handle. To adjust, simply turn forward to increase drag or turn
backward to decrease the amount of drag.
Sideplate Removal
To remove the palming sidecover, loosen the sidecover thumb screw located at the
top of the gear side until it is no longer threaded. Then pull out on the screw cap and
twist the palming sideplate downward. It can be removed by pulling straight outward.
Browning Fishing Reels:
®
Limited Warranty
Browning Fishing will repair or replace (at our discretion) any Browning Fishing
reel which proves to be defective in workmanship or materials within one year from
6.4:1
the original date of purchase. You must save your dated sales receipt for warranty
validation. This warranty gives you speci c legal rights, and you may have other
rights which vary from state to state or province to province.
For reels purchased through Bass Pro Shops ® catalogs or
Bass Pro Shops online:
• For reel replacement only: Return your reel postage prepaid with your dated
sales receipt to the Return Center address listed on your receipt.
• For reel repair only: Return your reel postage prepaid with a copy of your dated
sales receipt as proof of purchase and warranty validation to the Outdoor World
Rod & Reel Repair ® address below.
For reels purchased through Bass Pro Shops retail locations:
• For reel replacement only: Return your reel (postage prepaid if sending by
mail) along with your dated sales receipt to the store from which it was
purchased.
• For reel repair only: Return your reel postage prepaid with a copy of your dated
sales receipt as proof of purchase and warranty validation to the Outdoor World
Rod & Reel Repair address below.
Outdoor World Rod & Reel Repair
2300 E. Turner, Suite M
Springfield, MO 65803
This warranty does not cover lost parts, malfunctions, or damage due to abuse,
accidents, or normal wear. Failure to clean, lubricate and provide reasonable and
necessary maintenance will void the warranty. Repairs needed to your reel due to
abnormal use or modi cation, or after warranty expiration, are available for a
reasonable charge from Outdoor World Rod & Reel Repair, providing the reel is
returned postage paid.
Except to the extent prohibited by applicable law, there are no warranties or
conditions, express or implied, other than those expressly set out herein. Browning
Fishing shall not, under any circumstances, be liable for an amount greater than the
actual purchase price of the product nor for any special, incidental, or
consequential damages suffered or incurred in connection with the product and
Browning Fishing does not assume, and does not authorize any person to assume
for it, any obligation or liability other than those expressly set out herein.
Reel Care And Lubrication
Your new reel is designed to provide years of dependable service. But like any
other precision machine, periodic cleaning and maintenance is required for
continued peak performance.
Reels made today require both a lightweight oil and grease. Oil and grease should
be used sparingly; too much can have a negative impact on reel performance.
There are lightweight oils and greases made speci cally for shing reels that can
be found at basspro.com
As a rule of thumb, oils should be used to lubricate any moving part on the reel,
e.g. ball bearings, bushings, handle joints, bail springs, etc. Grease should be used
to lubricate the main drive gear and pinion gear.
We do not recommend using any multipurpose oils. Many of these oils have
properties that will attract dirt and dust to the internal parts. This may cause
excessive wear and reduce the life of the reel.
After each trip, the reel should be checked for dirt or sand. If it has been exposed
to saltwater, the spool should be removed and the entire reel rinsed in freshwater.
Dry with a soft cloth and lubricate the reel as described above.

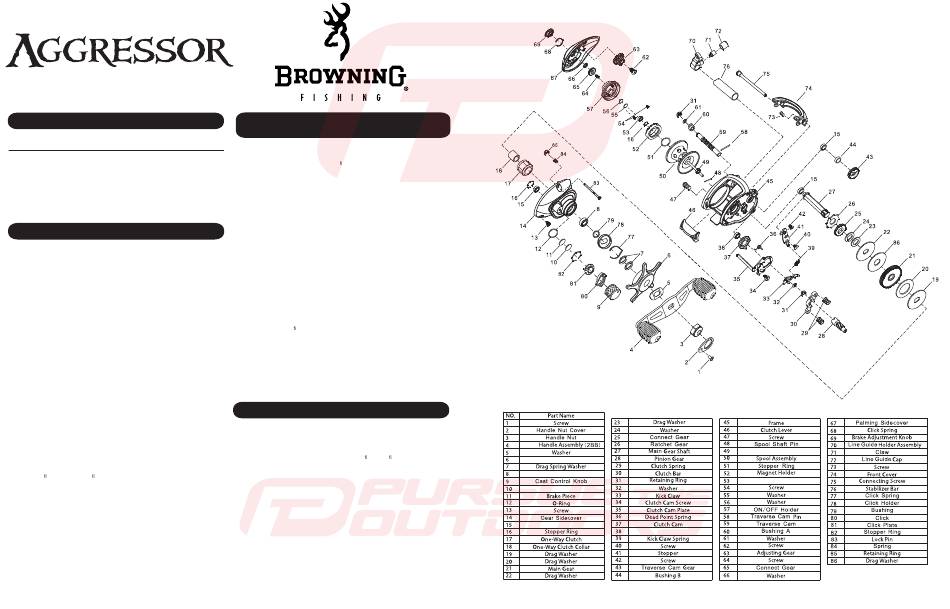

pursuetheoutdoors.com/schematics
Star Drag
(X2)
Ball Bearing
(X2)
Rubber Ring
Ball Bearings (3BB)
(X2) Ball Bearings
Ball Bearings
Ball Bearings
(X2)
