Lorex LW2300 Series Quick Start Manual

ULTRA DIGITAL WIRELESS VIDEO
RECORDING SYSTEM

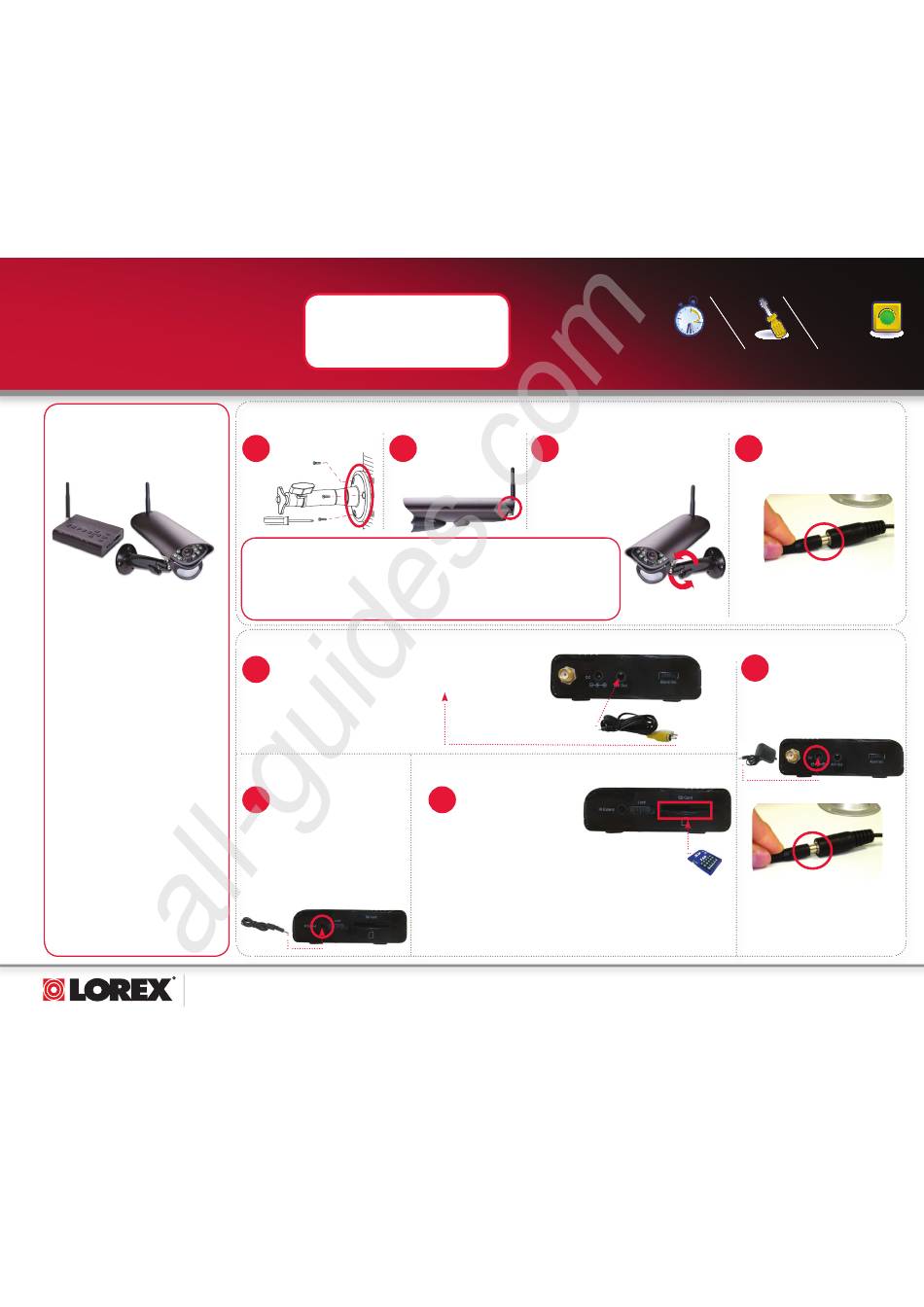

LW2300 SERIES - QUICk START GUIDE
Getting Started
*
This Ultra Digital Wireless Video
Recording System comes with the
following components:
• Color Outdoor Night Vision
Camera*
• Camera Stand*
• Wireless Receiver
• SD Memory Card
• Audio/Video Cable
• Remote Control
• Wall Mounting Kits*
• Wireless Antennas (for receiver
and camera)*
• Power Adapters (for receiver
and camera)*
• IR Extender
• Instruction Manual
* Number of cameras may vary
by model. Check your package
for specific content information.
www.lorexcctv.com
All manuals and user guides at all-guides.com
NOTE: AVOID INSTALLING IN A LOCATION
WHICH REQUIRES THE WIRELESS SIGNAL
TO PASS THROUGH CEMENT, CONCRETE
AND METAL STRUCTURES. THIS WILL
REDUCE THE TRANSMISSION RANGE.
A. Connect the Wireless Camera
Mount camera stand to
1 2
the wall.
NOTE: Before you install a camera, carefully plan where
and how it will be positioned, and where you will route the
cable that connects the camera to the power adaptor.
Before starting permanent installation, verify its
performance by observing the image on a monitor when
the camera is positioned where it will be permanently
installed.
B. Connect the Receiver to a TV/Monitor
Connect the Black cable from the AV cable to AV Out port on
1
the left panel of the receiver. Connect the Yellow video cable
and White audio cable (mono) to your TV or monitor.
OPTIONAL
Connect the included IR extender
4
to the IR Extend port on the right
panel of the receiver. Use the IR
extender if you want to hide the
receiver from plain sight. Place
the IR Extender for example in a
bookcase or above a cabinet and
still fully control the system using
the included remote control.
NOTE: IR extender box needs to
have direct line-of-sight with remote
control.
Attach the included Secure Camera to the mounting
3
Antenna to the camera stand. Adjust the angle of the camera
by screwing it on to the
until the desired view is set. Tighten
back as shown the thumbscrews to secure the
below.
desired camera position.
NOTE: Wireless cameras require a power
source to operate.
NOTE: When adding cameras that were not
included in the original box, you will need
to pair up the camera with the receiver.
Please refer to the Camera Pairing
Section of the User Manual.
2
Insert the included SD
card into theSD Card slot
on the right panel of the
receiver until you hear a
"click." Place the receiver
in a place that will have
clear
reception to your camera.
NOTE: The receiver is
compatible with most
major brands of SD cards
up to 16 GB.
Time
under 15 minutes under 30 minutes
Hand Tools
Time Tools Skills - Easy
Under 20 Minutes*
* Installation time may vary Hand Tools
based on application and
camera location
Skill Level
easy Connect one end of the camera Intermediate
4
Power Adapter to the camera
and the other end to an
electrical outlet.
Connect power adaptor to local
120V AC power outlet.
3
Connect one end of the
Receiver Power Adaptor to
the receiver and the other
end to an electrical outlet.
The receiver will power on
automatically.
ATTENTION: Make sure to first connect
and power on the camera before
powering on the receiver; this will
ensure a proper connection.
LW2300 Series Quick Start Guide_R1
Time
under 15 minutes und
Hand Tools
under 60 minutes over 60 minutes
Skill Level
Hardware
Hi Speed
Router
easy
Plug & Play connections,
On screen set up
advanced
Page 1
