Summary of Contents for Chamberlain Whisper Drive WD922KC

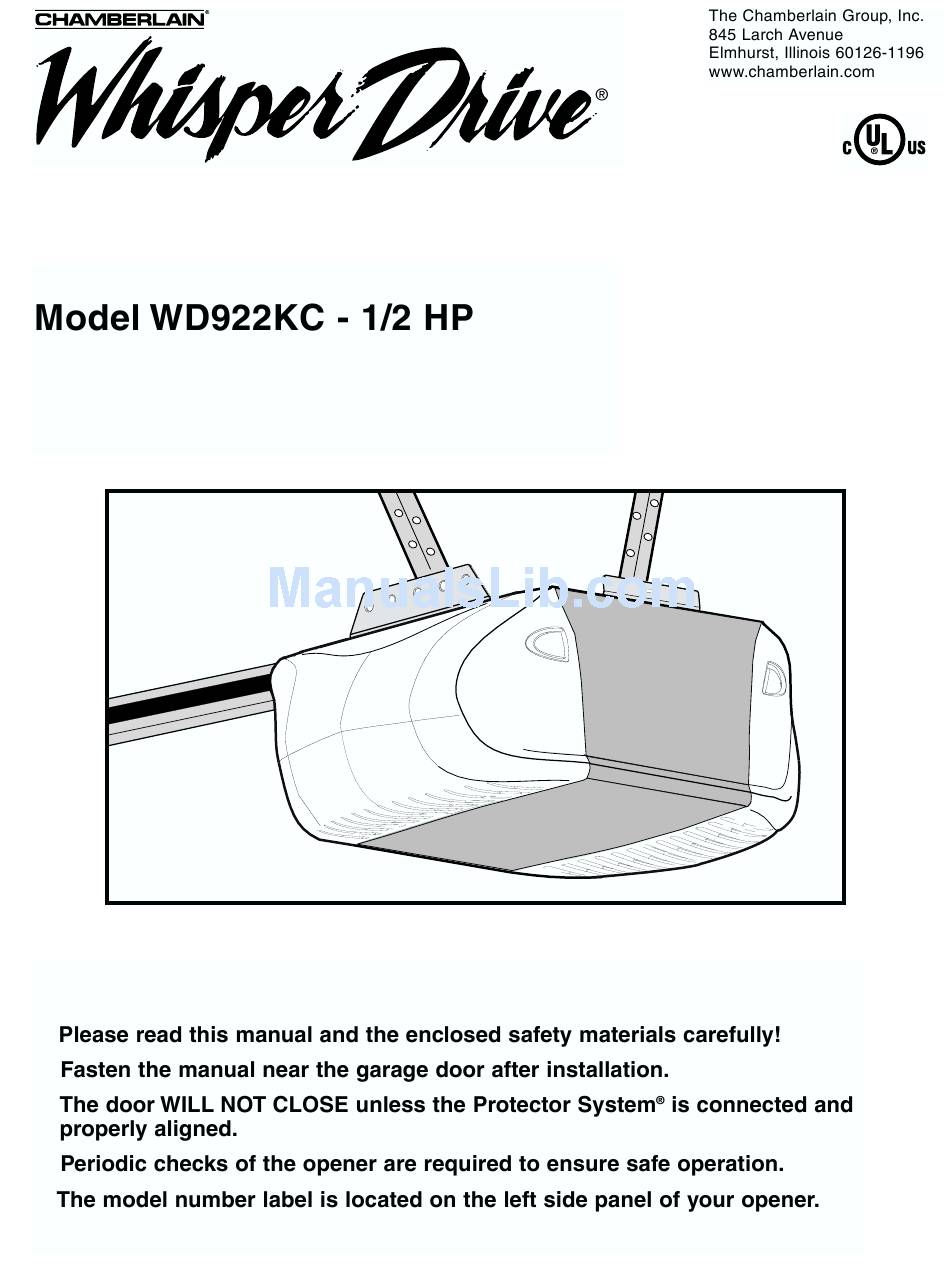

  • Page 1 GARAGE DOOR OPENER For Residential Use Only Owner’s Manual...
  • Page 2 TABLE OF CONTENTS Introduction Assembly Installation INTRODUCTION Safety Symbol and Signal Word Review Pages 2-7 Adjustment Operation Pages 8-11 Programming Pages 11-27 Repair Parts Accessories Repair Parts and Service Warranty Pages 28-30 Pages 31-34 Pages 35-36 Pages 37-38 serious injury or death...
  • Page 3 Preparing your garage door Tools needed...
  • Page 4 Planning...
  • Page 5 Planning (Continued)
  • Page 6 Carton Inventory ✚ ✚...
  • Page 7 Hardware Inventory...
  • Page 8: Assembly Step

    ASSEMBLY STEP 1 Assemble the T-Rail and Attach the Belt Pulley Bracket NOTE: If T-rail is not assembled exactly as shown, trolley will not travel smoothly along length of rail or it will hit against nuts. NOTE: When tightening the bolts, be sure to keep bracket parallel to the rail.
  • Page 9: Install The Trolley

    ASSEMBLY STEP 2 Install the Trolley NOTE: If trolley hits against any nuts on the T-rail, the bolts and nuts were attached from the wrong side and must be repositioned. Review Assembly Step 1. ASSEMBLY STEP 3 Fasten the T-Rail to the Motor Unit NOTE: This bolt prevents trolley over-travel.
  • Page 10 ASSEMBLY STEP 4 Install the Belt and Set the Tension...
  • Page 11: Attach The Belt Cap Retainer

    ASSEMBLY STEP 5 Attach the Belt Cap Retainer You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section. INSTALLATION...
  • Page 12: Installation Step

    INSTALLATION STEP 1 Determine the Header Bracket Location Proceed to Step 2, page 14.
  • Page 13 NOTE: Proceed to Step 2, page 14.
  • Page 14 INSTALLATION STEP 2 Install the Header Bracket...
  • Page 15 INSTALLATION STEP 3 Attach the T-Rail to the Header Bracket NOTE:...
  • Page 16 INSTALLATION STEP 4 Position the Opener...
  • Page 17 INSTALLATION STEP 5 Hang the Opener...
  • Page 18: Install The Door Control

    INSTALLATION STEP 6 Install the Door Control NOTE: NOTE: (Standard installation only) NOTE: NOTE:...
  • Page 19 INSTALLATION STEP 7 Install the Lights NOTE: INSTALLATION STEP 8 Attach the Emergency Release Rope and Handle NOTE:...
  • Page 20 INSTALLATION STEP 9 Electrical Requirements...
  • Page 21 INSTALLATION STEP 10 Install The Protector System ®...
  • Page 24 INSTALLATION STEP 11 Fasten the Door Bracket...
  • Page 26 INSTALLATION STEP 12 Connect Door Arm to Trolley...
  • Page 28 ADJUSTMENT STEP 1 Adjust the UP and DOWN Travel Limits...
  • Page 29 ADJUSTMENT STEP 2 Adjust the Force...
  • Page 30 ADJUSTMENT STEP 3 Test the Safety Reversal System ADJUSTMENT STEP 4 Test the Protector System ®...
  • Page 31: Operation

    OPERATION Using Your Garage Door Opener ✚ ✚ ✚ if you activate them until down travel is complete. Programming The hand-held Remote Control: The wall-mounted Door Control: The Keyless Entry (See Accessories): Programming. ✚...
  • Page 32 Using the Wall-Mounted To Open the Door Manually Door Control lockout feature To control the opener lights:...
  • Page 33 Having a Problem? Care of Your Opener Installation Step 6...
  • Page 34 Having a Problem? (Continued) Adjustment Step 2. Adjustment Step 1. Repeat the safety reverse test after the adjustment is complete. Repeat the safety reverse test after any adjustment of door arm length, close force or down limit. Installation Step 10. Step 2 Repeat the safety reverse test after the adjustment is complete.
  • Page 35 PROGRAMMING ✚ To Add an Additional Hand-held Remote Control To Erase All Codes From Motor *Multi-Function Remotes Unit Memory ✚ ✚...
  • Page 36: To Add Or Change A Keyless Entry Pin

    To Add or Change a Keyless Entry PIN Your new Keyless Entry must be programmed to operate your garage door opener. This method requires two people if the Keyless Entry is already mounted outside the garage. ✽ close ✽...
  • Page 37: Repair Parts

    REPAIR PARTS Rail Assembly Parts Installation Parts...
  • Page 38 Motor Unit Assembly Parts...
  • Page 39 ACCESSORIES ✚ Required ✚ ✚...
  • Page 41 OUVRE-PORTE DE GARAGE Pour résidences seulement MANUEL D’INSTRUCTIONS...
  • Page 42 TABLE DES MATIÈRES Introduction Sur le montage Sur la pose INTRODUCTION Revue des symboles de sécurité et des mots de signalement Pages 2-7 Réglages Fonctionnement Pages 8-11 Programmation Pages 11-27 Pièces de réparation Accessoires Pièces de réparation et service Garantie Pages 28-30 Pages 31-34 Pages 35-36...
  • Page 43 Préparation de votre porte de garage Outils nécessaires...
  • Page 44 Planification...
  • Page 45 Planification (suite) PORTE FERMÉE PORTE FERMÉE...
  • Page 46 Inventaire de la boîte d’emballage ✚ ✚...
  • Page 47 Inventaire des fixations...
  • Page 48: Montage

    MONTAGE – 1 OPÉRATION Assemblage du rail en T et fixation du support de poulie de courroie REMARQUE: Si le rail en T n’est pas assemblé exactement comme illustré, le chariot ne se déplacera pas régulièrement sur la longueur du rail ou il se heurtera contre les écrous.
  • Page 49 MONTAGE – 2 OPÉRATION Pose du chariot chariot vient se frapper contre tout écrou situé sur le rail en T, ceci signifie que les boulons et les écrous étaient fixés depuis le mauvais côté et qu’ils doivent être replacés. Se reporter à la première opération de montage.
  • Page 50 MONTAGE – 4 OPÉRATION Pose de la courroie et réglage de la tension...
  • Page 51 MONTAGE - 5 OPÉRATION Attachement du capuchon de maintien de la courroie Le montage de l'ouvre-porte de garage est maintenant terminé. Lire les avertissements suivants avant de procéder avec l'installation. SUR LA POSE...
  • Page 52 POSE - 1 OPÉRATION Déterminer l'emplacement du support de linteau Passer à la 2 opération, page 14.
  • Page 53 REMARQUE: Passer à la 2 opération, page 14.
  • Page 54 POSE - 2 OPÉRATION Pose du support de linteau...
  • Page 55 POSE - 3 OPÉRATION Fixation du rail sur le support de linteau REMARQUE:...
  • Page 56 POSE - 4 OPÉRATION Positionnement de l'ouvre-porte...
  • Page 57 POSE - 5 OPÉRATION Accrochage de l'ouvre-porte...
  • Page 58 POSE - 6 OPÉRATION Pose de la commande de porte REMARQUE: REMARQUE: (Installation standarde seulement) REMARQUE : REMARQUE:...
  • Page 59 POSE - 7 OPÉRATION Pose des ampoules REMARQUE: POSE - 8 OPÉRATION Pose de la corde et de la poignée de déclenchement d’urgence REMARQUE:...
  • Page 60 POSE - 9 OPÉRATION Exigences électriques BRANCHEMENT ÉLECTRIQUE PERMANENT...
  • Page 61 POSE - 10 OPÉRATION Pose du Système Protector Faisceau du détecteur à 6 po maximum au-dessus du plancher Aire de protection du faisceau du lumière invisible ® Faisceau du détecteur à 6 po maximum au-dessus du plancher...
  • Page 62 MONTAGE SUR GUIDES DE PORTE (côté droit) MONTAGE MURAL (côté droit) MONTAGE AU SOL (côté droit)
  • Page 64: Fixation Du Support De Porte

    POSE - 11 OPÉRATION Fixation du support de porte DES RENFORTS HORIZONTAUX ET VERTICAUX SONT REQUIS DANS LE CAS D'UNE PORTE DE GARAGE LÉGÈRE (EN FIBRE DE VERRE, EN ALUMINIUM, EN ACIER, EN PANNEAUX DE VERRE, ETC.). (NON FOURNIS)
  • Page 66 POSE - 12 OPÉRATION Fixation de la biellette au chariot...
  • Page 68 RÉGLAGES - 1 OPÉRATION Réglage des courses d’ouverture et de fermeture...
  • Page 69 RÉGLAGES - 2 OPÉRATION Réglage de la force...
  • Page 70 RÉGLAGES - 3 OPÉRATION Essai du système d’inversion de sécurité RÉGLAGES - 4 OPÉRATION Essayer le système de protection ®...
  • Page 71 FONCTIONNEMENT CONSERVER CES INSTRUCTIONS. Utilisation de votre ouvre-porte de garage ✚ ✚ ✚...
  • Page 72 Utilisation de la commande de porte à Ouverture manuelle de la porte montage mural...
  • Page 73: Entretien De L'ouvre-Porte De Garage

    ENTRETIEN DE L’OUVRE-PORTE DE GARAGE COMMANDES DE COURSE (panneau gauche) COMMANDES DE FORCE (panneau droit) Défauts de fonctionnement...
  • Page 74 Défauts de fonctionnement (suite)
  • Page 75 PROGRAMMATION ✚ Pour ajouter une télécommande à main supplémentaire Pour effacer tous les codes de la *Télécommandes à 3 canaux mémoire du moteur ✚ ✚...
  • Page 76 Pour ajouter ou modifier un NIP d’entrée sans clé ✽ ✽...
  • Page 77: Pièces De Réparation

    PIÈCES DE RÉPARATION Pièces d’assemblage des rails Pièces pour la pose...
  • Page 78 Pièces d’assemblage du moteur Contact de INTERRUPTEUR DE (fermeture) FIN DE COURSE brun Pignon menant Contact de fin Contact Fil jaune de course central (d'ouverture) Fil gris...
  • Page 79 ACCESSORIES ✚ ✚ ✚...
