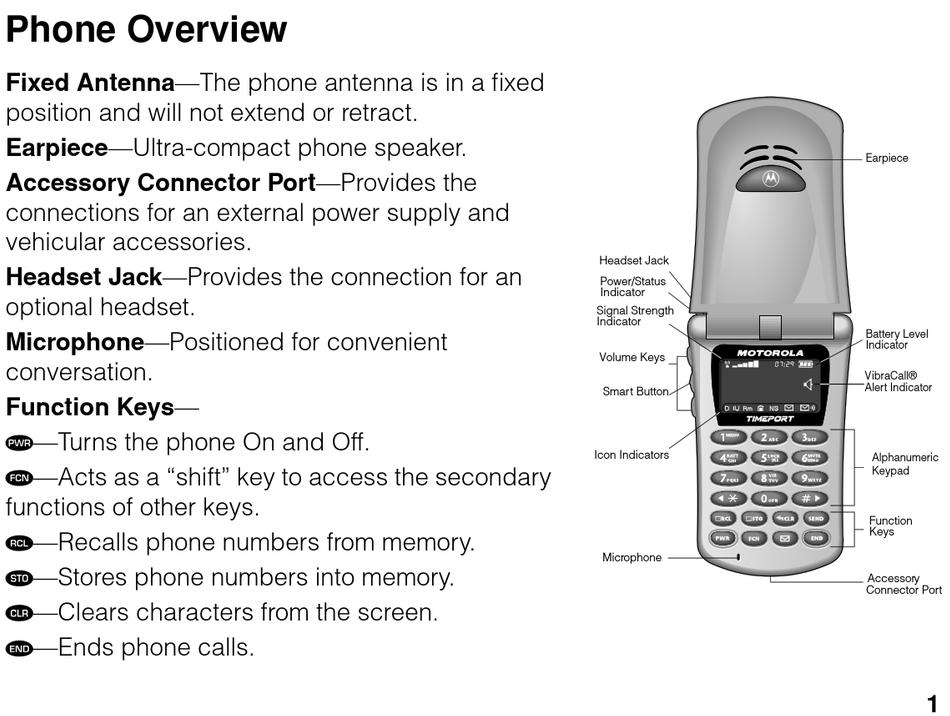

Phone Overview
Fixed Antenna—The phone antenna is in a fixed
position and will not extend or retract.
Earpiece—Ultra-compact phone speaker.
Accessory Connector Port—Provides the
connections for an external power supply and
vehicular accessories.
Headset Jack—Provides the connection for an
optional headset.
Microphone—Positioned for convenient
conversation.
Function Keys—
¡
—Turns the phone On and Off.
ƒ
—Acts as a "shift" key to access the secondary
functions of other keys.
‰
—Recalls phone numbers from memory.
¬
—Stores phone numbers into memory.
Ç
—Clears characters from the screen.
º
—Ends phone calls.
Headset Jack
Power/Status
Indicator
Signal Strength
Indicator
Volume Keys
Smart Button
Icon Indicators
Microphone
Earpiece
Battery Level
Indicator
VibraCall®
Alert Indicator
Alphanumeric
Keypad
Function
Keys
Accessory
Connector Port
1
Advertisement
Related Manuals for BMW Motorola CPT8000
Summary of Contents for BMW Motorola CPT8000
- Page 1 Phone Overview Fixed Antenna—The phone antenna is in a fixed position and will not extend or retract. Earpiece—Ultra-compact phone speaker. Earpiece Accessory Connector Port—Provides the connections for an external power supply and vehicular accessories. Headset Jack Headset Jack—Provides the connection for an Power/Status Indicator optional headset.
- Page 2 After pressing the Smart Button, the volume keys also scroll through memory entries and menu features Note: To prevent damage to the phone, BMW recommends that the handset flip be closed whenever it is placed in the eject box. As a result, the keypad on the Portable...
-
Page 3: Removing A Main Battery
Installing a Main Battery 1. Set the edge of the battery opposite the release latch into the cover. 2. Press the release latch side of the battery into the cover until the latch clicks into place. Removing a Main Battery 1. - Page 4 Attaching the Handset to the Vehicle (In-Vehicle Mode) Hold the handset with the keypad up (or BMW logo up, if the flip is closed) and align the connector so that the white letters (“Top”) on the connector are also up. Push the connector gently into place in one smooth motion.
- Page 5 Basic Operating Instructions Note: All instructions from the handset assume the portable is not connected to the coilcord. Turning Your Phone On 1. Open your phone to expose the keypad. ¡ 2. Press once to turn the phone on. Turning Your Phone Off ¡...
-
Page 6: Recalling From Memory
Recalling From Memory • Recall the last number dialed by pressing ‰. Recall from the stored memory by name or by location using the Phone Book features. Storing Names and Numbers 1. Enter the phone number you want to store. ¬... - Page 7 4. You will see . Enter a name to identify the phone number. (See the Enter Name next page for details on entering names.) 5. Press A or ¬ when you finish entering the name. Your phone confirms your entry by displaying the location of where the information entered is now stored.
-
Page 8: Entering A Name
3. Continue with step 5 on page 7 when you are finished entering the name. BMW Assistance Dialing If you need to dial the BMW ASSIST Center from the portable, it can either be stored to a memory location as you would any other phone number, or dialed manually. The...
