Cecilware FW-25 Operation Manual

Electric counter top warmer

Advertisement

Quick Links

ELECTRIC COUNTER TOP
WARMER
OPERATION MANUAL
FW-25
FW-25WT

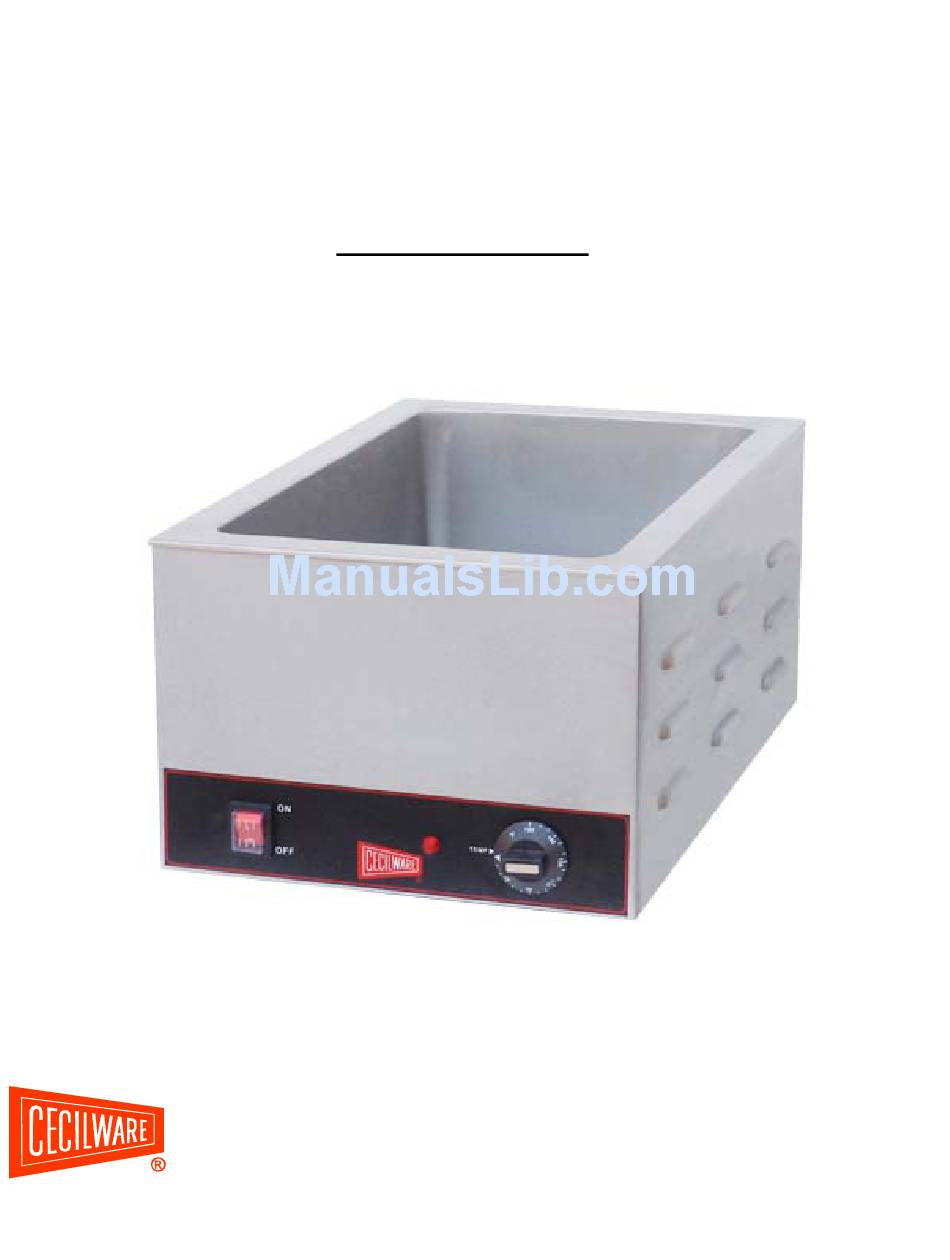

FW-25 Shown
CECILWARE CORPORATION
th
43-05 20
AVENUE, LONG ISLAND CITY, NEW YORK 11105-1295
718-932-1414
FAX 718-932-7860
www.cecilware.com
NN56A 5/05

Advertisement

Table of Contents
loading

Summary of Contents for Cecilware FW-25

  • Page 1 ELECTRIC COUNTER TOP WARMER OPERATION MANUAL FW-25 FW-25WT FW-25 Shown CECILWARE CORPORATION 43-05 20 AVENUE, LONG ISLAND CITY, NEW YORK 11105-1295 ■ 718-932-1414 FAX 718-932-7860 www.cecilware.com NN56A 5/05...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ... page 2 Packaging ... page 2 Installation ... page 2 Operation ... page 2 Cleaning, Care and Maintenance ... page 3 Safety ... page 3 Trouble Shooting ... page 3-4 Compliance ... page 4 Electrical Diagram ... page 5 Explosion View ...
  • Page 3: Introduction

    * The machine has not been handled and cleaned correctly. Packaging Cecilware prides itself on quality and service, ensuring that at the time of packing all products are supplied fully functional and free of damage. Provided in this package are the following:...
  • Page 4: Cleaning, Care And Maintenance

    Limit is tripped, please call a Recommended Qualified Service Technician to check over the warmer, repair if needed and reset the Hi Limit. Trouble Shooting If your Cecilware Warmer does not operate, please check the following before placing a service call. Electric Counter Top Warmer Problem 1.
  • Page 5: Compliance

    Note: All Cecilware products are tested prior to packing. Compliance Cecilware products have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities. As testimony to such compliance, Cecilware products carry the following marks/symbols: Cause 1.
  • Page 6: Electrical Diagram

    Electrical Diagram Model: FW-25, FW-25WT hi-limit on/off switch thermostat The above circuit diagram has been provided to assist qualified technicians. A Recommended Qualified Service Technician should carry out repairs if needed. Do not remove any components or service panels on this product.
  • Page 7: Explosion View

    Explosion View FW-25 FW-25WT...
  • Page 8: Spare Parts List

    HI-LIMIT CORD & PLUG DRIP TAP FLEXIBLE HOSE CONNECTION STUFFING PLUG *NA = not available except by special order. Specifications MODEL VOLTAGE 120V FW-25 50/60 HZ 120V FW-25WT 50/60 HZ DIMENSIONS (INCHS) POWER 1500W 14 3/8”×23 1/2”×10 1/2” 1500W 14 3/8”×25 3/4”×10 1/2”...
  • Page 9 CECILWARE CORPORATION 43-05 20 AVENUE, LONG ISLAND CITY, NEW YORK 11105-1295 ■ 718-932-1414 FAX 718-932-7860 www.cecilware.com...
