Broan NuTone Overture 1103434 Manual

INCLUDED
Wall Control Part No. 1103434
User Manual
Quick Start Guide
Note: Wall plate not included – Use Broan Part No.
S97012925 (or equivalent)
CONTROL SPECIFICATIONS
• cULus Listed
• 120 VAC 60 Hz Line Power
• Maximum load ½ HP Motor, 15A Resistive,
15A Inductive, 3A Incandescent, 0.6A Electronic Ballast
• When used in combination with fan/light fixtures
that are switched together, the device is rated for the
following lamps: 360W Incandescent, 72W LED, or
72W CFL
• For Control of Electronic Ballast, CFLs, LED and LED
lamps or the equivalent
• Typical Wire Sizes: 12AWG (MAX) or 14AWG solid
copper wire rated for at least 90°C
• Operating temperature: 32-95°F (0-35°C)
• Purpose of Control: Operating Control
• Rated impulse voltage: 2500 V
SAFETY
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Before installing the wall control, switch power off at
the service panel and lock the service disconnecting
means to prevent power from being switched on
accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel. CAUTION:
Risk of Electric Shock - More than one disconnect
switch may be required to de-energize the equipment
before servicing.
2. All electrical work must be done in accordance with
local codes, ordinances, or National Electrical Code,
as applicable, including fire-rated construction codes
and standards. FOR SAFETY, THIS PRODUCT MUST
BE GROUNDED. If you are unfamiliar with methods
of installing electrical wiring, secure the services of a
qualified electrician.
3. Use copper wire only.
4. WARNING: This device shall not be used in combination
with a wall switch controlling a receptacle.
5. Install only in a UL Listed junction box sized
2.0 x 3.0 x 3.0 in. (50.8 x 76.2 x 76.2 mm) or larger, with
a minimum volume of 18.0 in 3 (295 CM
3 3
wiring and 20.0 in (328 CM ) for 12AWG wiring.
6. This control requires a neutral wire for operation.
7. When cutting or drilling into wall or ceiling, do not
damage electrical wiring or other hidden utilities.
8. To prevent serious injury from electrical shock or
damage to electrical components - DO NOT WIRE
HOT!
9. The automatic operation feature is Type 1 action,
according to UL 60730-1.
10. The enclosure protection rating is IP30.
11. The product is Pollution Degree 2, which is intended
to be used in a household environment or similar.
12. The devices are not intended for use in locations
where the temperature may be less than actual room
conditions, such as unheated warehouses or garages.
13. Avoid water and wet locations. Keep the device
away from water, fire, excessive humidity, or hot
environments.
14. Do not use the device where wireless devices are
not allowed.
15. Do not attempt to disassemble, repair, or modify
the device. Don't disassemble the product, or make
repairs yourself. You run the risk of electric shock
and voiding the limited warranty. If you need service,
please contact us.
16. Note: When power is applied, the Wall Control 1103434
may require approximately 30 seconds to boot up and
be ready to function.
17. Please read and follow the above safety information
when operating the device. We cannot guarantee that
no accidents or damage will occur due to the improper
use of the device. Please use this product with care
and operate at your own risk.
Warranty is void if miswired.
Overture
INSTALLATION
NOTE: This control requires a 120 VAC source (hot and
neutral) in the switch box to operate the wall control.
1. Turn off the power and lockout the service panel before
wiring the control.
2. Location Notes:
a. For bathroom applications, the control should
be placed at a level to detect humidity. Placing the
control directly above a heater or near drafts is NOT
recommended.
b. For bathroom applications, the Wall Control should
be placed in close proximity to the shower/tub/sink/
etc. (the main source of humidity/steam/VOC) and at
sink height or higher for effective monitoring of your
indoor air quality.
c. Place your Wall Control within the range of your
Wi-Fi router or access point (approximately 100 feet).
d. Avoid physical obstructions and radio interference
in the surrounding area.
3. Install the wall control in at least a 3" deep switch
box for #14 AWG wire or at least a 3 ½" deep switch
box for #12 AWG wire. The control can be installed in
either a metal outlet box or a plastic outlet box.
4. Attach the incoming power line and ventilator power
line to switch box. It may be necessary to use two
side knockouts for some applications. Use proper
connectors. Provide 6" leads inside box and ventilation
product.
5. Make electrical connections following the diagrams
provided below or in the Broan-NuTone Overture
app. Use wire nuts. Make sure both the control and
the ventilator are properly grounded. Wire terminals
accept up to #12 AWG MAX solid wire.
a. Loosen screw terminals.
b. Strip wire 0.275" and insert the bare wire into the
screw terminal opening.
c. Tighten the terminal screw, making sure wire
remains under the clamp. Torque the terminal screws to
3.5 in-lbs (.4 N-m).
d. Note: Do not reuse wire formed into a "J" loop or
wrapped around screw threads. The screw terminal
is designed for the straight insertion of stripped wire
for proper mechanical and electrical connection.
6. Tuck wires in and fasten control to switch box using
attached screws. Verify wall control orientation before
installation. Note "TOP" direction shown on the wall
control label.
7. Attach switch plate (not included) using color-matched
oval head screws.
8. Download the Broan-NuTone Overture
3 ) for 14AWG
step set-up instructions to connect your Wall Control
to the Overture
Store.

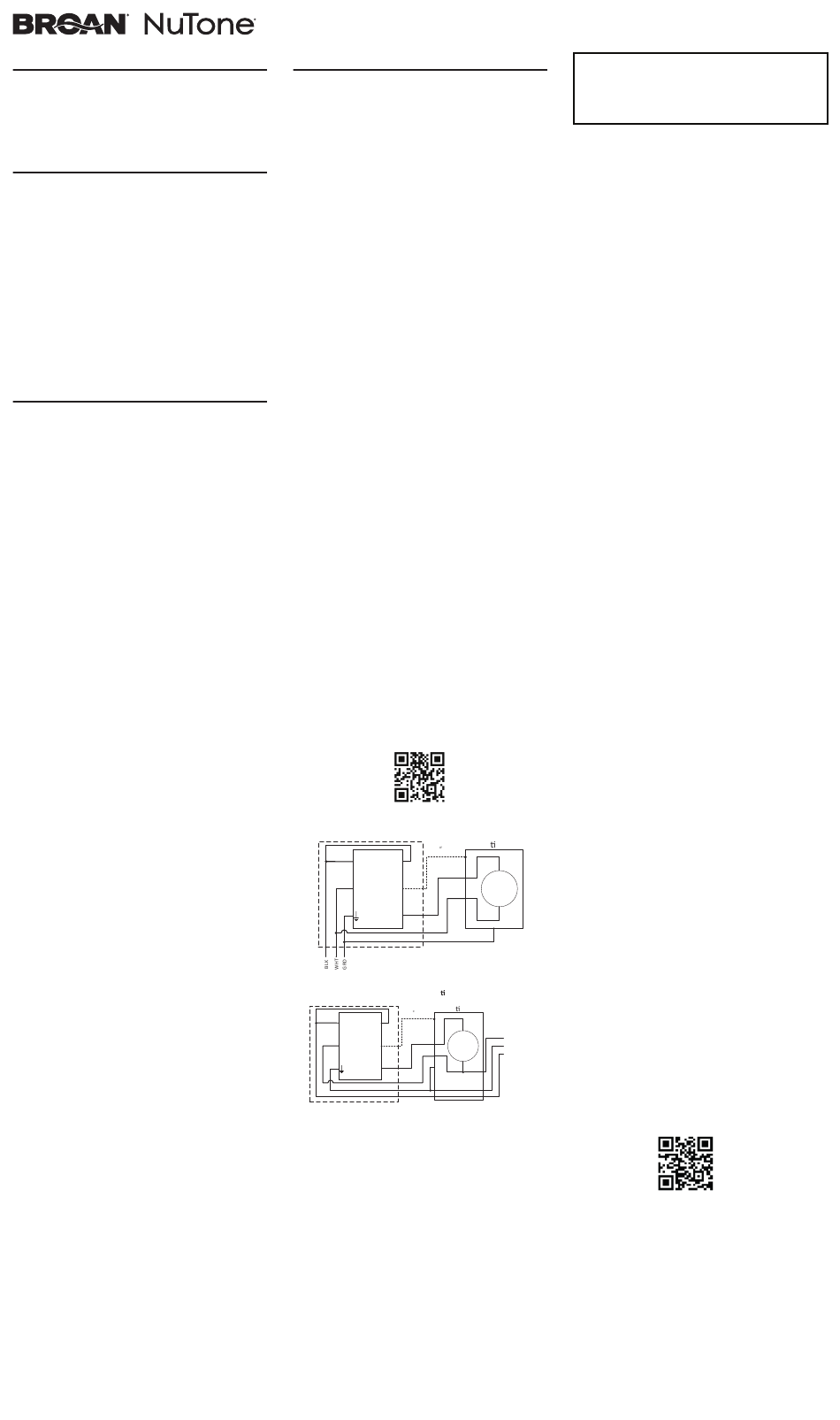

Switch Box
BLK
L L
BIAQWC100P BIAQWC100P
WHT
N N Overture Overture Wall
120 VAC
Power Supplied to Ven lator
Switch Box
L L
BIAQWC100P BIAQWC100P
WHT
N N Overture Overture Wall TM
Control Control
TM
WALL CONTROL
TM App for step by
TM
system. Scan QR code to go to App
Power Supplied to Switch Box
Ven lator
Op onal :
M ode l De pendent
IN IN RED
BLK
M
TM S2
Wall
Control Control WHT
S1
GRD
Ven lator
Op onal :
M ode l De pendent
IN IN RED
WHT
BLK
M 120 VAC
Wall S2 GRD
LIN E IN
BLK
WHT
GRD
S1
For Warranty Statement, Service Parts, Technical
Support, or to Register your product, please visit our
website or call: In the United States - Broan-NuTone.com
800-558-1711. In Canada - Broan.ca or NuTone.ca
877-896-1119
Regulatory Information
The Overture TM Wall Control 1103434 is certified to
comply with applicable FCC and IC rules and regulations
governing RF and EMI emissions. Refer to 1103434.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
FCC Notice
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions
may cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
TM
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician to help.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
ISED Compliance Statement
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada's licence-exempt RSS(s).
Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including
interference that may cause undesired operation of
the device.
The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Broan-NuTone LLC is under license.
Other trademarks and trade names are those of their
respective owners.
The Android robot is reproduced or modified from work
created and shared by Google and used according to
terms described in the Creative Commons 3.0 Attribution
License.
Regulatory ID for 1103434 Overture
FCC ID: 2ADLL-1103434
IC: 2143B-1103434
Made in China to the quality standards and
specifications of
Broan-Nutone LLC Hartford, Wisconsin
www.broan-nutone.com 800-558-1711
Venmar Ventilation ULC Drummondville Quebec Canada
www.broan.ca or www.nutone.ca 877-896-1119
For more information and user manuals scan QR code
below.
The distance between user and device should be no less
than 20cm.
la distance entre l'utilisation et l'appareil ne doit pas
être inférieure à 20 cm.
TM Wall Control
1103414A
