NAD CI 16-60 Quick Setup Manual

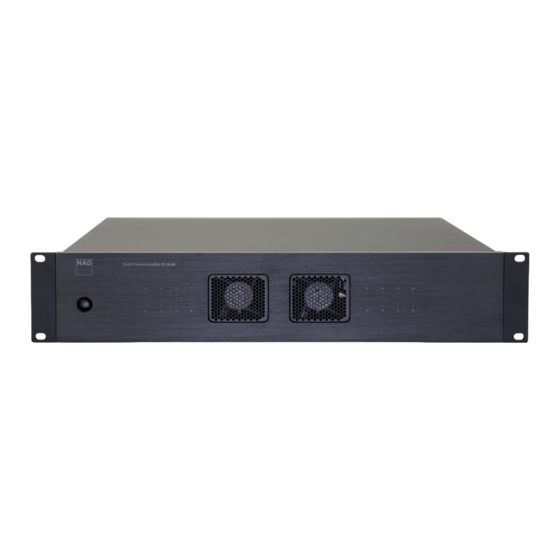

CI 16-60 Multi-Channel Amplifier
®

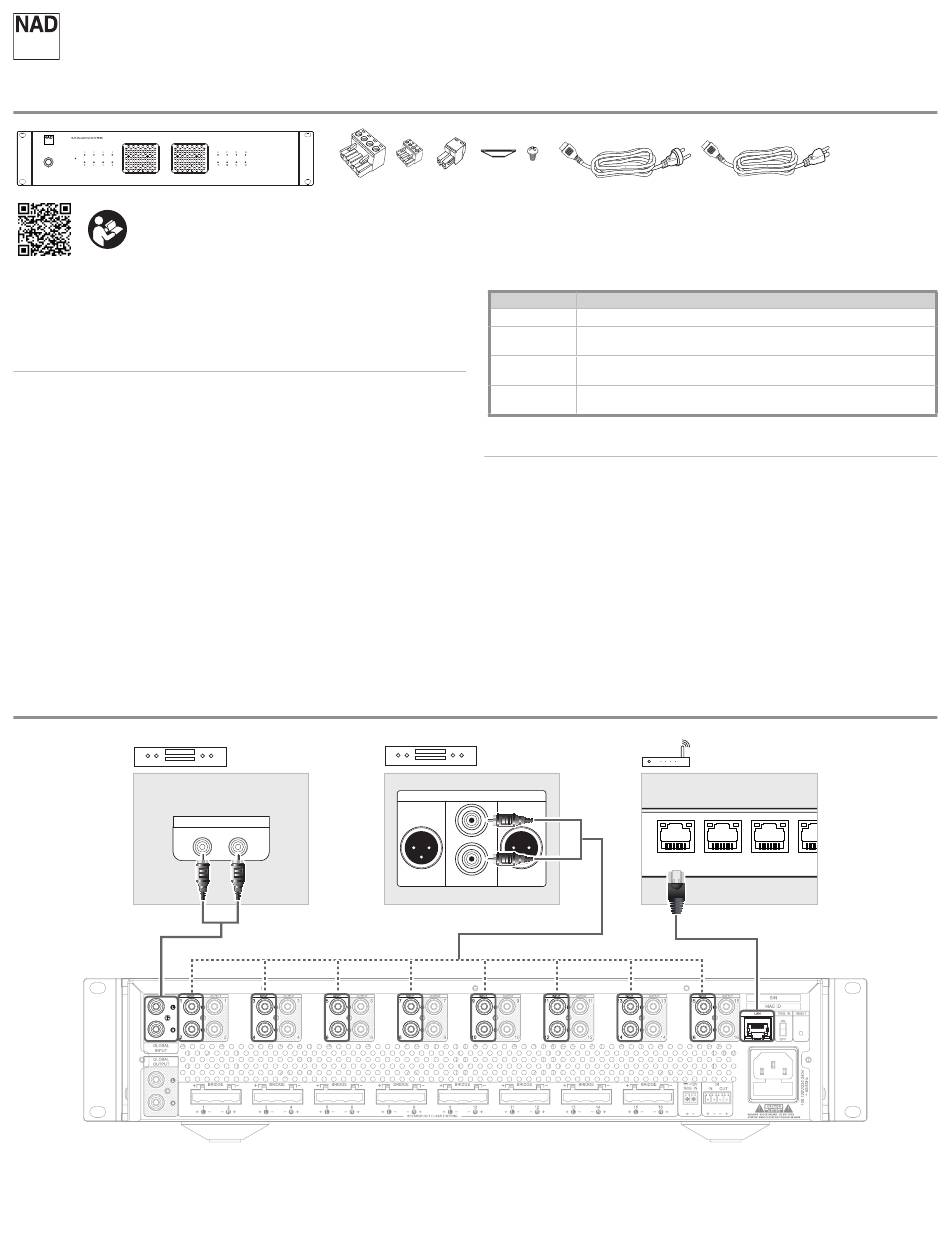

Quick Setup Guide
nadelectronics.com/product/ci-16-60-multi-channel-amplifier
support.nadelectronics.com
GUIDELINE FOR NETWORK SETUP CONNECTION
This guideline is applicable to PC, MAC or smartphone control devices. Adapt the guidelines according to your
control device.
1 Use an Ethernet cable (not supplied) to connect CI 16-60's LAN port to your Wired network or router.
IMPORTANT NOTES
• For wired connection to be established, ensure that a broadband router that supports Ethernet is setup and
available.
• Ensure that CI 16-60 and the control device (PC, Mac or smartphone device) are connected to the same network.
• Use the information in the rear panel MAC ID sticker to identify the CI 16-60 from your network.
2 Power up your CI 16-60. The CI 16-60 will not communicate with the network when in Eco standby mode.
3 Use any network IP scanner to find your CI 16-60's Network ID (listed as the product name (NAD CI 16-60)
immediately followed by the last six digits in the MAC (Machine Access Control) address
(example: NAD CI 16-60_123456). Note also the corresponding IP address assigned by the network.
4 Type the IP address into your control device's web browser to access your CI 16-60's User Interface (UI).
5 Configure your CI 16-60's Identification, Input/Output and Settings parameters via User Interface.
FIRMWARE UPGRADE PROCEDURE
1 Upon gaining access to your CI 16-60's User Interface, check immediately for any firmware update by selecting
"Check For Updates" from the "Settings" tab.
2 Follow the firmware upgrade prompt instructions to complete the upgrade process.
1.
x8
© NAD CI 16-60
x1
AUDIO OUT
L R
x1 x1 x4 x4
POWER OPTIONS
SETTING DESCRIPTION
Power button Press power button to set unit to operating or standby mode.
Unit is always in operating mode. Shut down power by disconnecting unit's AC plug from the mains power
Always On
source.
Presence or absence of +12V DC supply from compatible devices to rear panel +12V TRIGGER IN will remotely
12V Trigger
switch the unit to operating or standby mode.
Unit will instantaneously turn from standby to operating mode if it senses any input signal (approximately
Signal Sense
above 2 mV RMS input) applied through any of the GLOBAL or LINE INPUT sockets.
IMPORTANT
CI 16-60 factory default setting for Eco Mode is ON. With "Power Mode" set to "Signal Sense" and "Eco Mode" set
to "ON", CI 16-60 will automatically go to Eco standby mode after 20 minutes of no active audio source input.
x1/x2/x3...x8
2 CHANNEL AUDIO OUT
R BALANCED L BALANCED
L
DISPLAY USB USB
R
UNBALANCED
LAN 1 LAN 2 LAN 3 LAN 4
© NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60 © NAD CI 16-60
MODEM USB
