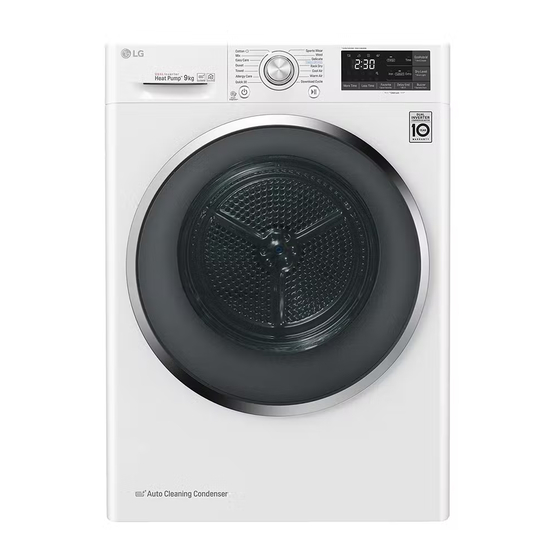

OWNER'S MANUAL
DRYER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
EN ENGLISH
VD-H9066WS
MFL71424370
Rev.01_070220
Copyright © 2020 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG VD-H9066WS

Summary of Contents for LG VD-H9066WS

  • Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. EN ENGLISH VD-H9066WS www.lg.com MFL71424370 Rev.01_070220 Copyright © 2020 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Operation Overview..................14 Preparing the Clothes..................15 Control Panel ....................17 Programme Table ....................19 Option Programmes and Extra Functions ............23 SMART FUNCTIONS LG ThinQ Application ..................26 Smart Diagnosis ....................28 MAINTENANCE Cleaning after Every Dry .................30 Cleaning the Appliance Periodically ..............32 Care in Cold Climates..................35 TROUBLESHOOTING Before Calling for Service................37...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risks.
  • Page 4 SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with the appliance. • Do not dry unwashed items in the appliance. • Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. •...
  • Page 5 SAFETY INSTRUCTIONS could result in fire. Clothes not removed from the appliance after drying could result in fire. Remove clothes immediately after drying, and then hang or lay the clothes flat to cool. • This appliance is intended to be used in household only. Maximum Capacity The maximum capacity in some cycles for clothes to be dried is 9 kg (Dry).
  • Page 6 SAFETY INSTRUCTIONS • This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. • This appliance is equipped with a power cord having an equipment- grounding conductor and a grounding power plug.
  • Page 7 SAFETY INSTRUCTIONS • In case of flood, disconnect the power plug and contact the LG Electronics customer information centre. • Do not push down on the door, when the appliance door is open. • Do not touch the door during a high temperature programme.

  • Page 8: Installation

    Front View Water Container Control panel Door Drain Tube Available Accessories Please contact LG Electronics Customer Information Centre or visit the LG Website at http://www.lg.com for purchase. Condensing Drain Hose and Hose Holder Dry Rack Stacking Kit NOTE • The included accessories vary depending on the model you purchased.

  • Page 9: Installation Place Requirements

    INSTALLATION Specifications Asterisk(s) means model variant and can be varied (0-9) or (A-Z). Model VD-H9066WS Power supply 220 - 240 V~, 50 Hz Dimension (Width X Depth X Height) 600 mm X 690 mm X 850 mm Product weight 56 kg Allowable temperature 5 - 35 ℃...

  • Page 10: Leveling The Appliance

    INSTALLATION Leveling the Appliance • Cupboard - Cupboard door must have 2 (louvered) Checking Leveling opening, each have a minimum area of 387 , located 8 cm from bottom and top of the Leveling the appliance prevents unnecessary noise door. and vibration.
  • Page 11 INSTALLATION • Before removing the hinge screws, have an • There are 6 screws on the front and 2 screws assistant support the weight of the door. The on the side. door could fall on the floor due to the weight of the door.

  • Page 12: Stacking Instructions

    • Some models are not sold with all of the available accessories, you may need to purchase the LG stacking kit first if it was not provided with your model. Please contact LG Electronics Customer Information Centre or visit the LG Website at http://www.lg.com for purchase.
  • Page 13 Place the appliance on the top of an LG front With the connecting elbow or T piece of the mains load washing machine.

  • Page 14: Operation Operation Overview

    OPERATION OPERATION Operation Overview • All strings and attached belts of clothes should be well tied and fixed before being put into the drum. Using the Appliance Before the first cycle, set the appliance to dry for 5 Press the Power button to turn the appliance minutes to warm up the drum.

  • Page 15: Preparing The Clothes

    OPERATION Checking the clothes before CAUTION loading • Be careful! The drum inside may still be hot. CAUTION • Check that the clothes are not stuck between Press the Power button to turn the appliance appliance and door, otherwise the clothes may off.
  • Page 16 OPERATION Non-Iron and Synthetics Symbol Description • Do not overload the appliance. Take out non- Iron items as soon as the appliance stops to Low Heating reduce creases. No Heating / Air Baby Clothes and Night Gowns • Always check fabric care labels. Line Dry / Hang to dry Rubber and Plastics Drip Dry...

  • Page 17: Control Panel

    • Use these buttons to select the desired options for the selected programme. Not all options are available in each programme. Remote Start • With the LG ThinQ app, you can use a smartphone to control your appliance remotely. • In order to use the Remote Start function, refer to SMART FUNCTIONS. Wi-Fi •...
  • Page 18 OPERATION Time and Status Display Description Drying progress indicator • lights up when the appliance is in drying progress. • lights up when the appliance is in iron drying progress. • lights up when the appliance is in cupboard drying progress. •...

  • Page 19: Programme Table

    OPERATION Programme Table Sensor Drying Programme Guide Programme Cotton Max. Load Capacity 9 kg Dry Level Extra • Clothing Type • Towels, dressing gowns and bed linen • Detail • For thick and quilted fabrics Cupboard • Bath towels, tea towels, underwear and cotton socks •...
  • Page 20 OPERATION Programme Duvet Max. Load Capacity 2.5 kg Clothing Type Beddings, bed sheets Detail For bulky items • Large bed sheets or quilt covers may not dry evenly due to uneven airflow should they become rolled up. They may require removal and reloading mid cycle to ensure proper drying.
  • Page 21 OPERATION Timed Drying programme Guide Programme Rack Dry Max. Load Capacity – Clothing Type Silk, wool, delicate lingerie Detail Refreshes clothes without tumble drying Programme Cool Air Max. Load Capacity – Clothing Type All fabrics that need refreshing Detail Tumbles without heat Programme Warm Air Max.
  • Page 22 OPERATION Programme EcoHybrid Programme Dry Level Energy Time Mixed Fabric Extra Cupboard Iron Easy Care Cupboard Iron Duvet – Towels – Speed 30 – Allergy Care – Delicates – Wool – Sportswear – Rack Dry – Cool Air – Warm Air –...

  • Page 23: Option Programmes And Extra Functions

    OPERATION Option Programmes and Dry Level Extra Functions It allows you to select a dryness level for the drying programme. Delay End Turn the appliance on. It allows you to delay the finishing time of the drying cycle from 3 hours to 19 hours. Select a programme.
  • Page 24 • Press the Less Time button to decrease the the dryer rack first if it was not provided with selected programme time by 5 minutes. your model. Please contact LG Electronics Customer Information Centre or visit the LG Website at http://www.lg.com for purchase. Child Lock Open the door.
  • Page 25 OPERATION • The dryer rack does not move, but the drum will rotate. Close the door. Turn power on and select Rack Dry. Press the Start/Pause button. NOTE • Check the lint filter and remove any lint accumulated from items dried on the rack. •...

  • Page 26: Smart Functions

    LG ThinQ application. • If the distance between the appliance and • If you enable this function in the LG ThinQ the wireless router is too far, the signal application and turn on the dryer after using the strength becomes weak.
  • Page 27 Use a smartphone to control your appliance wireless router manual. remotely. You can also monitor your cycle • LG ThinQ is not responsible for any network operation so you know how much time is left in the connection problems or any faults, cycle.

  • Page 28: Smart Diagnosis

    LG ThinQ application. Open Source Software Notice • Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow Information the instructions provided in the LG ThinQ application.
  • Page 29 SMART FUNCTIONS NOTE • For best results, do not move the smartphone while the tones are being transmitted.

  • Page 30: Maintenance

    MAINTENANCE MAINTENANCE WARNING • Remove the power plug when you clean the appliance. Not removing the plug may result in electric shock. Cleaning after Every Dry Clean the inner filter Pull out the inner filter from the outer filter and Cleaning the Lint Filter then open the inner filter.
  • Page 31 MAINTENANCE Clean the outer filter Close the outer filter while pushing the side of the filter. Remove the dust or lint around the filter inlet. CAUTION • When the lint drops into the filter inlet, it may NOTE cause degradation of drying performance and increase in drying time.

  • Page 32: Cleaning The Appliance Periodically

    MAINTENANCE Empty the water container after every use. Not Press the Start/Pause button. doing so will affect the drying performance. Cleaning the Appliance NOTE Periodically • If the water container is full, the icon glows and a chime will sound while the appliance is operating.
  • Page 33 MAINTENANCE • Adequate room ventilation should be provided NOTE to avoid the back flow of gases into the room from units burning other fuels, such as open • Use the water container if the optional drain fires. hose is installed or the appliance is stacked on the washing machine.
  • Page 34 MAINTENANCE • This function operates for about 3 hours. • Do not pour the water quickly as it will spill out. • Pouring more that 1.5 liters of water into the compartment will cause water to leak back out. Empty the water container after the function has finished.

  • Page 35: Care In Cold Climates

    MAINTENANCE Care in Cold Climates Press the Start/Pause button to start the thawing mode. If the ambient temperature is too low, the • Actual thawing time varies depending on the condensed water inside the appliance may be installation environment such as installation frozen and affect the appliance operation.
  • Page 36 MAINTENANCE • Nothing appears on the display when the thawing is done. Dry the clothes as usual.

  • Page 37: Troubleshooting

    Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to LG Electronics service centre.
  • Page 38 The door is closed while clothes or foreign substance is caught in the door. • Check if clothes or foreign substance is caught in the door before using the appliance. If water leaks continuously, contact the LG Electronics Customer Information Centre. Appliance runs and This is how the anti crease option works.
  • Page 39 TROUBLESHOOTING Performance Symptoms Possible Cause & Solution Clothes take too long Load is not properly sorted. to dry. • Separate heavy items from lightweight items. Larger and heavier items take longer to dry. Light items in a load with heavy items can fool the sensor because the light items dry faster.
  • Page 40 TROUBLESHOOTING Symptoms Possible Cause & Solution Greasy or dirty spots Fabric softener is used incorrectly. are left on clothes. • When washing clothes that are to be dried in the appliance, use the correct amount of fabric softener as recommended by the manufacturer of the fabric softener.
  • Page 41 TROUBLESHOOTING Symptoms Possible Cause & Solution Excess static in clothes Clothes have dried for too long (overdried). after drying. • Overdrying a load of clothes can cause a buildup of static electricity. Adjust settings and use a shorter drying time, or use Sensor Dry programmes. Drying synthetics, permanent press, or synthetic blends.
  • Page 42 TROUBLESHOOTING Odours Symptoms Possible Cause & Solution The appliance has an Are you using the appliance for the first time? odour. • The smell is caused by rubber material that is attached to the appliance inside. This kind of smell is a rubber's own smell and disappears automatically after using the appliance several times.
  • Page 43 • Find the Wi-Fi network connected to your smartphone and remove it, then connected to the Wi-Fi register your appliance on LG ThinQ. network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
