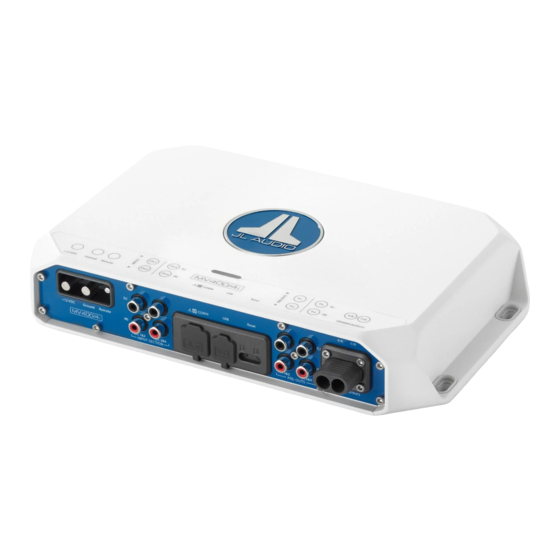

- Page 1 400W Full-Range 4-Channel Class D Marine Amplifier with Integrated DSP with CONNECTION GUIDE 10.59 in 269 mm 6.93 in 3.67 in 176 mm 93 mm 2.05 in 52 mm 11.20 in 285 mm...
- Page 2 Power Connector The MV400/4i’s “+12 VDC” and “Ground” connections are designed to accept up to 4 AWG copper wire. Note: Copper Clad Aluminum (CCA) wire is not recommended. Tinned copper power wire is the best choice for marine installations. 4 AWG is the minimum copper wire size for this amplifier.
- Page 3 Cooling Efficiency Considerations The outer shell of your JL Audio amplifier is designed to remove heat from the amplifier circuitry. For optimum cooling performance, this outer shell should be exposed to as large a volume of air as possible. Enclosing the amplifier in a small, poorly ventilated chamber can lead to excessive heat build-up and degraded performance.
- Page 4 Wiring Diagram - MV400/4i Included Not Included Attached to Amp +12 VDC - Positive (+12V) Battery Connection Ground - Negative (–) Ground Connection Remote - Positive (+12V) Turn-On Input From Source Unit CH. 1 - Ch. 1 Signal Input CH. 2 - Ch. 2 Signal Input...
