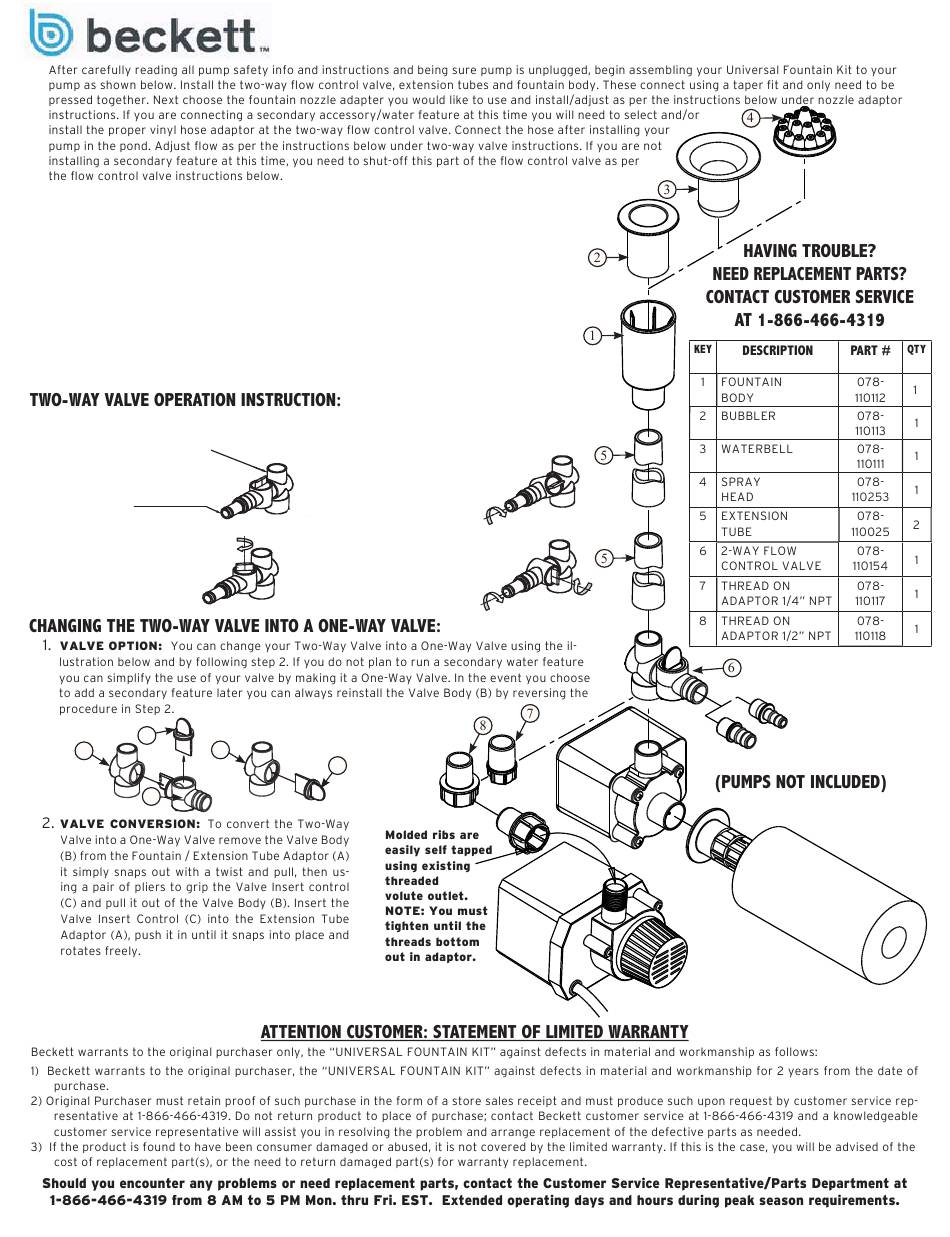

Beckett NK3 Assembly And Operation Instructions

NOZZLE ADAPTOR INSTRUCTIONS:
Spray Head:
control to adjust height/size of spray - lower the spray height during windy condi-
tions for better control of the spray.
Waterbell:
Insert into fountain body until it bottoms out then pull the waterbell
up about 1/4" - moving waterbell deeper into fountain will make spray thinner- ad-
just the thickness of the waterbell spray by moving the water bell up and down in
the fountain body - adjust the size/diameter of spray with the flow control - water-
bell spray may be affected by windy conditions, adjust as necessary.
Bubbler:
Inserts into the fountain body until the ribs bottom out - provides a tube of water
mixed with air - use flow control to adjust height/size of spray - great for hot months when fish
need extra oxygen due to increased water temperature.
This setup shows both of the valves in the
full-flow (open) position
Extension tubes attach here
Secondary accessory/water
feature with 3/8", 1/2" or
3/4" diameter vinyl hose
connect here.
Rotate Valve Insert clockwise,
as shown, to restrict flow to
the accessories, but maintain
flow through the fountain.
C
A
B
DISCHARGE ADAPTORS:
Parts (7) & (8) Easily thread onto
the existing external threads (1/4" & 1/2" npt pipe threads) on the
pump volute discharge.
UNIVERSAL FOUNTAIN KIT
ASSEMBLY AND OPERATION INSTRUCTIONS:
Snaps on the fountain body - has 19 streams of water - use flow
Rotate the Valve Body clockwise,
as shown, to restrict flow to the
fountain, but maintain flow through
the accessories.
Rotate both the Valve Body and the
Valve Insert 90° clockwise to shut off
flow to both the fountain and the
accessories.
A
C
92339 rev01
