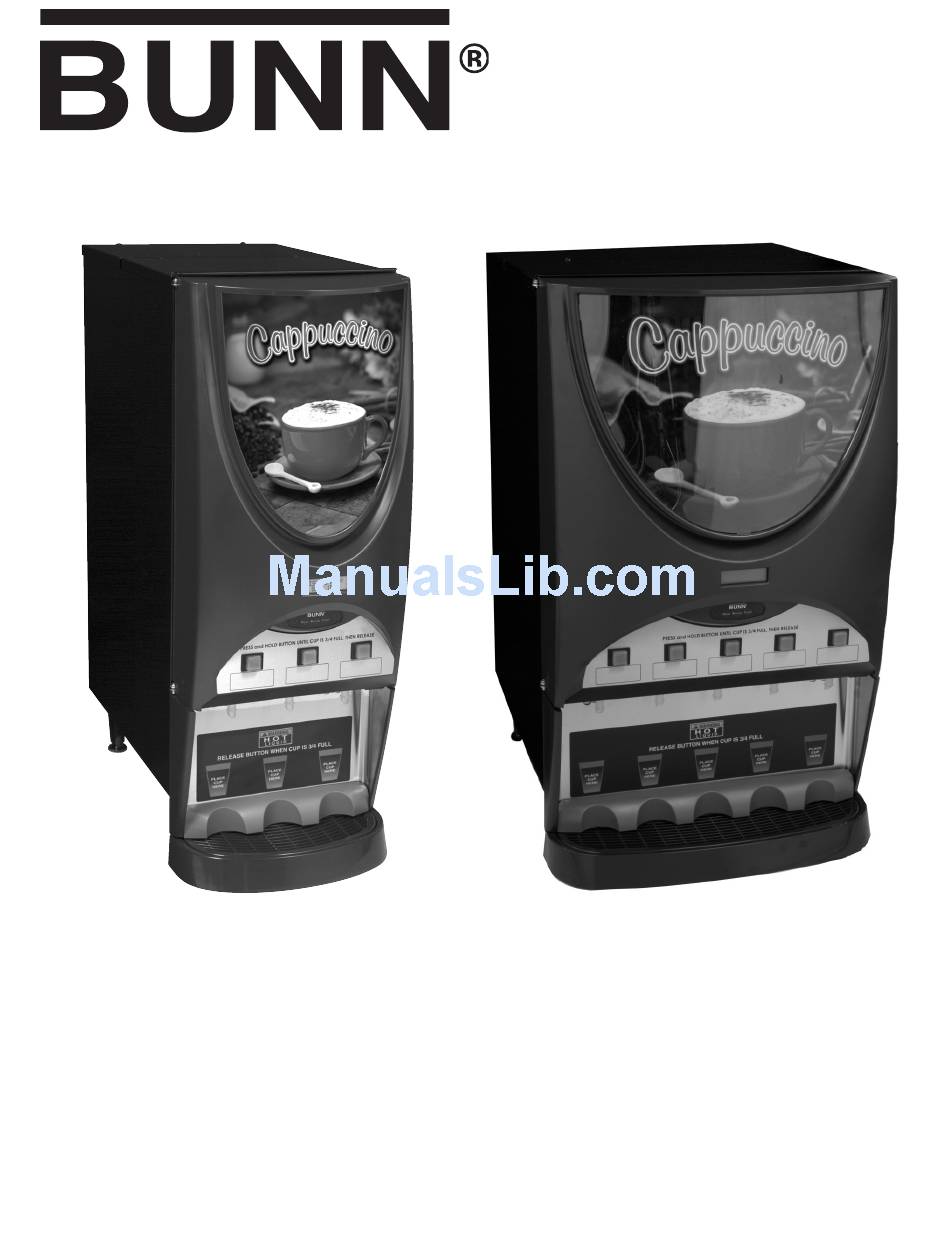

INSTALLATION & OPERATING MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE,
and the quickest way to obtain the catalog. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper
copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
www.bunnomatic.com
38987.0000C 09/07 ©2006 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading

Summary of Contents for Bunn iMIX-3S+

  • Page 1 To obtain the Illustrated Parts Catalog, visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the catalog. Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog mailed via U.S. Postal Service.
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
  • Page 3: User Notices

    DAMAGE, FIRE, OR SHOCK HAZARD READ THE ENTIRE OPERATING MANUAL BEFORE BUYING OR USING THIS PRODUCT THIS APPLIANCE IS HEATED WHENEVER CONNECTED TO A POWER SOURCE 00831.0000F 3/98 ©1998 BUNN-O-MATIC CORPORATION 00831.0000 IMIX-3S+/IMIX-3S+A 28328.0011 This equipment must be installed to comply with the Basic Plumbing Code of the Building Officials and Code Administrators International, Inc.
  • Page 4: Initial Setup

    INITIAL SET-UP 1. Apply the four non-skid pads from the parts box to the bottom of the legs. 2. Remove the drip tray assembly, drip tray bracket, and splash panel assembly from the parts box. 3. Place a set of key holes in the drip tray bracket over the lower two screws in the panel below the hopper access door;...
  • Page 5: Plumbing Requirements

    90 psi to reduce it to 50 psi. The water inlet fitting is 1⁄4” flare. NOTE - Bunn-O-Matic recommends 1⁄4” copper tubing for installations of less than 25 feet and 3⁄8” for more than 25 feet from the 1⁄2”...
  • Page 6: Draining The Hotwater Tank

    Refer to the decal inside the hopper access door for cleaning recommendations and procedures. The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all sur- faces on Bunn-O-Matic equipment. DRAINING THE HOTWATER TANK CAUTION - The dispenser must be disconnected from the power source throughout these steps 1.
  • Page 7 Adjust tank temperature TANK TEMP XXX° (190° F maximum) EXIT Adjust minimum tank ready temper- READY TEMP XXX° ature for lockout (185° maximum) EXIT Select Portion Control PORTION CONTROL ? Dispensing EXIT Select setting cup size by Time (seconds) or SET CUP SIZE by Example (Portion Control models only) EXMPL...
  • Page 8 To access the programming mode, and to scroll through different function screens, the programming switches shown are used. There are five of switches that will be used for setup of the dispenser. PROGRAMMING THE DISPENSER DISPENSE READY BUNN IMIX igital everage ontrol A.
  • Page 9: Normal/Program/Rinse Switch

    Place the “NORMAL/PROGRAM/RINSE” switch in the “PROGRAM” position. Press button A (page 8) below the BUNN logo on front of the door until the “SET CUP SIZE” menu is reached. (Refer to menu J, page 12) Press button D (page 8) to select programming by “EXAMPLE”. Place proper cup under dispense tip for station you desire to set.
  • Page 10 PROGRAMMING THE DISPENSER (cont.) Press and release right switch (advance to next menu), “TANK TEMP XXX°” appears on screen. TANK TEMP XXX° READY TEMP XXX° PORTION CONTROL ? STRENGTH ADJ. ? ENTER PASSWORD CALIBRATION LOCKS/DISABLES ? ENABLE ADS ? Adjust tank EXIT temperature Adjust minimum tank...
  • Page 11 PROGRAMMING THE DISPENSER (cont.) Adjust hopper motor speed for station selected DRINK STRENGTH 1 PRESS DISPENSE TO CHECK TASTE TASTE 1 OK ? Goes to next station. Returns to (A) (page 10) after last station. SELECT UNITS EXIT METRIC XX° CAL XX°...
  • Page 12 PROGRAMMING THE DISPENSER (cont.) RINSE ALARM ? EXIT RINSE ALARM TIME HEAD 1 DISABLE ? XX hours (+) EXIT Goes to next station. RINSE LOCKOUT ? Continues after last EXIT station. SET PASSWORD ? XXXX Returns to (G) (page 10) TEST SWITCHES ? Use Switch To Test TEST HEATER ?
  • Page 13 ELECTRICAL SCHEMATIC J3-4 J3-1 38987 032306...
  • Page 14 ELECTRICAL SCHEMATIC 38987 091407...
