Use this guide to quickly and easily install your
Wireless Notebook Adapter-g. For
detailed setup and configuration information,
refer to the User Manual, located on the
AirNavigator Utility CD or the Buffalo Wireless
Support Web Page.
Contents
◗
Wireless Notebook Adapter-g
◗
AirNavigator CD
◗
Quick Setup Guides
◗
Warranty Statement
If any items are missing, please contact
the reseller from whom you purchased
this product.
System Requirements
◗
Notebook PC with an available
32-bit CardBus slot
◗
10 MB of available disk space
(with Client Manager)
◗
802.11b or 802.11g access point
(Infrastructure Mode) OR a different
computer with an 802.11b or 802.11g
wireless adapter (Ad-hoc Mode).
Quick Setup Guide
54Mbps Wireless Notebook Adapter-g
◗
Windows XP : Refer to the
Windows XP section of Installing
and Configuring
Notebook Adapter-g to install your
Wireless Notebook Adapter-g.
◗
Windows 98se/ ME/2000: Refer to
the Windows 98se/ME/2000
s e c t i o n o f I n s t a l l i n g a n d
Configuring the Wir eless
Notebook Adapter-g to install your
Wireless Notebook Adapter. Once
yo u s u c c e s s f u l l y i n s t a l l your
W i r e l e s s N o t e b o o k A d a p t e r,
continue your setup by referring
to the Installing Client Manager
section of this guide.
1
WLI-CB-G54A
www.buffalotech.com/wireless
PY00-29003-DM20 RevA
®
the Wireless
Advertisement
Related Manuals for Buffalo WLI-CB-G54A
Summary of Contents for Buffalo WLI-CB-G54A
-

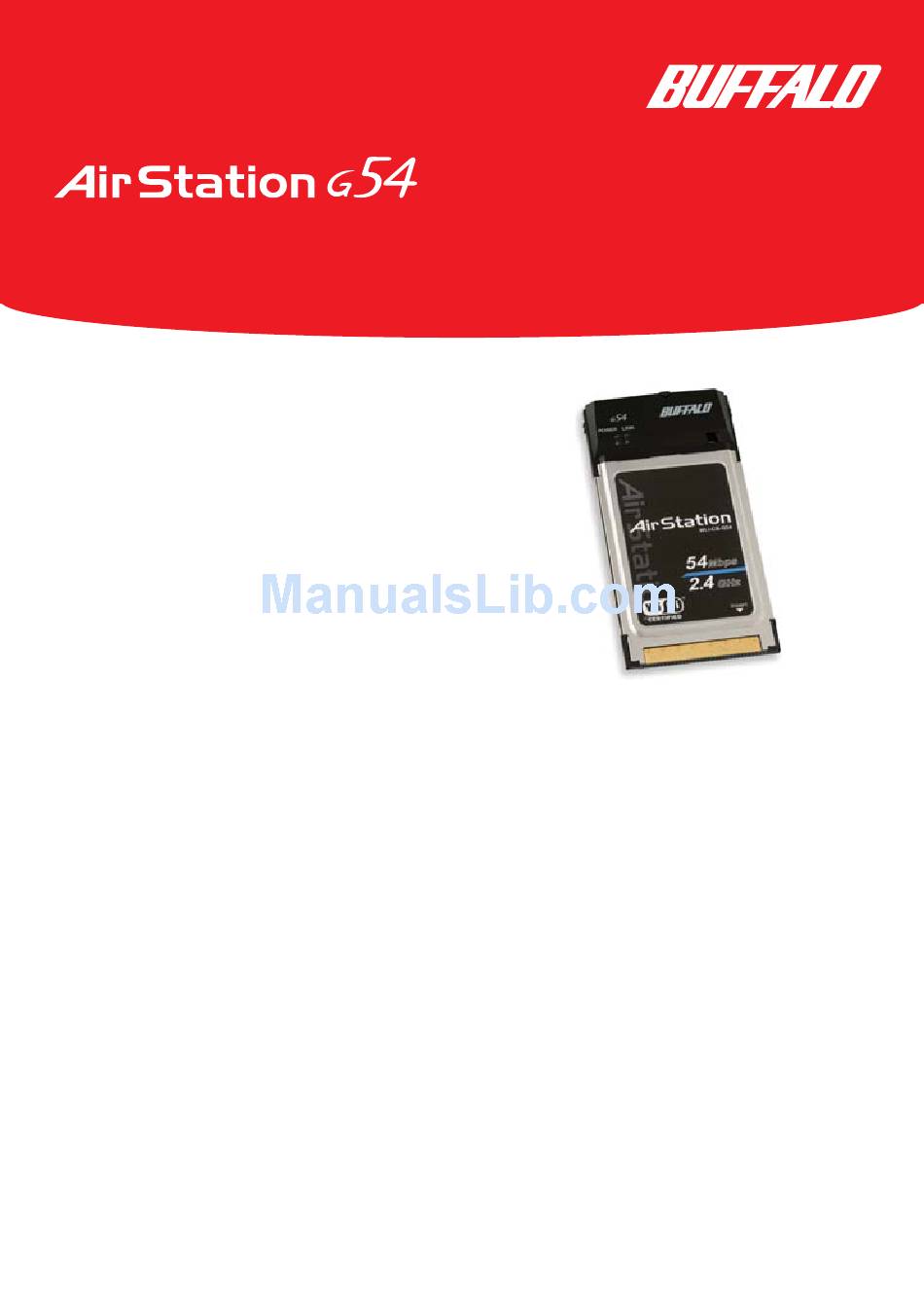

Page 1: Quick Setup Guide
Use this guide to quickly and easily install your Wireless Notebook Adapter-g. For detailed setup and configuration information, refer to the User Manual, located on the AirNavigator Utility CD or the Buffalo Wireless Support Web Page. Contents ◗ Wireless Notebook Adapter-g ◗... - Page 2 Windows XP Installation & Configuration Step Wireless Notebook Adapter Insert the Wireless Notebook Adapter, with the Buffalo logo facing up, into an available CardBus slot. CardBus slots are usually located on the left or right side of the notebook. Once...
- Page 3 CD-ROM drive If a window opens, stating that your driver does not pass Windows Logo testing, click the Continue Anyway button. When the Wireless Notebook Adapter successfully installed, click the Finish button. Restart your notebook if prompted.
- Page 4 If the Wireless Zero Config- uration Service is activated, Windows will scan for available wireless access points once the Wireless Notebook Adapter is properly installed. If Windows detects one or more access points, a appears in the taskbar. One or...
- Page 5 Client Manager to install Client Manager on your notebook. Client Manager will not function properly if the Wireless Zero Configuration Service is activated. For more information about configuring and operating your Wireless Notebook Adapter-g and Client Manager, refer to the Buffalo Support Web Site: http://www.buffalotech.com/wireless/support/index.php. Select a network name or access...
- Page 6 Installation & Configuration Step Installing the Wireless Notebook Adapter-g Insert the Wireless Notebook Adapter, with the Buffalo logo facing up, into an available CardBus slot. CardBus slots are usually located on the left or right side of the notebook. Once the...
- Page 7 You have finished installing your Wireless Notebook Adapter-g. See Installing Client Manager to install Client Manager on your notebook. Verify that no Optional search selected. checkboxes that are selected except for the CD-ROM drive. Click the Next button to continue to the Driver Files Search Results page.
-
Page 8: Installing Client Manager
Installing Client Manager Client Manager is used to associate a Buffalo Wireless Client Card or Adapter to an access point. Note: Client Manager does not function properly if the Windows XP Wireless Zero Configuration Service is enabled. If you plan to use XP’s Wireless Zero Configuration Service, do not install Client Manager. - Page 9 Confirm that the installation location for the software is acceptable. To select an alternate installation location, click the Browse button and select another location. Click the Next button to continue Select Components page. Select the components you want to install and click the Next button to continue to the Start Copying Files page.
- Page 10 However, by accepting default installation settings, Client Manager should properly install. For more information about configuring and operating your Wireless Notebook Adapter-g and Client Manager, refer to the Buffalo Support Web Site: http://www.buffalotech.com/wireless/support/index.php. In order to utilize WPA, users currently require XP’s Wireless Zero Configuration Service.
- Page 11 Connecting with Client Manager Note: Make sure your Access Point is operational prior running Manager. Open Client Manager and Click the Survey button. Click Refresh. Select the Access Point to connect to. applicable. Click Connect Client Manager has associated with the access point Close Client Manager.
-
Page 12: Technical Support
Copyright © 2003 Buffalo Technology, Inc. All Rights Reserved. Buffalo Technology (USA) Inc., is part of MELCO INC., the global manufacturers of IT peripherals, including memory, networking, and multimedia products, inside many of the world's computers. All trademarks are property of their...
