4X4X4 DOME ROUTER,
Standalone Version (Full Dome)
Content of the box:
•
1ea. Inner Core containing router, antenna modules, modems, and further
electronics.
•
1 ea. Dome (Base and Cover)
4ea. Bolts M8x50 (fixation Base on Mast/ Deck), nuts and washers
•
4ea. Bolts M8x100 (fixation Inner Core on Base), nuts and washers
•
•
1 ea. PSU AC (110..240V, 280W) to 24V/ 10A DC, including 1 ea. Power cable
EU to IEC13.
Unpacking the Box:
1)

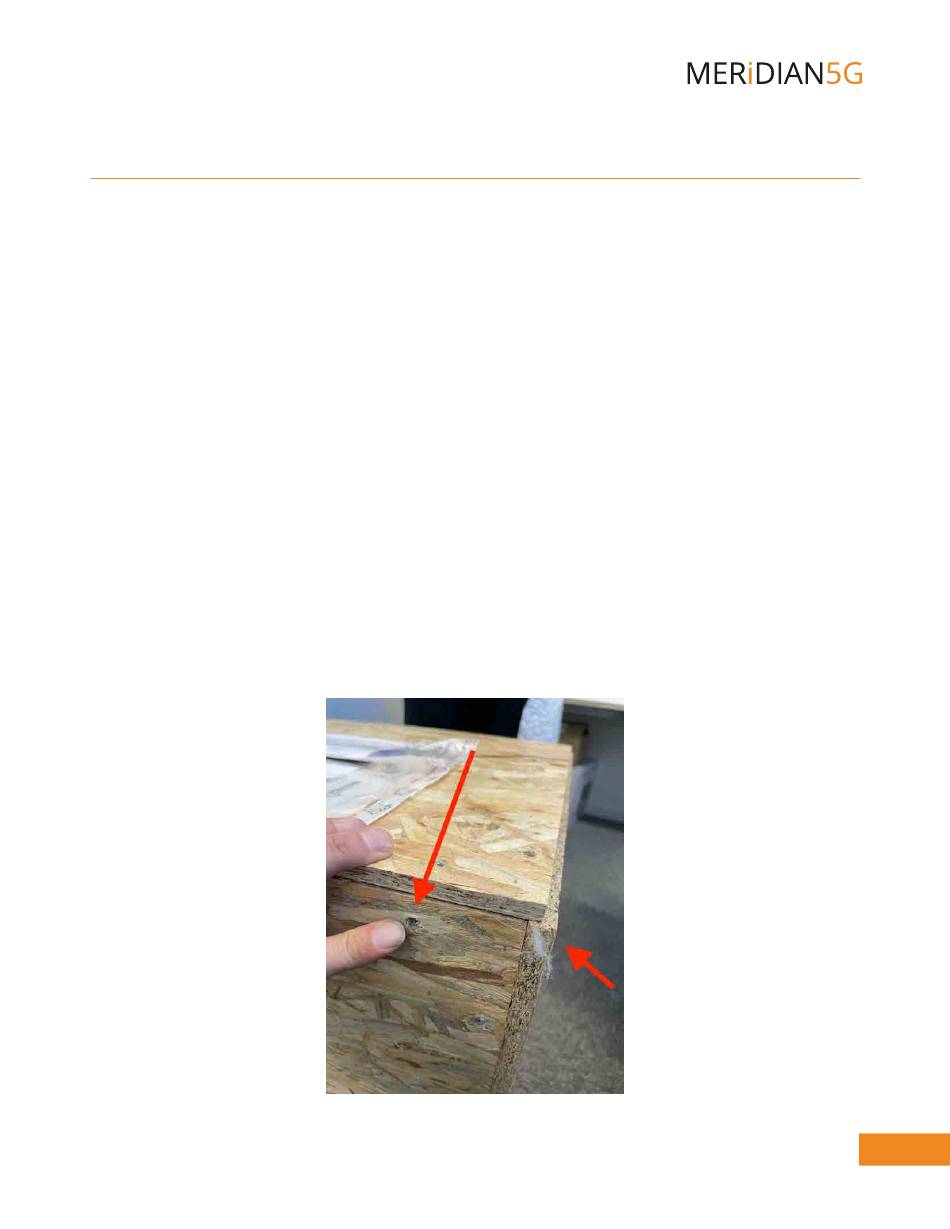

Remove the screws from the lateral panels near the box's cover, 8 in total, 2 per
corner, and remove the cover.
INSTALLATION MANUAL
1
Advertisement
Related Manuals for Meridian 4X4X4 DOME ROUTER
Summary of Contents for Meridian 4X4X4 DOME ROUTER
- Page 1 4X4X4 DOME ROUTER, Standalone Version (Full Dome) INSTALLATION MANUAL Content of the box: • 1ea. Inner Core containing router, antenna modules, modems, and further electronics. • 1 ea. Dome (Base and Cover) 4ea. Bolts M8x50 (fixation Base on Mast/ Deck), nuts and washers •...
- Page 2 Carefully take out the Dome’s Cover. It is not fixed with bolts during the shipping. Remove the 4x M8x100 Bolts and washers, fixing the Inner Core on the base. Carefully take out the Inner Core. 4X4X4 DOME ROUTER, Standalone Version (Full Dome) INSTALLATION MANUAL...
- Page 3 Release the nuts on the Base, fixing the base on the box. Take out the nuts and washers. Carefully take out the Dome’s Base. 4X4X4 DOME ROUTER, Standalone Version (Full Dome) INSTALLATION MANUAL...
- Page 4 As well, mounting holes 9mm (red arrows) for fixation of the Base on the Mast or Deck with M8 Bolts and washers. Before mounting the Base, please note the position of the Stern Marker. 4X4X4 DOME ROUTER, Standalone Version (Full Dome) INSTALLATION MANUAL...
- Page 5 Inner Core on the Base using 4x M8x100 Bolts and washers. Gently (!) tighten the bolts. Connections Power (red). Network cable(s) (yellow). Insert SIM cards into the SIM slots located on all 4 lateral panels (green). 4X4X4 DOME ROUTER, Standalone Version (Full Dome) INSTALLATION MANUAL...
- Page 6 Most of the time “automatic” is the best choice. If you want to force differently, please disable automatic (toggle button) and make your choice. Mount the Dome’s Cover, aligned by the Markers 4X4X4 DOME ROUTER, Standalone Version (Full Dome) INSTALLATION MANUAL...
- Page 7 Fix the cover with the bolts (4x) integrated in the Dome’s Base. You’ll need an Allen Key to tighten those properly. Dimension, Positions, 3D Thank you for your attention. 4X4X4 DOME ROUTER, Standalone Version (Full Dome) INSTALLATION MANUAL...
