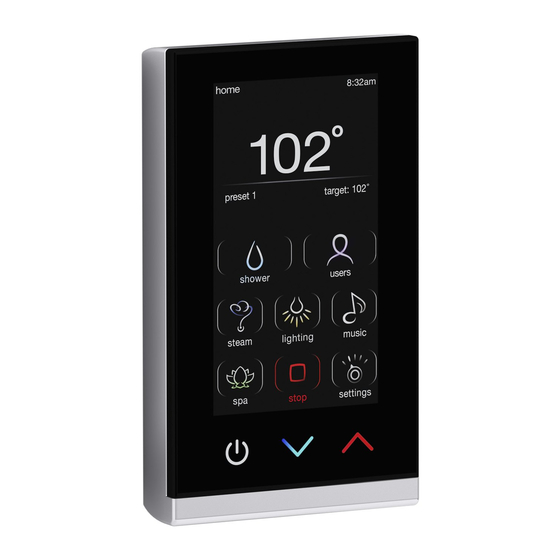

Guide to Using DTV+ Quick Start
The DTV+ Quick Start software has been introduced to simplify the initial setup of the digital shower valves. This allows the
installer to quickly complete the basic valve setup and system configuration and testing.
Important Notes:
1.
Quick Start can be used for any custom shower design or DTV+ Spa configuration installation.
2.
For Spa configurations (configurations A to E), the valve outlets must be connected to the terminal fittings exactly as
indicated in the installation instructions. (See Attached Plumbing Layouts for Each Configuration)
3.
Quick Start will only configure the shower valve outlet setup. All other settings must be completed through the embedded
web pages.
4.
In Spa configurations, certain valve combinations do not use all available valve outlets (these can be used for additional
applications outside the Spa experiences). These outlets must be configured via the embedded web pages.
5.
After Quick Start is completed, the digital valves will be configured and the system can be operated to complete testing. If
corrections are required, Quick Start can be accessed via the settings icon.
DTV+ Quick Start
Advertisement
Related Manuals for Kohler DTV+
Summary of Contents for Kohler DTV+
- Page 1 DTV+ Quick Start Guide to Using DTV+ Quick Start The DTV+ Quick Start software has been introduced to simplify the initial setup of the digital shower valves. This allows the installer to quickly complete the basic valve setup and system configuration and testing. Important Notes: Quick Start can be used for any custom shower design or DTV+ Spa configuration installation.
- Page 2 DTV+ Quick Start Example: Custom Configuration With Six Port Valve Press Power icon Select Yes to start Quick Start Configuration options for connected Select valve outlet 1. Select next. Option to run water for 5 seconds to valve/s. Select Custom. Select Next identify outlet.
- Page 3 DTV+ Quick Start Example: Custom Configuration With Six Port Valve Select desired features to activate Quick Start sequence completed. Press Home screen. To edit Quick Start Select System Select Quick Start. Initial settings are them. Select Next. Ok to return to home screen. settings, Select Settings displayed and can be edited.
- Page 4 DTV+ Quick Start Example: Spa Configuration A – With Two Six Port Valves Press Power icon Select Yes to start Quick Start Configurations options for connected Only appears when two valves are the If No selected, system swaps valves valves. Select config ‘A’. Select Next. same.
- Page 5 What Can / Can’t Be Set-Up with Quick Start What Can Be Set-Up What Can’t Be Set-Up • Custom Shower Set Up • Lighting • Spa Configurations A-E • Music – Configuration E Requires 99695-E- • Steam NA System Controller •...
- Page 6 CUSTOM Configuration – Plumbing Layout Example Custom Plumbing Layout 1. A custom plumbing configuration is ANY plumbing configuration other than a SPA configuration (A – E). 2. A custom configuration may have one or two valves (any combination). 3. With a custom configuration, each outlet must be individually identified and selected.
- Page 7 SPA Configuration A – Plumbing Layouts Configuration A - Plumbing Layout 1 Configuration A - Plumbing Layout 2...
- Page 8 SPA Configuration B – Plumbing Layouts Configuration B - Plumbing Layout 1 Configuration B - Plumbing Layout 3 Configuration B - Plumbing Layout 2...
- Page 9 SPA Configuration C – Plumbing Layout Configuration C - Plumbing Layout...
- Page 10 SPA Configuration D – Plumbing Layout Configuration D - Plumbing Layout...
- Page 11 SPA Configuration E – Plumbing Layout Configuration E - Plumbing Layout...
- Page 12 DTV+ Quick Start The following Firmware and Graphic files represent the latest DTV+ Quick Start Software. This can be found by plugging in the DTV+ Interface, going to System > About: FIRMWARE: 0.0.3.60 GRAPHICS: 0.0.7.27...
