Control 4 Auxiliary C4-KA Series Installation Manual

Supported model
• C4-KA Auxiliary Keypad
Introduction

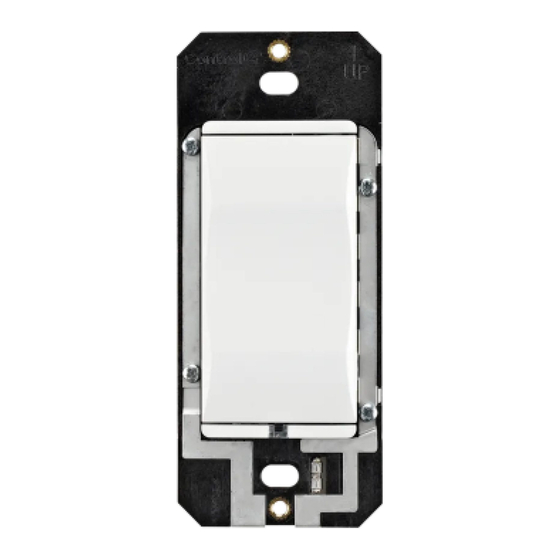

The Control4® Auxiliary Keypad is intended for use in a Control4 system. It installs
in a standard wallbox and connects and communicates with a compatible Control4
dimmer or switch using the traveler wire.
Box contents
• Auxiliary Keypad
• Wire nuts
• Warranty card
• Auxiliary Keypad Installation Guide (this document)
Compatible devices
The Auxiliary Keypad can connect to and control any of the following Control4
devices:
• C4-APD120 Adaptive Phase Dimmer
• C4-APD240 Adaptive Phase Dimmer
• C4-APD277 Adaptive Phase Dimmer
• C4-FPD120 Forward Phase Dimmer
• C4-KD120 Keypad Dimmer
• C4-KD240 Keypad Dimmer
• C4-KD277 Keypad Dimmer
• C4-SW120277 Switch
• C4-SW240 Switch
• C4-TV120277 0-10V Dimmer
• C4-TV240 0-10V Dimmer
• C4-4SF120 Fan Speed Controller
Specifications
The specifications are described below.
Model number
Power requirements
Operational temperature
Humidity
Storage
Wallbox volume
Weight
Shipping weight
Maximum number of
supported devices
Auxiliary Keypad
Installation Guide
C4-KA-xx
120/240/277 VAC +/-10% 50/60 Hz
Environmental
32˚F ~ 104˚F (0˚C ~ 40˚C)
5% to 95% non-condensing
-4˚F ~ 158˚F (-20˚C ~ 70˚C)
Miscellaneous
4.75 cubic inches
0.07 lb. (0.03 kg)
0.12 lb. (0.05 kg)
10
™
Warnings and considerations
WARNING! Turn OFF electrical power before installing or servicing this
product. Improper use or installation can cause SERIOUS INJURY, DEATH
or LOSS/DAMAGE OF PROPERTY.
ATTENTION! Coupez l'alimentation électrique avant d'installer ou de
réparer ce produit. Une mauvaise installation ou utilisation peut entraîner
des blessures graves, décès ou perte / dommages à la propriété.
This device must be protected by a circuit breaker (20A max).
WARNING!
ATTENTION! Cet appareil doit être protégé par un disjoncteur (20A max.)
WARNING! Ground this device in accordance with the National Electric
Code (NEC) requirements. DO NOT rely solely upon the yoke plate's
contact with a metal wallbox for adequate grounding. Use the device's
ground wire to make a secure connection to the safety ground of the
electrical system.
ATTENTION! Cet appareil doit être en conformité avec le Code national
de l'électricité (NEC). Ne comptez pas uniquement au contact de la
plaque avant avec un boîtier mural métallique pour la mise à la terre
adéquate. Utilisez cet appareil à la terre de l'appareil pour établir une
connexion sécurisée au système électrique.
IMPORTANT! This device must be installed by a licensed electrician in
accordance with all national and local electrical codes.
IMPORTANT! If you are unsure about any part of these instructions,
consult a qualified electrician.
Use this device only with copper or copper-clad wire. Do
IMPORTANT!
not use aluminum wiring. This product has not been approved for use with
aluminum wiring.
Install in accordance with all applicable national and local
IMPORTANT!
electrical codes.
IMPORTANT! Using this product in a manner other than outlined in this
document voids your warranty. Further, Control4 is NOT liable for any
damage incurred with the misuse of this product. See "Troubleshooting."
IMPORTANT! Do NOT use a power screwdriver to install this device. If you
do, you may overtighten the screws and strip them. Also, overtightening
the screws may interfere with proper button operation.
IMPORTANT! This is an electronic device with intricate components.
Handle and install with care!
IMPORTANT! Do not exceed a maximum cable length of 150 feet (45m)
when the Yellow traveler wire is being run in parallel with the load, e.g., the
wire is a 3 conductor (4 wire).
IMPORTANT! When used in conjunction with a Control4 switch or dimmer,
the wire connecting the Auxiliary Keypad to the switch or dimmer must
not exceed 150 feet (45m) at 120VAC, and 100 feet (30 m) at 277VAC.
Installation instructions
1 Turn off the local electrical power by either switching off the circuit breaker or
removing the fuse from the fuse box. To ensure the wires do NOT have power
running to them, use an inductive voltage detector.
For wiring diagrams, refer to the Control4 switch or dimmer
NOTE:
installation guide. The wallbox wiring shown in this document is an
example. Your wire colors and functions may differ. If you are not sure
which wires are the Line In/Hot, Neutral, and Earth Ground wires, have a
trained electrician do the installation.
