KitchenAid 5KFP0719 Use And Care Manual

Hide thumbs Also See for 5KFP0719:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Use and Care manual
DE
Gebrauchs- und Pflegeanleitung
FR
Manuel d'utilisation et d'entretien
IT
Manuale d'uso e manutenzione
NL
Gebruiks- en
onderhoudshandleiding
ES
Manual de uso y cuidado
PT
Manual de utilização e
manutenção
EL
Εγχειρίδιο Χρήσης και Φροντίδας
SV
Handbok för skötsel och
användning
W11501509A_01_EN.indd 1
W11501509A_01_EN.indd 1
Food Processor
2
NO Håndbok for bruk og vedlikehold
FI
19
Käyttö- ja huolto-opas
DA
35
Vejledning til anvendelse og
vedligehold
53
IS
Notenda & Meðhöndlunar
handbók
69
RU
Руководство по эксплуатации и
85
уходу
PL
Instrukcja obsługi i konserwacji
101
CS
Návod k použití a údržbě
117
TR
Kullanım ve Bakım kılavuzu
133
‫دليل االستخدام والعناية‬
AR
5KFP0719
149
165
181
197
213
229
245
261
30-12-2020 13:29:01
30-12-2020 13:29:01
1

Advertisement

Table of Contents
loading

Related Manuals for KitchenAid 5KFP0719

Summary of Contents for KitchenAid 5KFP0719

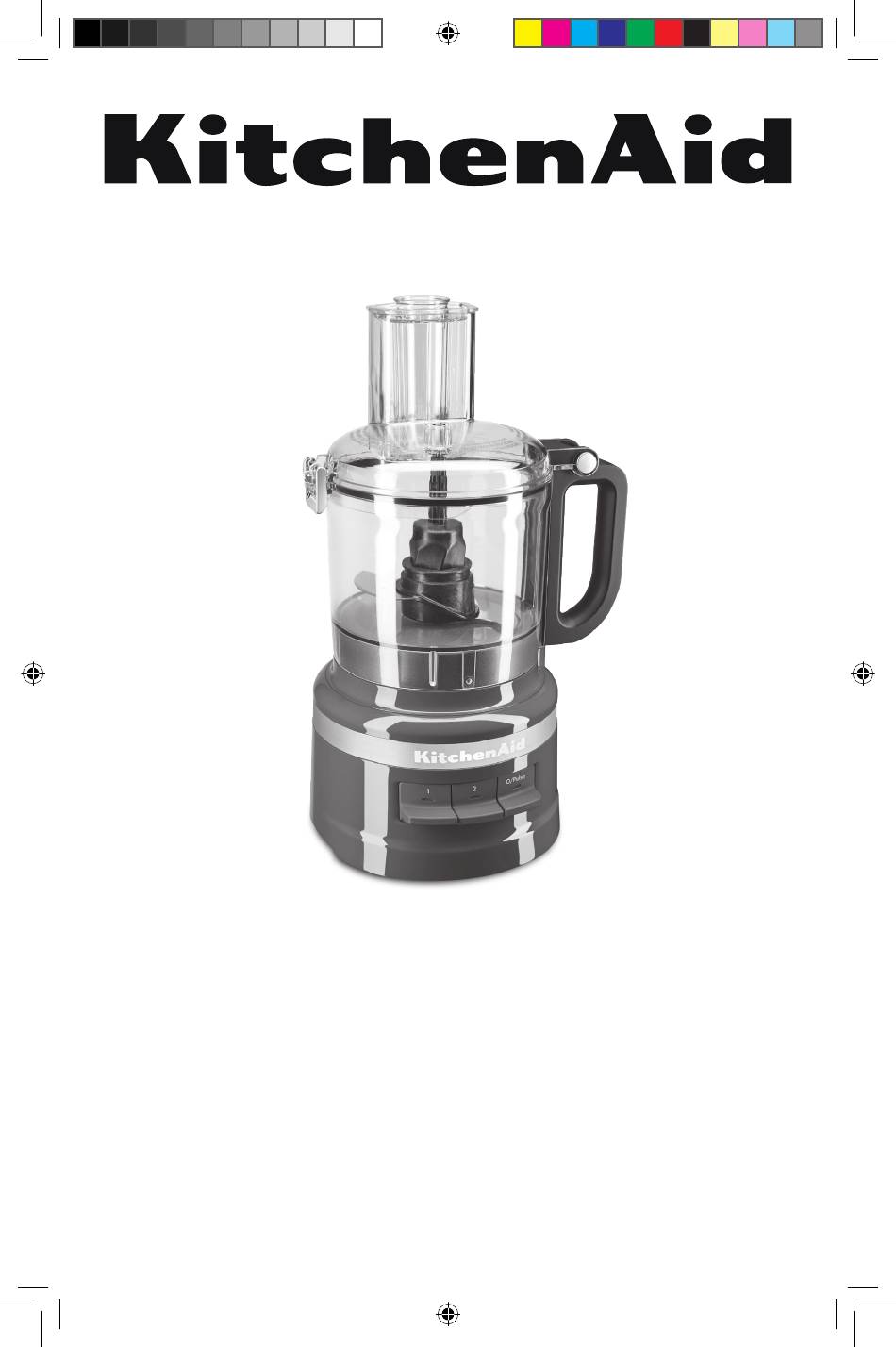

  • Page 1 Food Processor 5KFP0719 Use and Care manual NO Håndbok for bruk og vedlikehold Gebrauchs- und Pflegeanleitung Käyttö- ja huolto-opas Manuel d’utilisation et d’entretien Vejledning til anvendelse og vedligehold Manuale d’uso e manutenzione Notenda & Meðhöndlunar Gebruiks- en handbók onderhoudshandleiding Руководство по эксплуатации и...

  • Page 2: Parts And Features

    PARTS AND FEATURES Lid Latch 2-Piece Food Pusher Work Bowl Cover with 2-In-1 Feed Tube Lid Hinge Handle Hinge 7-Cup (1.7 L) Work Bowl Drive Pin Power Cord and Heavy-Duty Cord Storage Base (Not Shown) Reversible Slicing/Shredding Disc Multipurpose Drive Adapter Stainless Steel Blade Dough Blade...

  • Page 3: Product Safety

    PRODUCT SAFETY IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following: 1. Read all instructions. Misuse of appliance may result in personal injury. 2. To protect against risk of electrical shock, do not put Food Processor in water or other liquid.
  • Page 4 To unplug, grasp the plug and pull from the outlet. Never pull from the power cord. 12. The use of attachments not recommended or sold by KitchenAid may cause fire, electric shock, or injury.

  • Page 5: Electrical Requirements

    PRODUCT SAFETY ELECTRICAL REQUIREMENTS Voltage: 220-240 V Frequency: 50-60 HZ NOTE: If the plug does not fit in the outlet, contact a qualified electrician. Do not modify the plug in any way. ELECTRICAL EQUIPMENT WASTE DISPOSAL Disposal of packing material which could otherwise be caused by inappropriate waste handling of this The packing material is recyclable and is...

  • Page 6: Product Usage

    PRODUCT USAGE ACCESSORIES SELECTION GUIDE Action Setting Food Accessory Cheese Multipurpose stainless steel blade O/Pulse Chocolate Chop 1 or Fruits Fresh herbs Nuts O/Pulse Mince or Purée 2 or Tofu Vegetables Pasta Sauce Pesto Salsa Sauces Batters Fruit (soft) Reversible slicing/shredding disc Potatoes (slicing side) OR slicing blade Tomatoes...

  • Page 7: Before First Use

    PRODUCT USAGE BEFORE FIRST USE Before using your Food Processor for the first time, wash all parts and accessories either by hand or in the dishwasher (see the “Cleaning the Food Processor” section). Your Food Processor is designed so that all accessories may be stored inside the work bowl. Lift up the Lid Latch to unlock the Remove all parts and accessories cover.

  • Page 8: Installing The Multipurpose Blade Or Dough Blade

    PRODUCT USAGE NOTE: For ease of assembly, install the desired blade or disc before attaching the work bowl cover. To attach the Work Bowl cover, push Once the Work Bowl cover is closed, the Lid Hinge into the Handle Hinge push the Lid Hinge down into the on the Work Bowl and close the locked position.
  • Page 9 PRODUCT USAGE INSTALLING THE REVERSIBLE SLICING/SHREDDING DISC OR SLICING BLADE Process Storage The disc can be placed in two different positions: high at the top of the bowl To slice: Turn the disc so that the for processing, and low in the bowl for raised Slicing Blade is facing up.

  • Page 10: Operating The Food Processor

    PRODUCT USAGE OPERATING THE FOOD PROCESSOR Before operating the Food Processor, be sure the Work Bowl, Blades, and Work Bowl Cover are properly assembled on the base (see the “Assembling the Food Processor” section). Rotating Blade Hazard Always use food pusher. Keep ngers out of openings.

  • Page 11: Using The 2-In-1 Feed Tube

    PRODUCT USAGE Wait until the Blade or Disc comes to a complete stop before removing the When finished, press O/Pulse. The Work Bowl Cover. Be sure to turn off indicator light will go out and the the Food Processor before removing blade or disc will slow to a stop.
  • Page 12 PRODUCT USAGE Remove the Drive Adapter, then If using a Disc, remove it before the Multipurpose Blade or Dough removing the Bowl. Holding the Disc Blade, if using. The blade will stay in by the centre hub, lift it straight up. place on the Drive Adapter when you remove the Adapter.

  • Page 13: Care And Cleaning

    CARE AND CLEANING CLEANING THE FOOD PROCESSOR IMPORTANT: The BPA-free bowl requires special handling. If you choose to use a dishwasher instead of hand washing, please follow these guidelines. Press O/Pulse, then unplug the Food Processor before cleaning. All parts are top rack dishwasher-safe. Wipe the base and cord with a warm, Avoid laying the bowl on its side.

  • Page 14: Troubleshooting

    If the speed light turns off and the If the problem is not due to one of the O/Pulse light flashes, wait until the above items, see the “Terms of KitchenAid O/Pulse light turns off and retry. The Guarantee (“Guarantee”)” section.
  • Page 15 TERMS OF KITCHENAID GUARANTEE ("GUARANTEE") Covering U.K. - Ireland - South Africa - UAE KitchenAid Europa, Inc., Nijverheidslaan 3, Box 5, 1853 Strombeek-Bever, Belgium ("Guarantor") grants the end-customer, who is a consumer, a Guarantee pursuant to the following terms. FOR U.K.: The Guarantee applies in addition to and does not limit or affect the statutory warranty rights of the end-customer against the seller of the product.
  • Page 16 The Guarantor grants the Guarantee for the products mentioned under Section 1.b) which a consumer has purchased from a seller or a company of the KitchenAid-Group within the following countries: U.K., Ireland, or South Africa, or the United Arab Emirates (UAE).

  • Page 17: Product Registration

    The Guarantor shall also bear the postage costs for returning the defective product or product part if the Guarantor or the country specific KitchenAid customer service centre requested the return of the defective product or product part. However, the consumer shall bear the costs of appropriate packaging for the return of the defective product or product part.
  • Page 18 W11501509A_01_EN.indd 18 W11501509A_01_EN.indd 18 30-12-2020 13:29:06 30-12-2020 13:29:06...
