fmGenie Diversity Soundfield

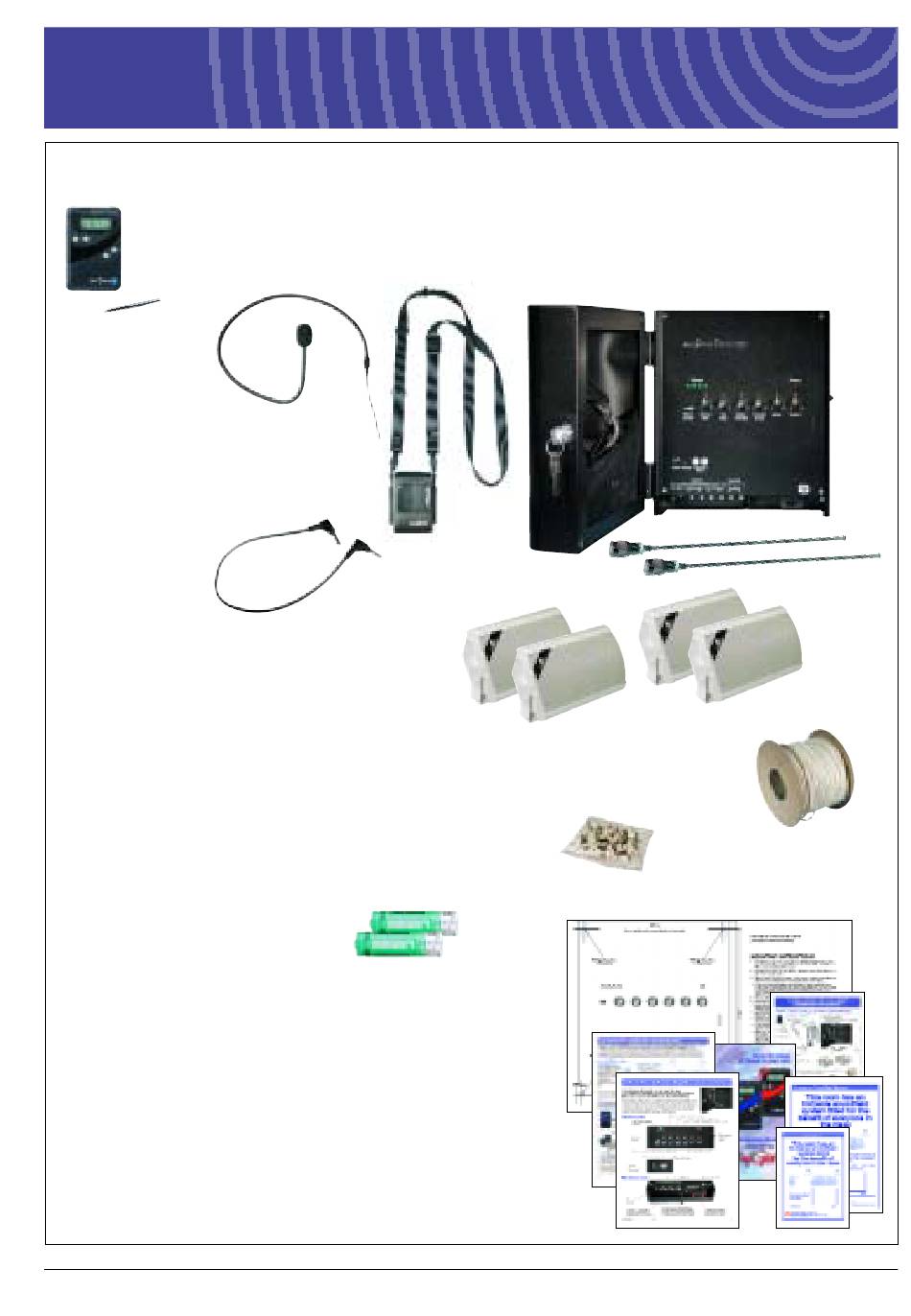

Check contents of kit, you should have the following:
a) fmGenie Transmitter
& twiddling stick
c) Collarworn
microphone
d) Hip pouch
e) Charging lead for
fmGenie
transmitter
f) 2 pairs of speakers (3 pairs for a
6 speaker system!)
g) 100m reel of speaker cable (we know this is too much cable, but
100m reels are the cheapest form of supply)
h) 1 bag of speaker cable clips (using a cabling
staple gun is preferable if you have one)
j) Pair of batteries for
fmGenie transmitter
k) Instruction sheets:
Soundfield fmGenie Diversity Courtesy Card
fmGenie Diversity Receiver/ Amp control &
feature card
Wall & door stickers
Mounting instructions
fmGenie system booklet
This installation instruction booklet
B44FDIVINS – fmGenie Diversity Soundfield Installation Instructions V1.3
Installation Instructions
b) fmGenie Diversity
Receiver/amplifier with two aerials
and wall fixings
1
Advertisement
Related Manuals for Connevans fmGenie B44FDIVINS
Summary of Contents for Connevans fmGenie B44FDIVINS
- Page 1 fmGenie Diversity Soundfield Installation Instructions Check contents of kit, you should have the following: a) fmGenie Transmitter b) fmGenie Diversity & twiddling stick Receiver/amplifier with two aerials and wall fixings c) Collarworn microphone d) Hip pouch e) Charging lead for fmGenie transmitter f) 2 pairs of speakers (3 pairs for a...
- Page 2 fmGenie Diversity Soundfield fmGenie Diversity Soundfield 2. Deciding the easiest cabling run for the speakers. An overview of the installation steps are: Take advantage of existing features such as any wooden picture rails or perhaps notice 1) Decide where the speakers are to be fitted boards (it is much easier to fit cable clips to wood than plaster).
- Page 3 fmGenie Diversity Soundfield fmGenie Diversity Soundfield 3. Deciding where to mount the fmGenie Diversity 5. Setting up and testing the system Receiver/amplifier fmGenie transmitter information Upper trunking This is usually best done by discussing the options with the General instructions for using the fmGenie transmitter are included in the Tutor school staff.
- Page 4 fmGenie Diversity Soundfield fmGenie Diversity Soundfield Check the transmitter Choosing the channel Plug the microphone into the fmGenie transmitter and switch on by You may use any radio channel between 38 and 69. Any number lower holding the power button down until the display appears. Check than 38 defaults to channel 38 and any number higher than 69 defaults that the four green signal bars on the fmGenie Diversity receiver to channel 69 on the Diversity receiver.
- Page 5 fmGenie Diversity Soundfield fmGenie Diversity Soundfield fmGenie Transmitter Battery Charging: Un-mute the transmitter by pressing the STAR button again. Ask your colleague to increase the 'Radio Mic' volume control on the Diversity Normal charging routine. receiver, whilst you continue to talk in the same normal voice as before, until Check the status of the battery bars on the fmGenie transmitter before either..
- Page 6 No user serviceable parts inside. request a technician service visit every time somebody turns a volume to zero or the Refer servicing to authorised representatives of Connevans Limited. cleaner unplugs the mains lead! Remove the mains plug from the wall socket before undertaking any servicing operations.
-
Page 7: Troubleshooting
fmGenie Diversity Soundfield Trouble shooting: If the fmGenie Diversity does not operate as expected check the following: Symptom Probable Cause No red indicator light Unit unplugged, switched off or fuse blown Red indicators solid but no Volume control too low, transmitter not on or muted, speaker sound cable disconnected Red indicators flashing and no...
