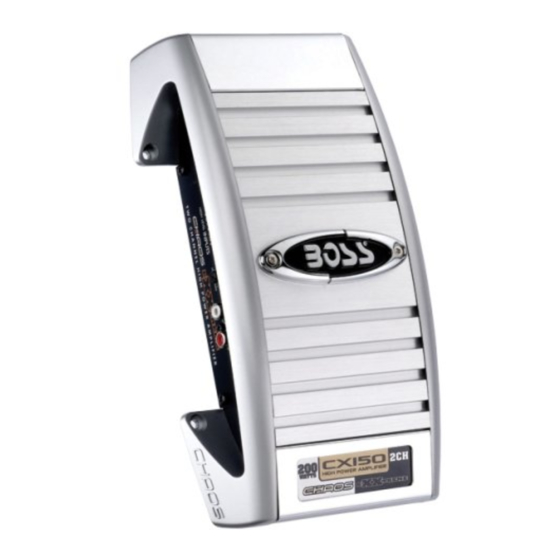

CX150
Two Channel
High Power Car Audio
Amplifier
CX350
Four Channel
High Power Car Audio
Amplifier
Congratulations on your
purchase of a
CHAOS EXXTREME Amplifier.
It has been designed, engineered
and manufactured to bring you
the highest level of performance
and quality, and will afford you
years of listening pleasure.
Thank you for making
your choice for car audio
entertainment!
U S E R ' S M A N U A L
CONTENTS
page
2
Introduction
2
What is included?
3
Features
3
About 2 Ohm operation
4
General precautions
4
Installation precautions
5
Mounting the amplifier
6
Connecting the amplifier
7
Low level input wiring
8
High level input wiring
9
Power and Speaker wiring
10 Troubleshooting
11 Specifications
CHAOS EXXTREME Amplifier User's Manual - page 1
Advertisement
Table of Contents
Related Manuals for Boss Audio Systems Chaos Exxtreme CX150
Summary of Contents for Boss Audio Systems Chaos Exxtreme CX150
- Page 1 CX150 Two Channel High Power Car Audio Amplifier CX350 Four Channel High Power Car Audio Amplifier Congratulations on your purchase of a CHAOS EXXTREME Amplifier. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, and will afford you years of listening pleasure.
-
Page 2: Introduction
Introduction With the CHAOS EXXTREME amplifier series, we are introducing introducing two new models, both designed in the USA. This new series includes a 2-channel and a 4-channel amplifier. These CHAOS EXXTREME models feature a low pass crossover (one for each channel on the CX350), and both high level and RCA low level inputs on the front panel. -
Page 3: Features
Features Your new CHAOS EXXTREME amplifier features the following: • 2 Ohm stable stereo operation with output power increase • Thermal and speaker short protection • Soft turn-on circuit • Remote turn-on/turn-off circuit • Variable input gain control • Nickel-plated RCA low level and high level inputs •... -
Page 4: General Precautions
General precautions Before installing and using your amplifier, please be- come familiar with all the infor- mation contained in this manual. Please keep this manual in a safe place for future reference. • Do not open or attempt to repair this unit yourself. -
Page 5: Mounting The Amplifier
Mounting the amplifier 1. Find a suitable location in the vehicle in which to mount the amplifier. 2. Make sure there is sufficient air circulation around the intended mounting location. 3. Mark the location for the mounting hole screws by positioning the amplifier where you wish to install it. -
Page 6: Connecting The Amplifier
Connecting the amplifier Before doing any wiring, look through this manual and identify the diagrams to follow for power, input and speaker connections for your particular installation. Be sure you understand all the connections before you proceed. 1. Connect the power ground terminal to the closest point on the chassis of the car. -
Page 7: Low Level Input Wiring
Low Level Input Wiring Low-level (RCA) input wiring is preferred for best audio performance. Always use a high-quality RCA cable for best audio performance. NOTE: Do not connect BOTH the high level and low level inputs from your receiver to your amplifier at the same time! 2-Channel Amplifier CX150 POWER... -
Page 8: High Level Input Wiring
High Level Input Wiring, cont. The high level input(s) should only be used when your head unit lacks RCA outputs. If the RCA outputs are not present, connect the speaker outputs from the receiver to the high level input connector of the amplifier. Be sure to observe polarity to avoid audio phase problems. -
Page 9: Power And Speaker Wiring
Power and Speaker Wiring Channel Mode SPEAKER CONNECTIONS Speaker Four Speaker Channel Mode FUSE SPEAKER CONNECTIONS Speaker SPEAKER IMPEDANCE 2-8 OHMS Speaker RIGHT – Speaker – LEFT Speaker BATT+ REMOTE FUSE SPEAKER IMPEDANCE 2-8 OHMS BATT+ POWER CONNECTIONS CHAOS EXXTREME Amplifier User’s Manual - page 9 2-Channel Amplifier CX150 SPEAKER... -
Page 10: Troubleshooting
Troubleshooting If you experience operation or performance problems with this product, compare your installation with the electrical wiring diagram on the previous pages. If problems persist, read the following troubleshooting tips which may help eliminate the problems. SYMPTOM POSSIBLE REMEDY Amplifier will not Check to make sure you have a good ground connection. -
Page 11: Specifications
Specifications Two Channel Car Audio Amplifier MODEL CX150 RMS POWER 50W x 2 into 4 Ohms MAX POWER 100W X 2 into 2 Ohms Min. speaker 2 Ohms impedance 0.01% Frequency response 12Hz-22kHz Signal-to-noise ratio 90dB Channel separation 60dB 7.5A x 1 Fuse rating 6-1/8"... - Page 12 Notes...
