Summary of Contents for Friedrich ZCP08SA
- Page 1 Portable Air Conditioner User Manual MODEL: ZCP08SA ZCP10SA ZCP12SA Thank you for selecting our quality appliance. Please be sure to read this user manual carefully before using. Any question, please contact the professional service for help.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFEGUARDS IMPORTANT - GROUNDING METHOD ELECTRICAL CONNECTIONS DESCRIPTION INSTALLATION INSTRUCTIONS DESCRIPTION OF THE DISPLAY SCREEN MANUAL OF REMOTE CONTROL WATER DRAINAGE METHOD CLEANING START-END OF SEASON OPERATIONS TROUBLESHOOTING... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS ● Disconnect the appliance from its power source during service and when replacing parts and cleaning. ● The appliance shall not be installed in the laundry. ● Please note: Check the nameplate for the type of refrigerant gas used in your appliance. - Page 5 IMPORTANT SAFEGUARDS the presence of inflammable substance or vapor such as alcohol, insecticides, gasoline, etc. ● If the appliance is making unusual sounds or is emitting smoke or an unusual odor, unplug it immediately. ● Do not clean the unit with water. Water can enter the unit and damage the insulation, creating a shock hazard.
- Page 6 IMPORTANT SAFEGUARDS ● The above 4 statements is also accompanied by the risk of fire symbol. This symbol shows a flame in a triangle (warning symbol W021 of ISO 7010). See the following for the French version: AVERTISSEMENT ● Ne pas utiliser de produits permettant d'accélérer le dégel ou de produits de nettoyage autres que ceux recommandés par le fabricant.
- Page 7 IMPORTANT SAFEGUARDS caution, risk of fire According the US and CANDA ruler: CAN ICES-3 (B)/NMB-3(B) Contains FCC ID:2ANDL-TYWE1S Contains IC ID: 23243-TYWE1S FCC Caution ● This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 8 IMPORTANT SAFEGUARDS -Consult the dealer or an experienced radio/TV technician for help. The distance between user and device should be no less than 20cm. IC Warning This device complies with Industry Canada’s license-exempt RSS’s. Operation is subject to the following two conditions: (1) This device may not cause interference;...
-
Page 9: Important - Grounding Method
IMPORTANT - GROUNDING METHOD This product is factory equipped with a power supply cord that has a three- pronged grounded plug. It must be plugged into a mating grounding type receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. -
Page 10: Description
DESCRIPTION ZCP08SA\ZCP10SA: 1.Control panel 2.Deflector 3.Display screen 4. Handle (both sides) 5. Castors 6. Intake grille 7. Remote controller holder 8. Power cable 9. Intake grille ZCP12SA: 10. Hooks 11. Condenser drain 12. Plug fixer 13. Air outlet grille 14. Middle drainage... -
Page 11: Installation Instructions

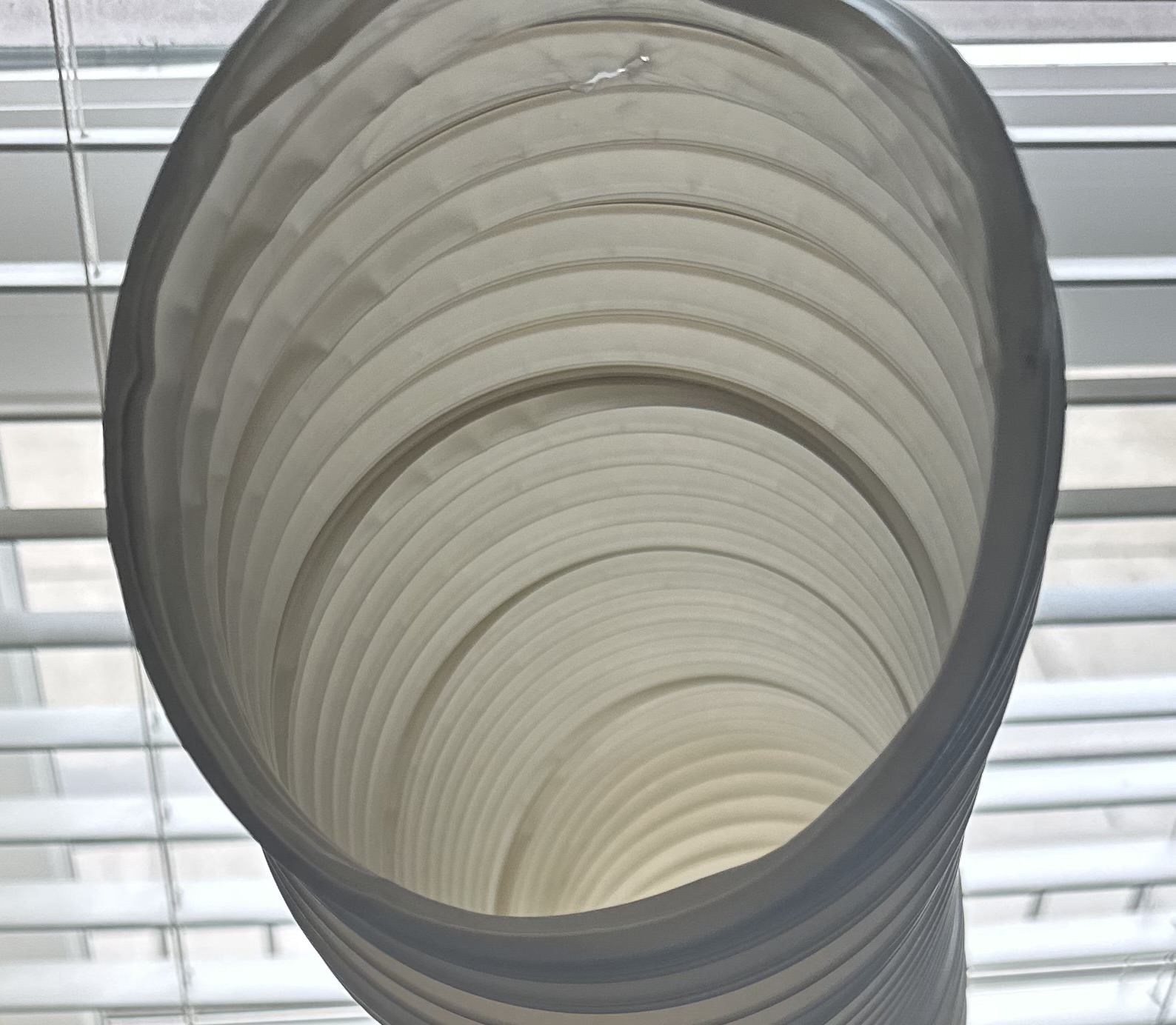

INSTALLATION INSTRUCTIONS In the Cool Mode the appliance must be placed close to a window or opening so that the warm exhaust air can be ducted outside. First position unit on a flat floor and make sure there's a minimum of 18” (45cm) clearance around the unit, Extend the hose and is within the vicinity of a single circuit outlet power source. - Page 12 INSTALLATION INSTRUCTIONS WINDOW SLIDER KIT INSTALLATION 1:Parts: A) Panel B) Panel with one hole C) Panel without hole (maybe not supplied) D) Screw to lock window kit in place 2: Assembly: Slide Panel B and C into Panel A and size to widow width.
- Page 13 INSTALLATION INSTRUCTIONS 1. Cut the foam seal(adhesive type) to the proper length and attach it to the window sash. 2. Attach the window slider kit to the window sash. Adjust the length of the window slider kit according to the width of window. If necessary, mark the kit and cut one end down to properly fit the window.
- Page 14 INSTALLATION INSTRUCTIONS LOCATION ● The unit should be placed on a firm foundation to minimize noise and vibration. For safe and secure positioning. place the unit on a smooth, level floor strong enough to support the unit. ● The unit has casters to aid placement, but it should only be rolled on smooth, flat surfaces.
-
Page 15: Description Of The Display Screen
DESCRIPTION OF THE DISPLAY SCREEN 1.COOL symbol 2.HEAT symbol * 3.Fan Speed Indicator 4.TIMER symbol 5.Temperature symbol 6.Temperature indicator 7.WIFI symbol ** NOTE: * only heat pump models have this function. ** only WIFI model have this function. NOTE: When the unit is connected with phone, the WIFI symbol will illuminate. - Page 16 DESCRIPTION OF THE DISPLAY SCREEN Power ON √ Plug into the mains socket. Once plugged in, the appliance will be in standby mode. Press the button to make the appliance turn on. The unit will power on to the last function actively in use when powered off.
- Page 17 DESCRIPTION OF THE DISPLAY SCREEN HEAT mode * * only the heat pump model will have this function. To set this mode correctly: ● Press the button repeatedly until the symbol appears. ● Select the target temperature 55℉-81℉ (13℃-27℃) by pressing the button until the corresponding value is displayed.
- Page 18 DESCRIPTION OF THE DISPLAY SCREEN DRY mode Ideal to reduce room humidity (spring and autumn, damp rooms rainy periods, etc). In dry mode, the appliance should be prepared in the same way as for cool mode, with the air exhaust hose attached to enable the moisture to be discharged outside.
- Page 19 DESCRIPTION OF THE DISPLAY SCREEN SELF-DIAGNOSIS The appliance has a self diagnosis system to identify a number of malfunctions. Error messages are displayed on the appliance display. IF DISPLAYED WHAT SHOULD I DO? The appliance is fitted with a frost protection device to avoid excessive formation of ice.
-
Page 20: Manual Of Remote Control
MANUAL OF REMOTE CONTROL On/Off button Fan speed button Increase button Mode button Swing button Decrease button Sleep button Timer button Turbo* Unit Switch button COOL symbol SLEEP symbol DRY symbol Timer ON symbol FAN symbol Timer OFF symbol Fan speed symbol HEAT symbol Turbo symbol SMART symbol... - Page 21 MANUAL OF REMOTE CONTROL INSERTING OR REPLACING THE BATTERIES ● Remove the cover on the rear of the remote control; ● Insert two "AAA" 1.5V batteries in the correct position (see instructions inside the battery compartment); ● Replace the cover. NOTE: √...
- Page 22 MANUAL OF REMOTE CONTROL HEAT mode * *means only the heat pump model have this function. If the appliance is cooling only, when choose this function, will turn to FAN mode. ● Press the button a number of times until the symbol appears.
- Page 23 MANUAL OF REMOTE CONTROL DRY mode Ideal to reduce room humidity (spring and autumn, damp rooms rainy periods, etc). In dry mode, the appliance should be prepared in the same way as for cool mode, with the air exhaust hose attached to enablethe moisture to be discharged outside.
- Page 24 MANUAL OF REMOTE CONTROL SLEEP function This function is useful for the night as it gradually reduces operation of the appliance. To set this function correctly: ● Select the cool or heat mode as described above. ● Press the “ ”...
- Page 25 MANUAL OF REMOTE CONTROL Programming shut down ● When the appliance is running, press the button, the screen will display 0.5-24 hours, the symbol and “ ” symbol is flash. ● Press the button several times until the corresponding time is displayed. Press the button again, the timer will become active, then the symbol will be...
- Page 26 MANUAL OF REMOTE CONTROL TIPS FOR CORRECT USE To get the best from your appliance, follow these recommendations: Fig.21 ● Close the windows and doors in the room to be air conditioned (fig. 21). When installing the appliance semi-permanently, you should leave a door slightly open (as little as 1 cm) to guarantee correct ventilation;...
-
Page 27: Water Drainage Method
WATER DRAINAGE METHOD When there is excess water condensation inside the unit, the appliance stops running and shows “ ”(FULL TANK as mentioned in SELF-DIAGNOSIS). This indicates that the water condensation needs to be drained using the following procedures: Manual Draining Fig.24) Water may need to be drained in high humidity areas 1 .Unplug the unit from power source. - Page 28 WATER DRAINAGE METHOD Middle drainage When running the unit in Dry mode, you can choose the way to drain: 1. Unplug the unit from the power source. 2. Remove the drain cap (Fig.A). While doing this operation some residual water may spill so please have a pan to collect the water.
-
Page 29: Cleaning
CLEANING Before cleaning or maintenance, turn the appliance off by pressing the button on the control panel or remote control, wait for a few minutes, then unplug the unit. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth then dry with a dry cloth. ●... -
Page 30: Start-End Of Season Operations
START-END OF SEASON OPERATIONS START OF SEASON CHECKS Make sure the power cable and plug are undamaged and the earth system is efficient. Follow the installation instructions precisely. END OF SEASON OPERATIONS To empty the internal circuit completely of water, remove the cap(fig. -
Page 31: Troubleshooting
TROUBLESHOOTING ROOM CONDITIONS Temperature of room 64℉-95℉ (18 35℃)(Cooling) ℃- Temperature of room 50℉-77℉ (10℃-25℃)(Heating) TROUBLESHOOTING PROBLEM CAUSE SOLUTION The appliance ● There is no current ● Check the power supply does not come on ● It is not plugged in ●... - Page 32 TROUBLESHOOTING This delay is part of normal The internal compressor safety The appliance ● ● operation and the unit will be device prevents the appliance does not operate for able to operate after three from being restarted until three about three minutes minutes have passed minutes have elapsed since it after restarting it...
