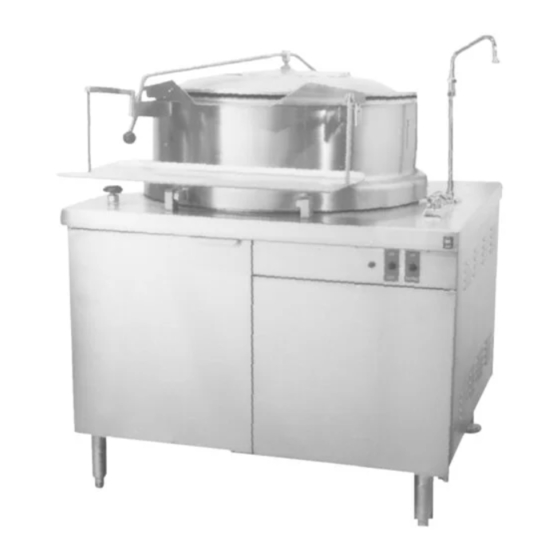

Direct steam power tilting or stationary kettles 30, 40, 60 gallon
Hide thumbs
Also See for KCH-30DS
:
Brochure & specs
(12 pages)
,
Specifications
(2 pages)
,
Installation operation & maintenance
(17 pages)
1
2
3
4
5
6
7
8
9
10
11
12
13
page
of
13
Go
/
13
Bookmarks
Advertisement
Quick Links
Download this manual
See also:
Installation Operation & Maintenance
PARTS LIST
DIRECT STEAM POWER TILTING OR STATIONARY KETTLES
30, 40, 60 GALLON
MODELS:
KCH-30, 40, 60DS
April 6, 2007
BLODGETT OVEN CO ▪ 44 lakeside Ave ▪
Burlington, VT 05446
Tel. 800-331-5842 ▪ Fax 802-860-3732 ▪
www.blodgett.com
1
2007-06-26
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Related Manuals for Blodgett KCH-30DS
Kettle Blodgett KCH-30DS Installation Operation & Maintenance
Kch-ds series direct steam cabinet base tilting kettle (17 pages)
Electric Steamer Blodgett CONVECTION STEAMERS KETTLES BRAISING PANS Brochure & Specs
Blodgett user manual convection steamers kettles braising pans (12 pages)
Kettle Blodgett KCH-30DS Specifications
Kch-ds series direct steam modular cabinet base kettle with heavy duty hydraulic tilt (2 pages)
Kettle Blodgett KLS-20G Installation, Operation And Maintenance Manual
Blodgett operation maintenance gas fired tri-leg stationary kettle (39 pages)
Kettle Blodgett KLS-G SERIES Installation Operation & Maintenance
Gas stationary steam jacketed kettle (12 pages)
Kettle Blodgett KPS-20E Installation Operation & Maintenance
Kps-e series; kls-e series; klt-e series (9 pages)
Kettle Blodgett KLT-G Series Installation & Operation Manual
Klt-g series gas fired tri-leg tilting kettle (38 pages)
Kettle Blodgett KTG-E Installation & Operation Manual
Ktg-e electric table top kettle with manual gearbox tilt mechanism (22 pages)
Kettle Blodgett KTT-10DS Installation, Operation & Maintenance Manual
Ktt-ds series direct steam table top tilting kettle (8 pages)
Kettle Blodgett KLS-100DS Installation Operation & Maintenance
Kls-ds and kps-ds series direct steam tri-leg stationary kettle and direct steam pedestal stationary kettle (13 pages)
Kettle Blodgett KTT-E Series Installation & Operation Manual
Ktt-e series electric table top tilting kettle (20 pages)
Kettle Blodgett KTT-20E Installation And Operation Manual
Electric floor model tilting kettle (20 pages)
Kettle Blodgett 20E-KLS Installation Operation & Maintenance
Electric stationary floor kettle (24 pages)
Kettle BLODGETT KLT-G Series Installation Operation & Maintenance
Gas tilting floor kettle (32 pages)
Kettle Blodgett KLT-E Series Installation Operation & Maintenance
Electric tilting floor kettle (24 pages)
Kettle Blodgett KPT-DS Series Installation Operation & Maintenance
Direct steam tilting floor kettle (20 pages)
Summary of Contents for Blodgett KCH-30DS
Page 1: Parts List
PARTS LIST DIRECT STEAM POWER TILTING OR STATIONARY KETTLES 30, 40, 60 GALLON MODELS: KCH-30, 40, 60DS April 6, 2007 BLODGETT OVEN CO ▪ 44 lakeside Ave ▪ Burlington, VT 05446 Tel. 800-331-5842 ▪ Fax 802-860-3732 ▪ www.blodgett.com 2007-06-26...
Page 2
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS 2007-06-26...
Page 3
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS ITEM Part Number 42936 41791 41789 40606 40609 41784 42935 42931 42940 40612 40613 41044 42953 42943 40527 40528 41790 40615 40347 41470 41472 41466 41467 41466 41467 DESCRIPTION Pipe 3/4 x 22"...
Page 4
40445 42381 43387 42017 42378 42379 42019 42015 41217 NOT SHOWN. ** SELECT AS REQUIRED. KCH-30DS, KCH-40DS, KCH-60DS DESCRIPTION Magnetic Catch Catch Screws Funnel Assembly Swivel Drain Assembly Funnel Strainer Pilot Light - Amber ON/OFF Decal Power Switch Tilt Decal...
Page 5
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS 2007-06-26...
Page 6
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS ITEM Part Number 40786 40787 40788 40649 40650 40651 40792 40652 * ** 40789 * ** 40790 * ** 40791 41928 40897 40793 41937 41929 43388 40657 40660 42255...
Page 7
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS 2007-06-26...
Page 8
42162 42164 40109 43389 401114 For covers, see Figure 4. ** SELECT AS REQUIRED. KCH-30DS, KCH-40DS, KCH-60DS DESCRIPTION Knob Handle Assembly, 20 gal. Kettle Handle Assembly, 30 gal. Kettle Handle Assembly, 40 gal. Kettle Handle Assembly, 60 gal. Kettle Bolt...
Page 9
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS FIGURE 4 2007-06-26...
Page 10
40098 40259 42286 12 ** 41512 41513 41514 41515 ** SELECT AS REQUIRED. KCH-30DS, KCH-40DS, KCH-60DS DESCRIPTION Lock Pin End Lock Plate Stationary Disc Core Spring Handle Assembly, 20 Gal. Kettle (8-2028-M) Handle Assembly, 30 Gal. Kettle (8-2028-1M) Handle Assembly, 40 Gal. Kettle (8-2028-2M) Handle Assembly, 60 Gal.
Page 11: Draw-Off Valve
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS DRAW-OFF VALVE FIGURE 5 2007-06-26...
Page 12
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS ITEM Part Number 40553 41809 40662 40559 40560 40562 40561 43246 DESCRIPTION 1-1/2" DRAW-OFF VALVE ASSEMBLY Acorn Nut 10-24 UNC Handle, Stainless Steel Gland Nut Bonnet “O” Ring Stem Assembly...
Page 13
PARTS LIST, DIRECT STEAM TILTING OR STATIONARY KETTLES KCH-30DS, KCH-40DS, KCH-60DS ITEM Part Number 40554 41809 40662 40563 40564 40566 40565 42481 ITEM Part Number 40556 40567 40568 40569 40570 40572 43390 43248 DESCRIPTION 2" DRAW-OFF VALVE ASSEMBLY Acorn Nut 10-24 UNC...
