UK - Installation and Operating Instructions
NL
- Installations- og brugsanvisning
DE
- Montage- und Gebrauchsanweisung
BE
- Conformiteitsverklaring - België

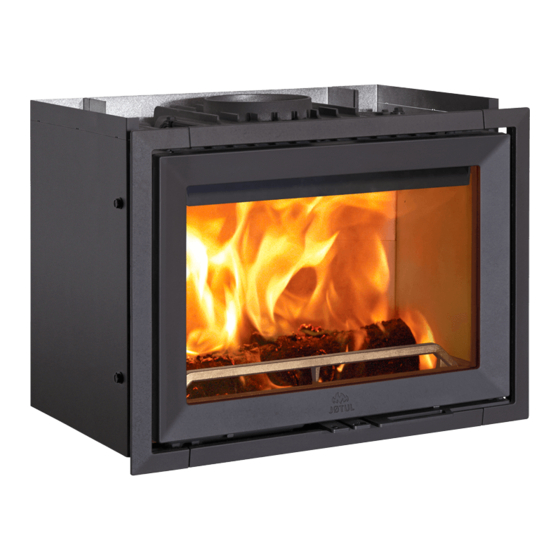

Jøtul I 520 F
The manuals which are enclosed with the product must be kept throughout the product's entire service life. De bij de haard meegeleverde handleidingen
moeten gedurende de volledige gebruiksduur van de haard bewaard blijven. Das im Lieferumfang des Produkts enthaltene Begleitmaterial ist über die gesamte
Nutzungsdauer aufzubewahren.
Jøtul I 520 FL
Jøtul I 520
Jøtul I 520 FR
3
35
66
98
Jøtul I 520 FRL

Advertisement

Table of Contents
loading

Related Manuals for Jøtul 520 Series

Summary of Contents for Jøtul 520 Series

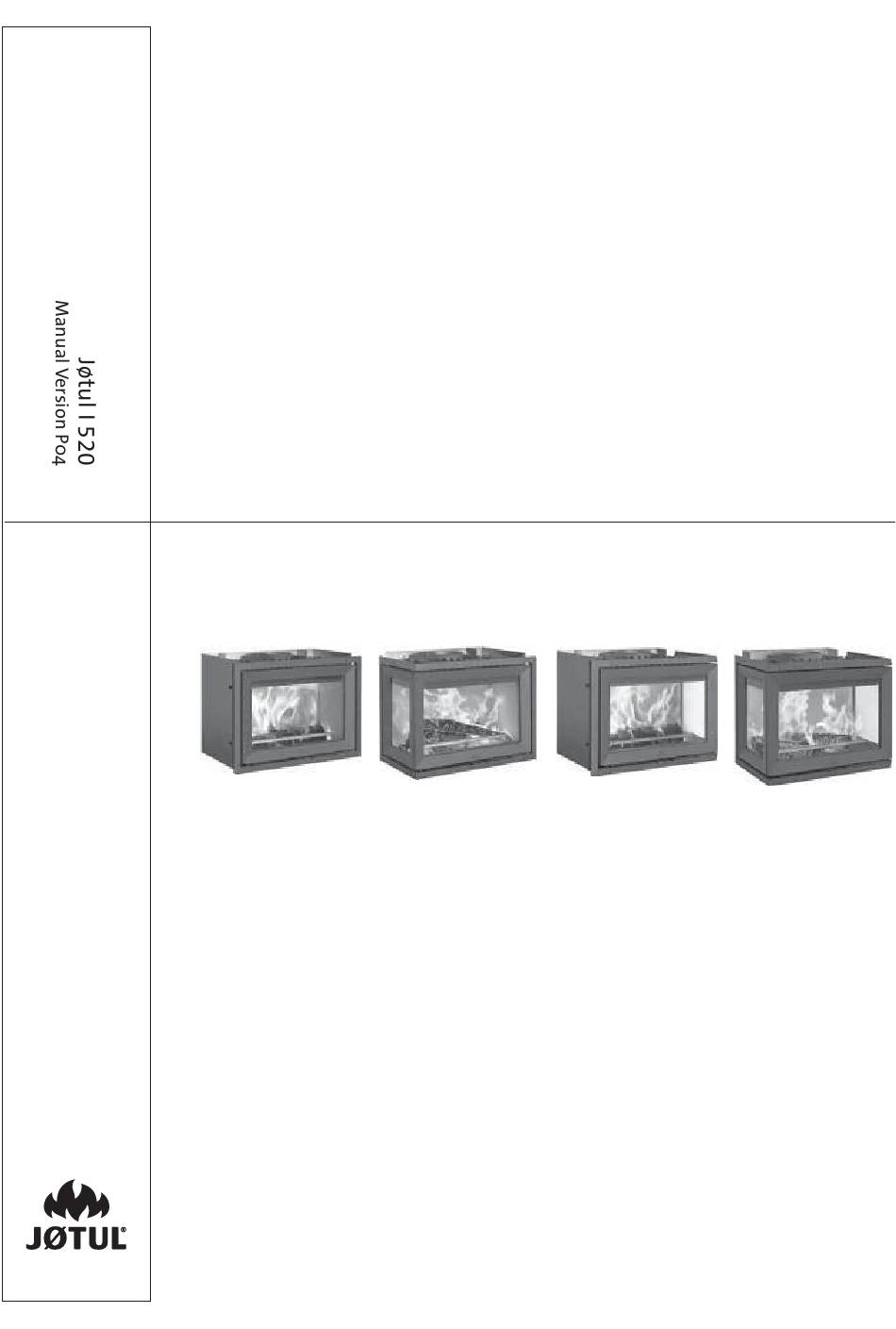

  • Page 1 Jøtul I 520 UK - Installation and Operating Instructions - Installations- og brugsanvisning - Montage- und Gebrauchsanweisung - Conformiteitsverklaring - België Jøtul I 520 F Jøtul I 520 FL Jøtul I 520 FR Jøtul I 520 FRL The manuals which are enclosed with the product must be kept throughout the product’s entire service life. De bij de haard meegeleverde handleidingen moeten gedurende de volledige gebruiksduur van de haard bewaard blijven.
  • Page 2 EU no. 215/1186 - 24/04/2015 Datasheet / Fiche Technique / Ficha técnica / Scheda dati / Datasheet / Datenblatt Requirements / Exigences / Requisitos / Requisiti / Vereisten / Forderungen Supplier / Jøtul AS Fabricante / Fornitore / Vereisten / Lieferant: Product models Jøtul I 520 Serien:...

  • Page 3: Table Of Contents

    ENGLISH 1.0 Regulatory information Table of contents The installation of a fireplace must take place in accordance with Installation manual with technical data each country’s laws and regulations. Regulatory information .........3 All local ordinances, including those that refer to national and European standards, must be complied with when products are installed.

  • Page 4: Technical Data

    ENGLISH 3.0 Safety • The fireplace becomes hot when lit and may cause burns if touched. • Only remove ash when the fireplace is cold. Ash can contain NB! To guarantee optimal performance and safety, Jøtul stoves hot embers and should therefore be placed in a non- must be fitted by a qualified installer.
  • Page 5 ENGLISH Requirements for protection of inflammable Distance to non-inflammable wall floors in front of the fireplace “Non-inflammable wall” here means a non-bearing wall of continuous brickwork/concrete. The floor in front of the fireplace must be protected by a sheet of metal or other non-inflammable material. The recommended minimum thickness is 0.9 mm.
  • Page 6 ENGLISH It is particularly important to reach operating temperature as quickly as possible on days on which the draught in the chimney is poor due to unfavourable wind and weather conditions. Make sure the fuel ignites as quickly as possible. Practical tip: Chop the wood into much smaller pieces and use an extra firelighter.
  • Page 7 ENGLISH...
  • Page 8 ENGLISH...
  • Page 9 ENGLISH...
  • Page 10 ENGLISH...
  • Page 11 ENGLISH...
  • Page 12 ENGLISH 4.7 Preparation/installation Outside air connection An optional outside air connection kit is available to order. The product comes in one package. (Comes with its own manual - Outside air connection Ø 100, item no. 10026187). The duct connector fits Ø100 and Ø 80 fresh air Fig.
  • Page 13 ENGLISH Fig. 4-b Installation of leg rack (optional) If building a brick surround, the leg base (optional, item no. 51044759) must be used. See Fig. 1 e and f. Door hinges The door is left-hinged as standard but can be changed to right- hinged if required.
  • Page 14 ENGLISH 4.8 Connection to chimney Rear-installed smoke outlet (rotated 45°) from the outside Before installing the product, you need to decide how it is to be connected to the chimney. Installation of the smoke bell The smoke bell can be installed from the outside and the inside. It is factory-fitted on the outside for a top outlet, but can be mounted to a top outlet from the inside.
  • Page 15 ENGLISH Top outlet Converting to a rear outlet The product is factory-fitted for a top outlet. The inner rear heat The smoke outlet can be converted to a rear outlet if necessary. shield should be raised to protect the rear wall against heat from The smoke bell can also be installed from the inside if the space the flue pipe.
  • Page 16 ENGLISH Fig. 10 Fig. 12 5. Screw the smoke bell onto the burn chamber again using the same two screws (A). 4.9 Installation 3. Remove the two screws (A) that are holding the smoke bell Installation of internal smoke bell to the burn chamber.
  • Page 17 ENGLISH Fig. 14 Fig. 16 4. Turn one corner towards you and pull it out sideways. Fig. 17 2. Remove the side burn plate (A) by lifting it up slightly while holding the baffle (B) up. Pull the side burn plate out at the bottom and pull it out.
  • Page 18 ENGLISH Fig. 19 Levelling the insert It is important that the insert is level when installing it inside a brick or prefabricated surround and hearth/open fireplace. Fig. 22 7. Remove the two screws (A) on either side of the smoke bell and lift it off.
  • Page 19 ENGLISH Fig. 24 Fig. 26 3. Turn one corner towards you and pull the inner bottom out. 5. Use the Allen key supplied to adjust the levelling screws (A) until the burn chamber is level and at the correct height. 6.
  • Page 20 ENGLISH 4.10 Installing inside an open fireplace The Jøtul I 520 is designed to be placed inside a pre-existing, code-compliant masonry fireplace. The fireplace must satisfy the requirements regarding installation against combustible materials. It is important that the convection air openings are sufficiently large (500 / 750 cm 2 ) to utilize the heat emission from the product.
  • Page 21 ENGLISH Insulation tight around the flue pipe Air opening min. 400 cm 2 Options for outside air connection Sheet metal grid max. 813 mm...
  • Page 22 ENGLISH 2) Installation in open fireplace Installation against a straight wall with plenty of space at the sides, low height. The illustration shows the Jøtul I 520 F. In this example, a metal grille is used (optional - item no. 50045747) to fill the space between the insert and the fireplace. Fig.
  • Page 23 ENGLISH Insulation tight around the flue pipe Air opening min. 400 cm 2 Options for outside air connection Sheet metal grid max. 1050 mm...
  • Page 24 ENGLISH 3) Installation in open fireplace Installation against a straight wall with little space directly in front. The illustration shows the Jøtul I 520 F with a smoke bell rotated 45° from the inside. See Fig. 29 for details. Fig. 29...
  • Page 25 ENGLISH min. 650 mm...
  • Page 26 ENGLISH Placing an insert inside an open fireplace Fig. 33 Fig. 30 1. Cut along the knock-out holes at the top of the heat shield and remove that section. Fig. 31 3. Slide the burn chamber in on the moulded runners on the bottom until it is in place.
  • Page 27 ENGLISH Fig. 35 Fig. 37 8. If installing as shown in example 3, we recommend threading the flue pipe in through the door opening of the burn chamber. Push the flue pipe with the smoke bell on in through the door opening and the opening for the smoke bell and any insulation material and up inside the chimney.

  • Page 28: Daily Use

    ENGLISH 5.0 Daily use When building a brick surround If building a brick surround, a leg rack (optional, item no. 51044759) must be used. NB: Maximum leg length must be used! See Fig. 1 e and 1 f. The base is designed so that space is left to the 5.1 Control handles bricks on the inside of the frame that is provided.
  • Page 29 ENGLISH 5.2 Lighting the fire 5.3 Stoking the fire Important! Fig. 43 Please note that if too little wood is used when lighting the fire, or if the pieces of wood are too large, it will not be possible to attain the optimum working temperature in the burn chamber.

  • Page 30: Maintenance

    ENGLISH Warning against overheating Be especially careful never to use the following materials as fuel in your fireplace: Never overheat the fireplace • Household rubbish, plastic bags, etc. • Painted or impregnated timber (which is extremely toxic). The fireplace has been designed and tested for use at a nominal •...

  • Page 31: Servicing

    ENGLISH 7.0 Servicing 6.3 Cleaning and soot removal Soot deposits may build up on the internal surfaces of the Warning! Any unauthorised changes to the product are illegal! fireplace during use. Soot is a good insulator and will therefore Only original spare parts may be used! reduce the fireplace’s heat output.
  • Page 32 ENGLISH Fig. 46 Fig. 48 5. Turn one corner towards you and pull it out sideways. 7. Lower the exhaust deflector and lift it out. 8. When refitting, follow the same procedure in reverse order. Fig. 47 7.2 Replacing the air duct and inner bottom It is important that the insert is level when installing it inside a brick or prefabricated surround and hearth/open fireplace.

  • Page 33: Optional Extras

    ENGLISH 8.0 Optional extras Fig. 50 8.1 Leg Rack, complete Item no. 51044759 8.2. Door lock, complete, left For right-hinged door Item no. 50045754 8.3 Frames Frame for the Jøtul I 520 F Item no. 50045750 Frame for the Jøtul I 520 FL/FR Item no.

  • Page 34: Operational Problems - Troubleshooting

    ENGLISH 9.0 Operational problems - 11.0 Guarantee terms troubleshooting Our guarantee covers: Jøtul AS guarantees that the external cast-iron parts are Poor draught free from defects in materials or manufacturing at the time of purchase. You may extend the guarantee on the Check the length of the chimney and that it complies with external cast-iron parts to 25 years from the date of delivery national laws and regulations.
