TITAN Zero-Turn-Radius Riding Mowers
Model No. All Models
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
3
Note: Determine the left and right sides of the machine from the normal operating position.
1
Connecting the Battery
No Parts Required
Procedure
1. Locate the battery and negative battery cable in the
center of the machine.
2. Remove the black plastic cap from the negative
battery post. Remove the fasteners from the negative
battery cable and use them to secure the negative
battery cable to the negative battery post (Figure 1).
© 2009—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
Description
No parts required
No parts required
Ignition Key
Hose coupling
Operator's Manual
Engine Operator's Manual
Operator Training Material
Register at www.Toro.com.
Qty.
–
Connect the battery.
Set up the motion control levers and the
–
Seat.
1
1
1
Complete the Setup.
1
1
4
3
2
1

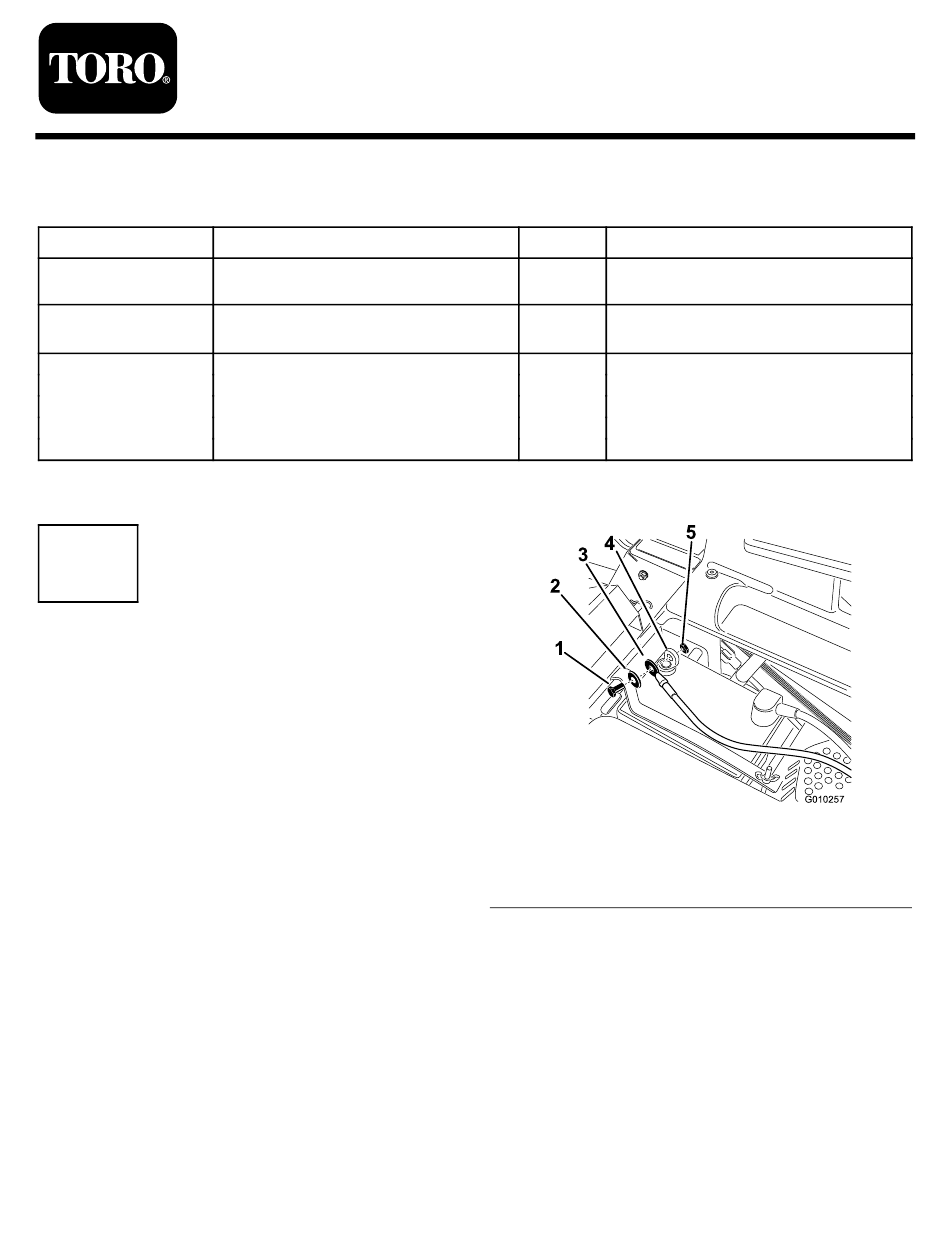

Figure 1
1. Bolt
2. Washer
3. Negative battery cable
Form No. 3360-964 Rev A
Setup Instructions
Use
5
G010257
4. Negative battery post
5. Nut
Original Instructions (EN)
Printed in the USA.
All Rights Reserved
Advertisement
Related Manuals for Toro TITAN Zero-Turn-Radius
Summary of Contents for Toro TITAN Zero-Turn-Radius
- Page 1 Form No. 3360-964 Rev A TITAN Zero-Turn-Radius Riding Mowers Model No. All Models Setup Instructions Loose Parts Use the chart below to verify that all parts have been shipped. Procedure Description Qty. – No parts required Connect the battery. Set up the motion control levers and the –...
- Page 2 Setting Up the Motion Control Levers and the Seat No Parts Required Procedure 1. Remove the upper bolt (3/8 x 1 inch) and washer; loosen the lower bolt (3/8 x 1 inch) as shown in Figure 2. 2. Align the holes in the motion control lever with the holes in the control arm shaft and install the bolt and washer removed previously (Figure 2).
- Page 3 B. Slide the seat rod out from the brackets and seat frame. C. Rotate the seat 180 degrees and install it into the bracket you removed it from, using the rod and hairpin cotters removed previously. D. Connect the interlock switch cable to the seat. E.
- Page 4 Completing the Setup Parts needed for this procedure: Ignition Key Hose coupling Operator’s Manual Engine Operator’s Manual Operator Training Material Procedure Checking the Tire Pressure Check the front and rear tires for proper inflation. Refer to Checking the Tire Pressure in the Operator’s Manual for the recommended inflation pressure.
