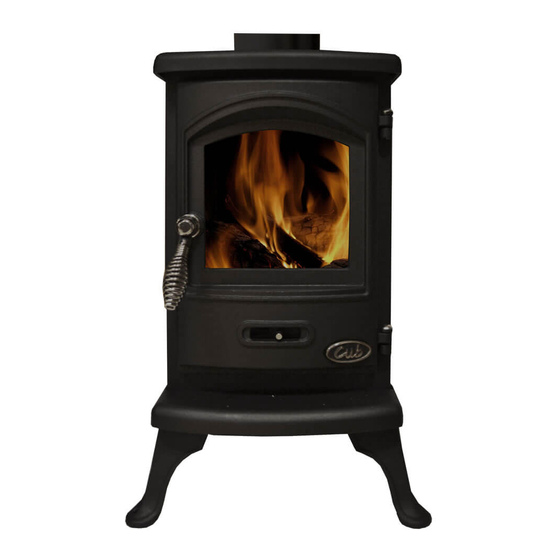

(Shown with optional rear heat shield)
INSTALLATION AND OPERATING INSTRUCTIONS
LEAVE THIS DOCUMENT WITH THE HOUSEHOLDER!
All Tiger Stoves exceed the safety and performance requirements of European Standards
Intermittent burning solid fuel roomheaters for installation with a single dedicated chimney.
I declare that this information is true, these products meet the requirements of Harmonised Standards and are fit for sale.
Signed on behalf of the manufacturer by Glyn Hughes, Design Engineer, at Winster, Derbyshire, England 4. Oct. 2019
Read these instructions! Use only recommended fuels!
This document, when completed by the installer, constitutes part of a 'Hearth Notice' for
purposes of Building Law. It must be left with the householder and placed where it can easily
be found.
INSTALLED AT LOCATION:
BY:
EMERGENCY CONTACT:
I assert that this installation is safe, has been lit and demonstrated to the householder,
conforms with current building regulations and with these instructions
SIGNED:
TO FIND A QUALIFIED INSTALLER, FUEL SUPPLIER or CHIMNEY SWEEP, CONTACT:
UK: The Solid Fuel Association, 7 Swanwick Court, Alfreton, Derbyshire DE55 7AS Tel:0845-601-4406 www.solidfuel.co.uk
RoI: Irish Nationwide Fireplace Organisation, 162 Capel Street, Dublin 1 Tel:01-801-5959 www.fireplace.ie
Distributed only by: Percy Doughty & Co, Imperial Point, Stone Hill Rd, Farnworth, Bolton BL4 9TN
Independently tested in 2019 by SGS Nederland BV, Arnhem Environmental
Laboratory, CEN Approved Laboratory No 0608
Fuel
Test Standard
Test Cycle
Settings
Flue Draught Pa (ins WG)
Efficiency %
Recommended Output Rating kW
Mean Flue Gas Temp Rise ºC
Minimum air entry requirement
Minimum Clearance to combustibles (allow
min 50mm clearance to non-combustibles)
NOx mg/m³
CO %
CxHy mg(C)/m³
Gas flow g/sec
Smoke Emission mg/m³
Tel: 01204-868-550
www.tiger-stoves.com
1
Wood Logs (Beech)
EN 13240 (Safety & Performance)
EN16510-1 (Emissions)
1x 0.75kg log every 0.75hrs
Air slide closed
500mm (150mm at rear with heat shield fitted)
- but see further instructions inside
23mg/m³ (≈ 0.29 g/hr)
DATE:
Solid Fuel Stoves Manual v177. Issued -
04/10/2019 (464)
LOW-EMISSIONS SOLID
FUEL HEATING STOVE
Eco 2022 version
11
76%
4.0 kW
264
2200 mm²
101
0.05
29
4.6
Flue Draught
measured on
commissioning:
Pa
WG
Fuel used on
commissioning
Advertisement
Summary of Contents for Tiger Cub
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS LEAVE THIS DOCUMENT WITH THE HOUSEHOLDER! All Tiger Stoves exceed the safety and performance requirements of European Standards Intermittent burning solid fuel roomheaters for installation with a single dedicated chimney. Independently tested in 2019 by SGS Nederland BV, Arnhem Environmental...
- Page 2 •Substantially straight •Insulated - to keep the The Cub is a freestanding solid multi-fuel heating stove. gases hot so that they rise INSTALLING a stove is a 'controlled service', the law expects •At least 2m high that it is either supervised by a qualified installer or that the •Accessible from both ends...
- Page 3 frames etc, especially in older buildings. It is commonly accepted KEEPING THE WINDOW CLEAN Simply operating the stove for that this alone may suffice for appliances below about 5kW a few minutes at high output will often burn-off any deposits left output.
- Page 4 China and the UK from components manufactured in Japan, China, the USA and the UK The Tiger stove designs are registered at the UK Patent Office and protected by Copyright ©, Patent and UK Design Right , Glyn Hughes 2006-2019.
