Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
Instruction No
Instruction No
Version
Version
9172448
9172448
1.0
1.0
M8902127
M8902127
© Volvo Car Corporation
Part. No.
Part. No.
Load carriers
Load carriers
Load carriers- 9172448 - V1.0
Page 1 / 5
Advertisement
Related Manuals for Volvo Load carriers
Summary of Contents for Volvo Load carriers

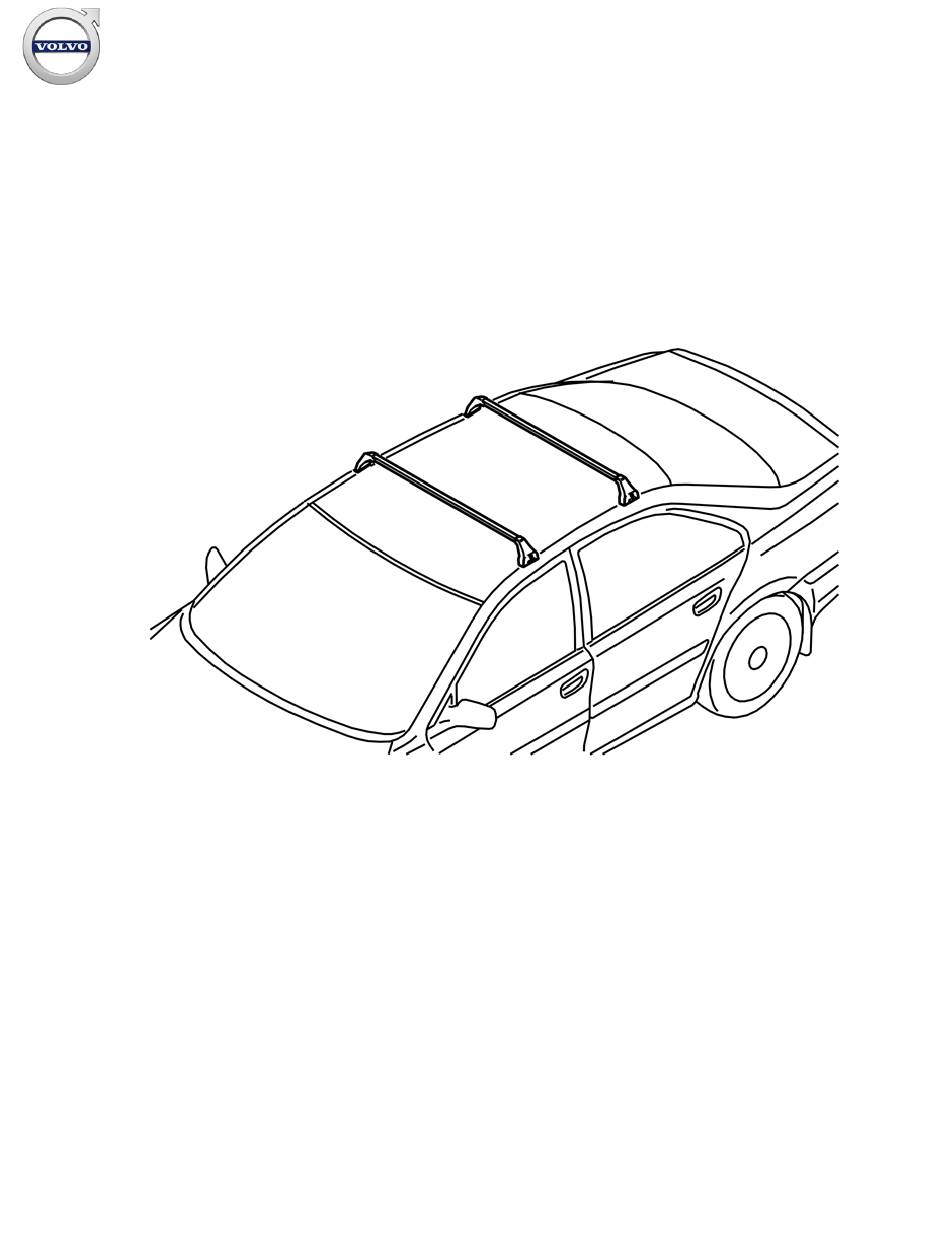

- Page 1 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Instruction No Instruction No Version Version Part. No. Part. No. 9172448 9172448 Load carriers Load carriers M8902127 M8902127 © Volvo Car Corporation Load carriers- 9172448 - V1.0 Page 1 / 5...
- Page 2 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden M8901692 © Volvo Car Corporation Load carriers- 9172448 - V1.0 Page 2 / 5...
- Page 3 In the event of any problems with the instructions or the accessory, contact your local Volvo dealer. Positioning and securing the load carriers Positioning and securing the load carriers Find the locating pins for the securing the load carrier. These locating pins are between the roof edge and the roof trim strip.
- Page 4 Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden Carry out points 2-4 on both the load carriers, and on both of their sides: Position the load carrier according to the decal under the cover Align the guide holes (1) with the locating pins. Start on one side Carefully lower the mounting on the other side down towards the roof.
