Olympus IPLEX TX Quick Manual

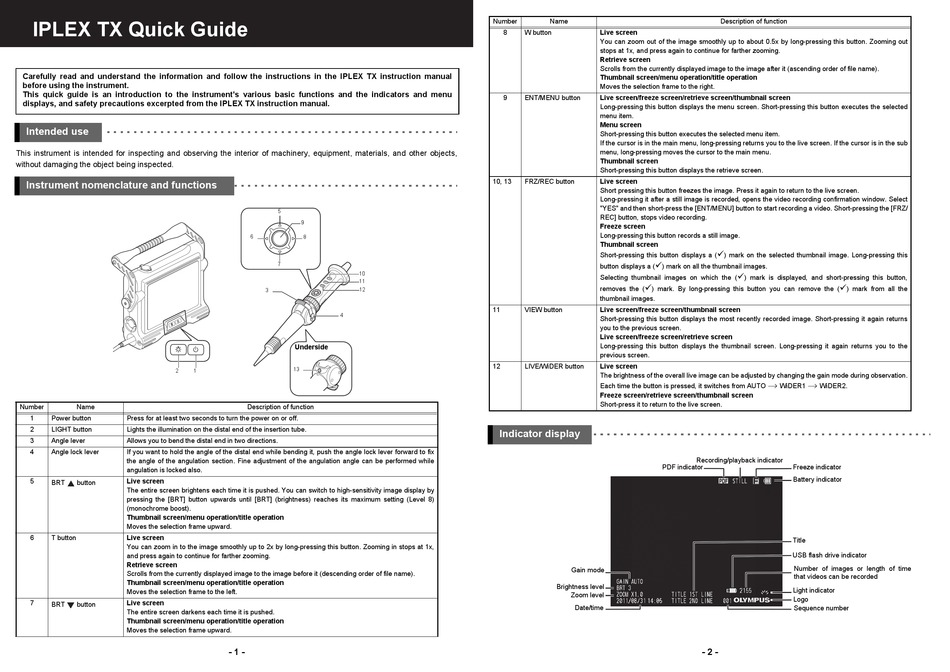

IPLEX TX Quick Guide
Carefully read and understand the information and follow the instructions in the IPLEX TX instruction manual
before using the instrument.
This quick guide is an introduction to the instrument's various basic functions and the indicators and menu
displays, and safety precautions excerpted from the IPLEX TX instruction manual.
Intended use
This instrument is intended for inspecting and observing the interior of machinery, equipment, materials, and other objects,
without damaging the object being inspected.
Instrument nomenclature and functions
2 1
Number Name
1 Power button Press for at least two seconds to turn the power on or off.
2 LIGHT button Lights the illumination on the distal end of the insertion tube.
3 Angle lever Allows you to bend the distal end in two directions.
4 Angle lock lever If you want to hold the angle of the distal end while bending it, push the angle lock lever forward to fix
the angle of the angulation section. Fine adjustment of the angulation angle can be performed while
angulation is locked also.
5 Live screen
BRT button
The entire screen brightens each time it is pushed. You can switch to high-sensitivity image display by
pressing the [BRT] button upwards until [BRT] (brightness) reaches its maximum setting (Level 8)
(monochrome boost).
Thumbnail screen/menu operation/title operation
Moves the selection frame upward.
6 T button Live screen
You can zoom in to the image smoothly up to 2x by long-pressing this button. Zooming in stops at 1x,
and press again to continue for farther zooming.
Retrieve screen
Scrolls from the currently displayed image to the image before it (descending order of file name).
Thumbnail screen/menu operation/title operation
Moves the selection frame to the left.
7 Live screen
BRT button
The entire screen darkens each time it is pushed.
Thumbnail screen/menu operation/title operation
Moves the selection frame upward.
5
9
6
8
7
10
11
12
3
4
Underside
13
Description of function
- 1 -
Number Name
8 W button Live screen
You can zoom out of the image smoothly up to about 0.5x by long-pressing this button. Zooming out
stops at 1x, and press again to continue for farther zooming.
Retrieve screen
Scrolls from the currently displayed image to the image after it (ascending order of file name).
Thumbnail screen/menu operation/title operation
Moves the selection frame to the right.
9 ENT/MENU button Live screen/freeze screen/retrieve screen/thumbnail screen
Long-pressing this button displays the menu screen. Short-pressing this button executes the selected
menu item.
Menu screen
Short-pressing this button executes the selected menu item.
If the cursor is in the main menu, long-pressing returns you to the live screen. If the cursor is in the sub
menu, long-pressing moves the cursor to the main menu.
Thumbnail screen
Short-pressing this button displays the retrieve screen.
10, 13 FRZ/REC button Live screen
Short pressing this button freezes the image. Press it again to return to the live screen.
Long-pressing it after a still image is recorded, opens the video recording confirmation window. Select
"YES" and then short-press the [ENT/MENU] button to start recording a video. Short-pressing the [FRZ/
REC] button, stops video recording.
Freeze screen
Long-pressing this button records a still image.
Thumbnail screen
Short-pressing this button displays a (

button displays a ( ) mark on all the thumbnail images.
Selecting thumbnail images on which the (

removes the ( ) mark. By long-pressing this button you can remove the (
thumbnail images.
11 VIEW button Live screen/freeze screen/thumbnail screen
Short-pressing this button displays the most recently recorded image. Short-pressing it again returns
you to the previous screen.
Live screen/freeze screen/retrieve screen
Long-pressing this button displays the thumbnail screen. Long-pressing it again returns you to the
previous screen.
12 LIVE/WiDER button Live screen
The brightness of the overall live image can be adjusted by changing the gain mode during observation.
Each time the button is pressed, it switches from AUTO
Freeze screen/retrieve screen/thumbnail screen
Short-press it to return to the live screen.
Indicator display
PDF indicator
Gain mode
Brightness level
Zoom level
Date/time
Description of function

) mark on the selected thumbnail image. Long-pressing this

) mark is displayed, and short-pressing this button,

) mark from all the
WiDER1 WiDER2.
Recording/playback indicator
Freeze indicator
Battery indicator
Title
USB flash drive indicator
Number of images or length of time
that videos can be recorded
Light indicator
Logo
Sequence number
- 2 -
