Broan NuTone 336 Instruction Manual

FOR USE WITH RANGEMASTER 60000 OR RM60000 SERIES OR 64000 SERIES RANGE HOODS
FOR USE WITH "BEST BY BROAN" K-210A OR K-260A SERIES RANGE HOODS
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufac-
turer. If you have questions, contact the manufacturer at the
address or phone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficient air is needed for proper combustion and exhaust-
ing of gases through the flue (chimney) of fuel burning
equipment to prevent backdrafting. Follow the heating equip-
ment manufacturer's guideline and safety standards such as
those published by the National Fire Protection Association
(NFPA), and the American Society for Heating, Refrigeration
and Air Conditioning Engineers (ASHRAE), and the local
code authorities.
PLAN THE INSTALLATION
ALL INSTALLATIONS
1. Locate the blower so the length of the duct run and number
of elbows needed are kept to a minimum.

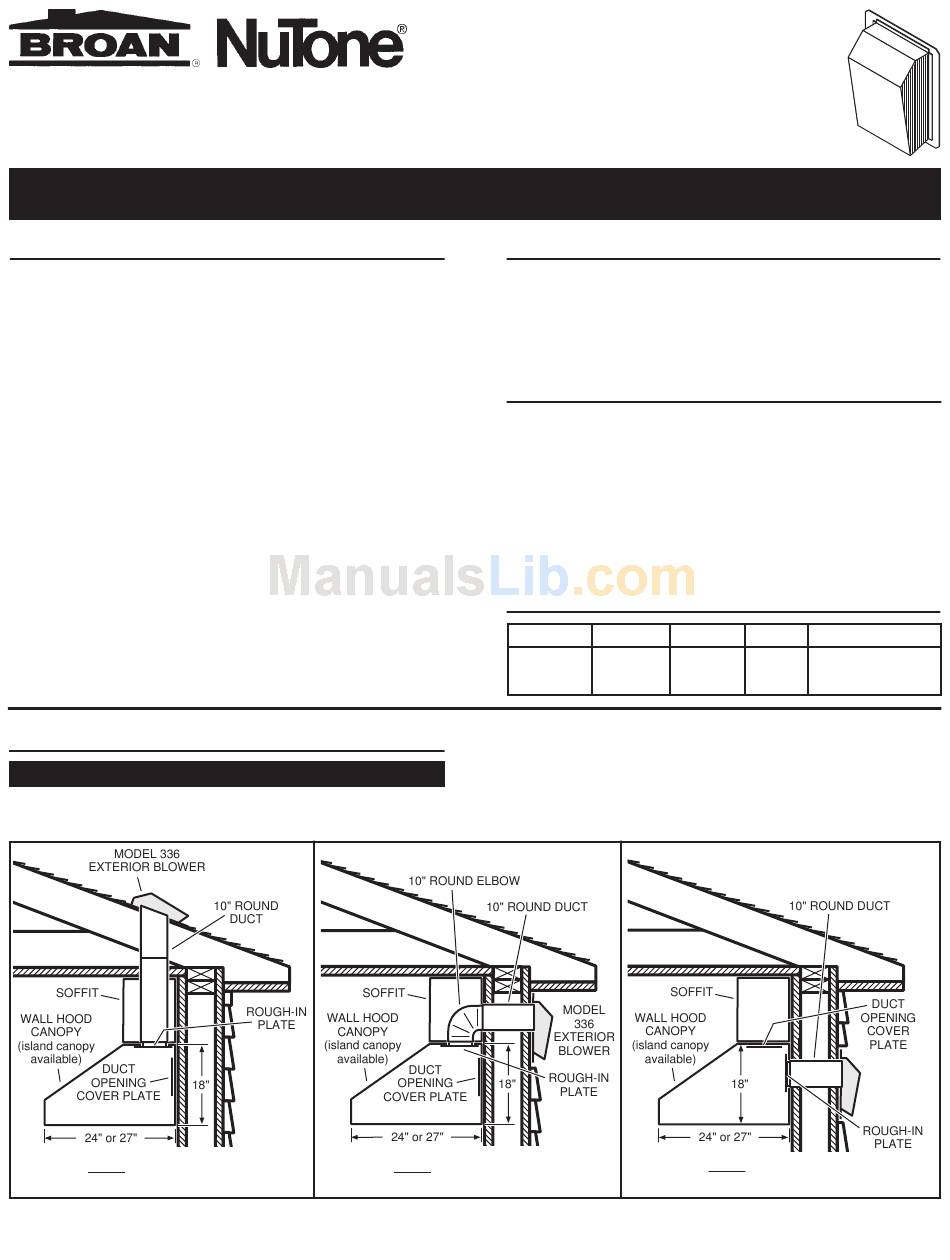

TYPICAL ROOF MOUNTED INSTALLATION
(Vertical discharge)
INSTALLER: Leave This Manual With The Homeowner
HOMEOWNER: Use And Care Information On Page 4
MODEL 336
EXTERIOR MOUNTED BLOWER
WARNING
5. When cutting or drilling into wall, or ceiling, do not damage
6. Ducted fans must always be vented to the outdoors.
7. To reduce risk of fire, use only metal ductwork.
8. This unit must be grounded.
CAUTION
1. For general ventilating use only. Do not use to exhaust
2. To avoid motor bearing damage and noisy and/or unbal-
3. Please read specification label on product for further informa-
4. Electrical circuit, including speed control, (if used), must be

SPECIFICATIONS

2. Where possible, blower should be centered between wall
3. Avoid pipes, wires, or other ductwork that may be running
NOTE: Horizontal discharge requires relocation of the duct
opening cover plate. See hood manual for instructions.
TYPICAL WALL MOUNTED INSTALLATION
(Vertical discharge - elbow to horizontal)
electrical wiring or other hidden utilities.
hazardous or explosive material and vapors.
anced impellers, keep drywall spray, construction dust, etc.
off power unit.
tion and requirements.
rated 6 AMPS minimum.
MODEL VOLTS AMPS
336 120 3.8
studs or roof rafters.
through the wall.
TYPICAL WALL MOUNTED INSTALLATION
CFM DUCT SIZE
1500 10" DIA.
MODEL
336
EXTERIOR
BLOWER
(Horizontal discharge)
