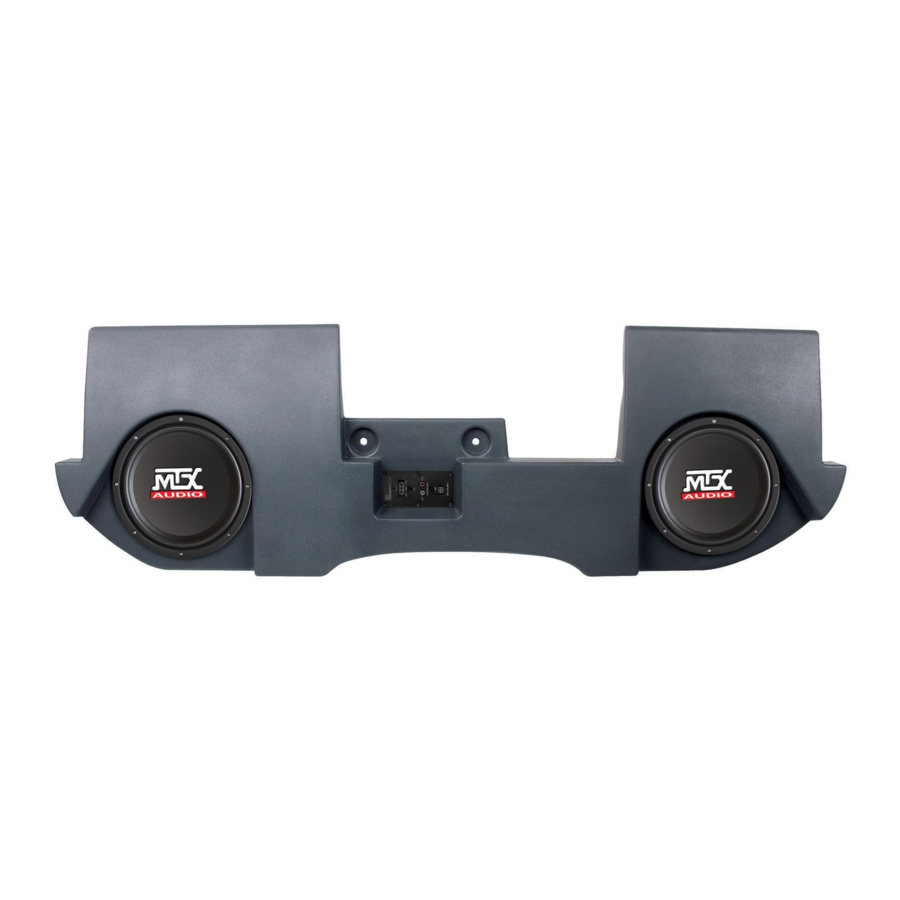

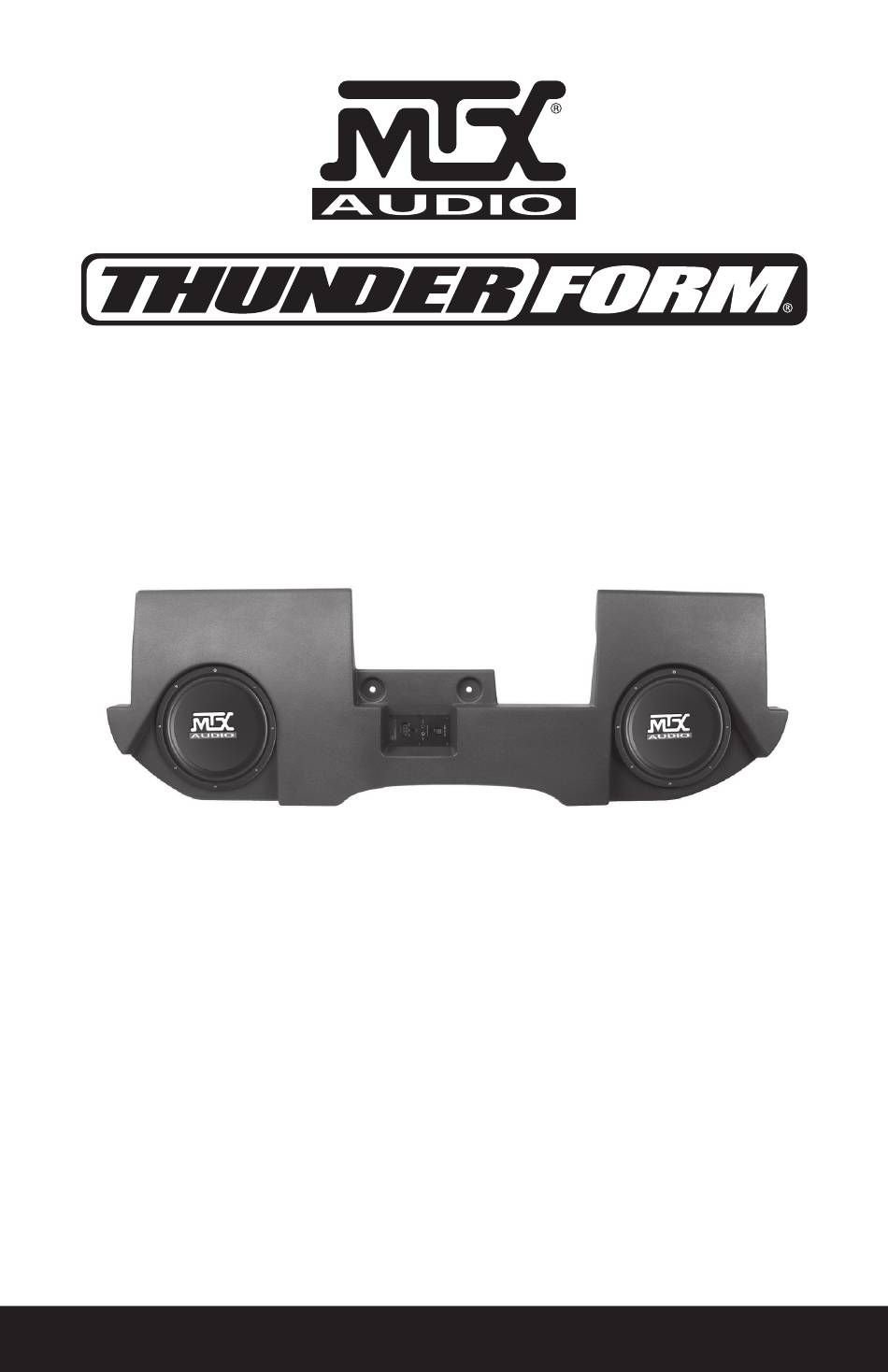

- Page 1 DRQC20AC-TN DODGE RAM QUAD CAB VEHICLE SPECIFIC SUBWOOFER ENCLOSURE OWNER’S MANUAL M T X . C O M...
-
Page 2: Important Notice
MTX! WE’RE HERE TO HELP We’re here to help with any installation or technical support. Visit mtx.com to chat, call 1-800-225-5689 to speak with an MTX Technical Support representative, or visit youtube.com/user/MTXAudioUSA to view product videos. -
Page 3: Specifications
FEATURES • Includes two MTX 10" Terminator Subwoofers • Integrated Amplifier Easily Connects to Existing Systems • Rotationally Molded Design, Finished in Charcoal • Mounts Under Rear Seat with No Loss of Leg Room • EBC and Wiring Harness Included SPECIFICATIONS •... -
Page 4: Installation
INSTALLATION Step 1 - Place enclosure under rear seat, with woofer firing up (do not mount yet). On models that have the fold out floor do Step 2 first. Bottom of Seat Enclosure Step 2 - Remove the four (4) bolts and remove metal floor. (Save floor and all the hardware, if you sell the truck you may want to replace it.) Metal Floor Step 3 - If externally amplified make speaker connections to the enclosure from the amplifier;... - Page 5 Amplified ThunderForm Note: When routing power wire we recommend a connection directly to the battery. Step 4 - Remove driver side threshold trim. Pull up on trim, it will remove easily. Step 5 - Remove driver side kick panel, grasp center upper edge and pull outward allowing retaining tab to unsnap.
- Page 6 Step 12 - Remove 20 amp fuse from MTX fuse holder. Connect furnished ring terminal to positive side of battery. Remove bolt from factory battery terminal. Pass bolt through factory battery terminal, then ring terminal, and into the other side of factory battery terminal and retighten bolt. Note: Always turn the ignition OFF when connecting or disconnecting battery cables.
- Page 7 Connection to Enclosure Conventional Wiring of Factory Radio 20 Amp Fuse Source Unit Red Power Wire Blue Turn On Lead 12V Switched Source Optional EBC (Electronic Bass Control) Green (-) White / Red (-) Green / White (+) White / Black (+) Gray (-) Brown / Purple (-) Gray / White (+)
- Page 8 Step 17 - Replace 20 amp fuse under hood. Step 18 - When amp turns on, LED will display red during diagnostic mode, and then green, signaling amp is on and functioning. Amp will only turn on when radio is on. Step 19 - Adjust gain.
- Page 9 NOTES M T X . C O M...
- Page 10 NOTES M T X . C O M...
-
Page 11: Warranty Period
WARRANTY PERIOD At MTX Audio we engineer products that will stand up to the test of time. We also realize that from time to time a problem may occur. That’s why our products carry a 2-year limited warranty that begins at the time of sale to the end user. - Page 12 Like, Follow, & Subscribe © 2021 MiTek Corporation. All rights reserved. MTX is a trademark of MiTek Corporation. All other trademarks are property of their respective owners. Designed and Engineered in the U.S.A. Due to continual product development, all specifications are subject to change without notice.
