ADTRAN Network Interface Module T1/FT1 Quick Start Manual

®
NetVanta T1/FT1 Network Interface Module (NIM)
Quick Start Guide

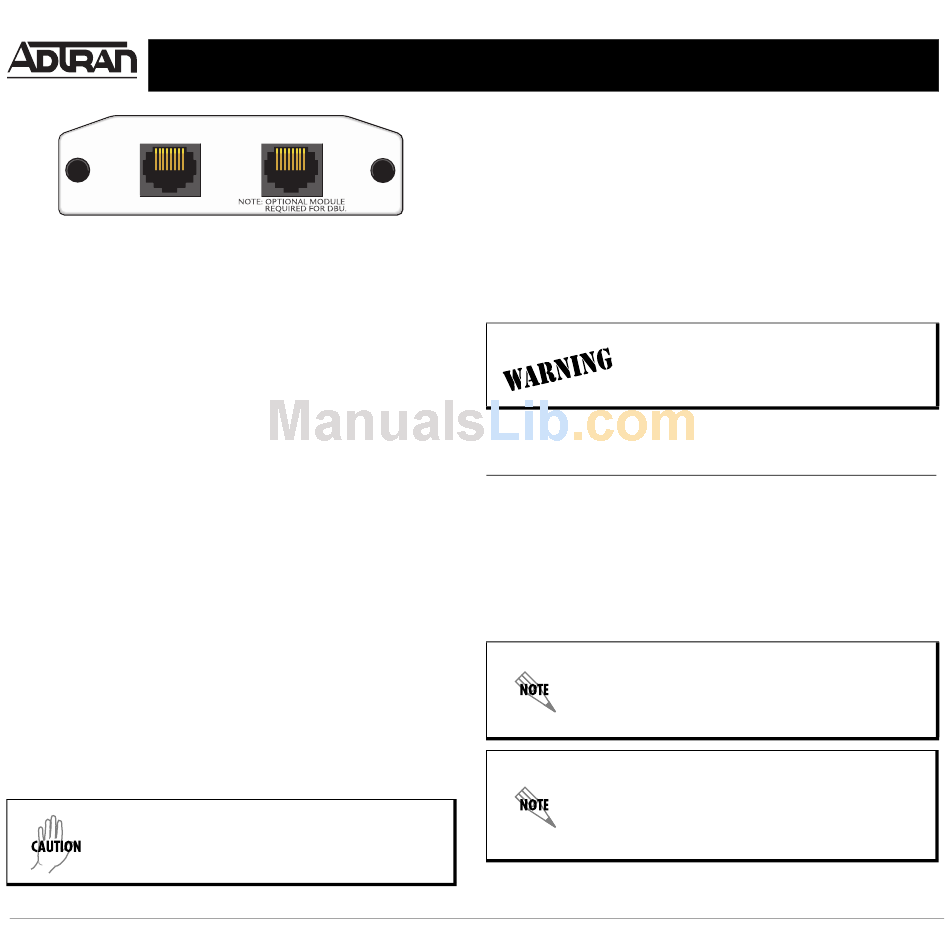

WAN-T1
S
PECIFICATIONS
Operating Modes Frame Relay, Multilink Frame Relay,
PPP, Multilink PPP, HDLC
T1/FT1 Interface Supported Standards: AT&T TR 62411,
AT&T TR 54016, Bellcore TR 194, ANSI T1.403
Line Rate: 1.544 Mbps ±75 bps
Line Code: AMI or B8ZS
Framing: D4 (SF) or ESF
FT1 Line Rate: DS0 channelized (multiples of
64 kbps)
Input Signal: 0 to -36 dB (DS1)
Line Build-Out: 0, -7.5, -15, -22.5 dB (long),
0 to 655 ft (short)
DS0 Assignment: Programmable
Connector: RJ-48C
Clock Source Network, Internal
Diagnostics Test Pattern Generation and Detection: QRSS, 511,
15
2 - 1, 2
Network loopbacks (local and remote); responds to
both inband and FDL loop codes
Alarm generation and detection
Network and user sets of performance data
(15 minutes and 24 hours)
Compliance FCC Part 15 Class A, EN 55022 Class A
ACTA/FCC Part 68, IC CS-03
UL/CUL 60950
Physical Dimensions: 2.75-inch W x 4.25-inch D
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent, noncondensing
NetVanta modules should be installed only in
NetVanta Series products.
Quick Start Guide, 61202862L1-13D, November 2006
DBU
20
- 1, all ones, all zeros
For more detailed documentation, visit us online at www.adtran.com.
I I
NSTALLATION NSTRUCTIONS
1. Remove the power from the unit.
2. Slide the option module into the option slot until the module is
firmly seated against the chassis.
3. Secure the pins at both edges of the module.
4. Connect the cables to the associated device(s).
5. Complete installation of the base unit.
6. Restore power to the unit.
For NetVanta modules with outside plant
connections, ensure that all cables are
removed from the module before installing or
removing it from the NetVanta chassis.
WAN-T1 N (RJ-48C) C
ETWORK
Pin Name
1 R1
2 T1
3 —
4 R
5 T
6-8 —
An optional Dial Backup Interface Module (DIM) is
required for dial backup applications.
For a description of the DBU pinouts, refer to the
Quick Start Guide included with your DIM
shipment.
Important: For additional details on product
features, specifications, installation, and safety, refer
to the appropriate Hardware Installation Guide on
the ADTRAN OS System Documentation CD
shipped with the base unit and available online at
www.adtran.com.
P/N 1202862L1
P
ONNECTION
Description
Receive data from the network - Ring 1
Receive data from the network - Tip 1
Unused
Transmit data toward the network - Ring
Transmit data toward the network - Tip
Unused
Copyright © 2006 ADTRAN, All Rights Reserved
INOUTS
