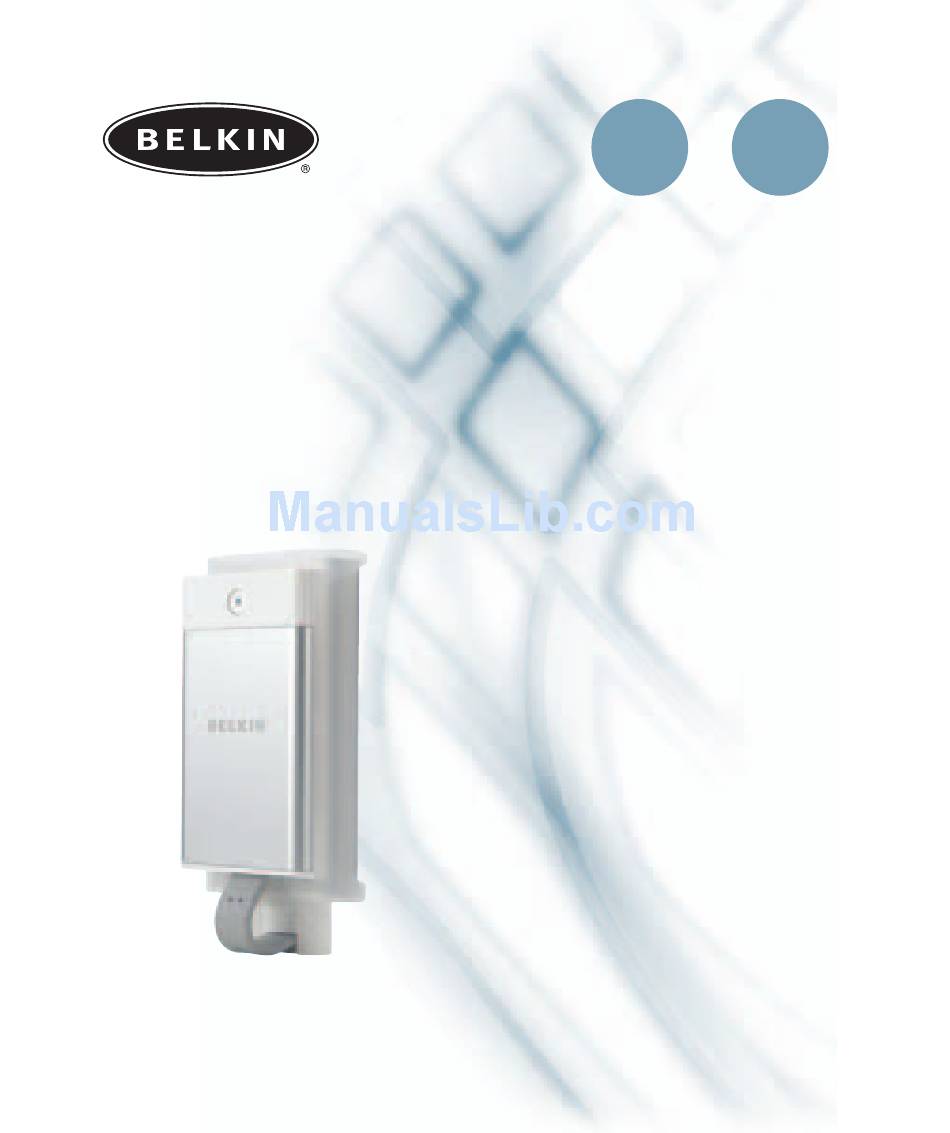

- Page 1 iPod ® iPod ® mini TunePower ™ Rechargeable Battery Pack Keep your iPod running anytime, anywhere Quick Installation Guide Guide d’Installation Rapide Installationsanleitung Guía de Instalación Rápida Guida di installazione rapida F8E490ea...
- Page 2 Congratulations and thank you for purchasing the TunePower Rechargeable Battery Pack (the TunePower) from Belkin. Now you can power your iPod even when the internal battery is drained, and keep the music playing anytime, anywhere. Please be sure to read all the instructions in this Quick Installation Guide so that you can get the most from your Belkin product.
-
Page 3: Setup Instructions
Setup Instructions There are three sleeve sizes included: iPod mini, third- and fourth-generation iPod small, and third- and fourth- generation iPod large. Select the appropriate size for your iPod. iPod mini 20GB 3G/4G iPod 40GB 3G/4G iPod... - Page 4 Setup Instructions 1. Attach the TunePower’s dock connector to the slot on the bottom of the iPod sleeve. 2. Securely attach the battery to the iPod sleeve. Make sure the tabs on the top and bottom of the battery pack securely latch into the sleeve.
- Page 5 Setup Instructions 3. Attach the form-fitted sleeve to the iPod by sliding the iPod in bottom to top. 4. Connect the TunePower to the iPod by plugging the TunePower’s dock connector into the bottom of the iPod.
- Page 6 Operating the Belkin TunePower Once the Belkin TunePower is connected to the iPod, the iPod will run off the battery pack instead of the internal iPod battery (as long as there is enough power in the battery pack). The TunePower will provide 8–10 hours of additional play time* *Performance may vary based on Apple®...
- Page 7 TunePower will be completely discharged and can be removed from the iPod (while the internal iPod battery is approximately 75% charged). TunePower provides 8–10 hours of additional play time. *Performance may vary based on Apple iPod firmware version in use. Visit belkin.com for details.
- Page 8 FireWire port on a laptop or desktop computer. The LED charge indicator will illuminate when the Belkin TunePower is charging. This indicator will turn off when the battery has been charged to approximately 90%. To maximize charge, leave the battery pack connected for 10 minutes after the indicator turns off.
- Page 9 OFF and LOCKED position to conserve power. The iPod can be charged at the same time as the Belkin TunePower. Doing so should not increase the length of time that it takes to charge the iPod.
-
Page 10: Helpful Hints
1. The TunePower should be discharged—the LED indicator should be red. If stored in any other state (including no LED), the Belkin TunePower may lose some of its capacity, which may or may not be recoverable in the future. The Belkin TunePower should NEVER be stored for long periods of time when fully charged. - Page 11 Helpful Hints The Belkin Battery Pack has a life cycle of 400–500 cycles. Temperature can reduce the life cycle of this product. Belkin recommends 0–30 degrees Celsius for charging and 0–50 degrees Celsius for discharge (storage above 40 degrees Celsius can reduce life cycle).
-
Page 12: Ce Declaration Of Conformity
CE Declaration of Conformity We, Belkin Corporation, declare under our sole responsibility that the product F8E490, to which this declaration relates, is in conformity with Emissions Standard EN55022 and with Immunity Standard EN55024, LVP EN61000-3-2, and EN61000-3-3. - Page 13 Belkin Corporation Limited Three-Year Product Warranty Belkin Corporation warrants this product against defects in materials and workmanship for its warranty period. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product.
- Page 14 800.223.5546 ext. 2263 Europe: 00 800 223 55 460 © 2004 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. Apple, FireWire, and iPod are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
