Introduction
To avoid electric shock or injury, do not perform the performance tests or
calibration procedures unless you are qualified to do so.
The information provided in this manual is for the use of qualified personnel
only.

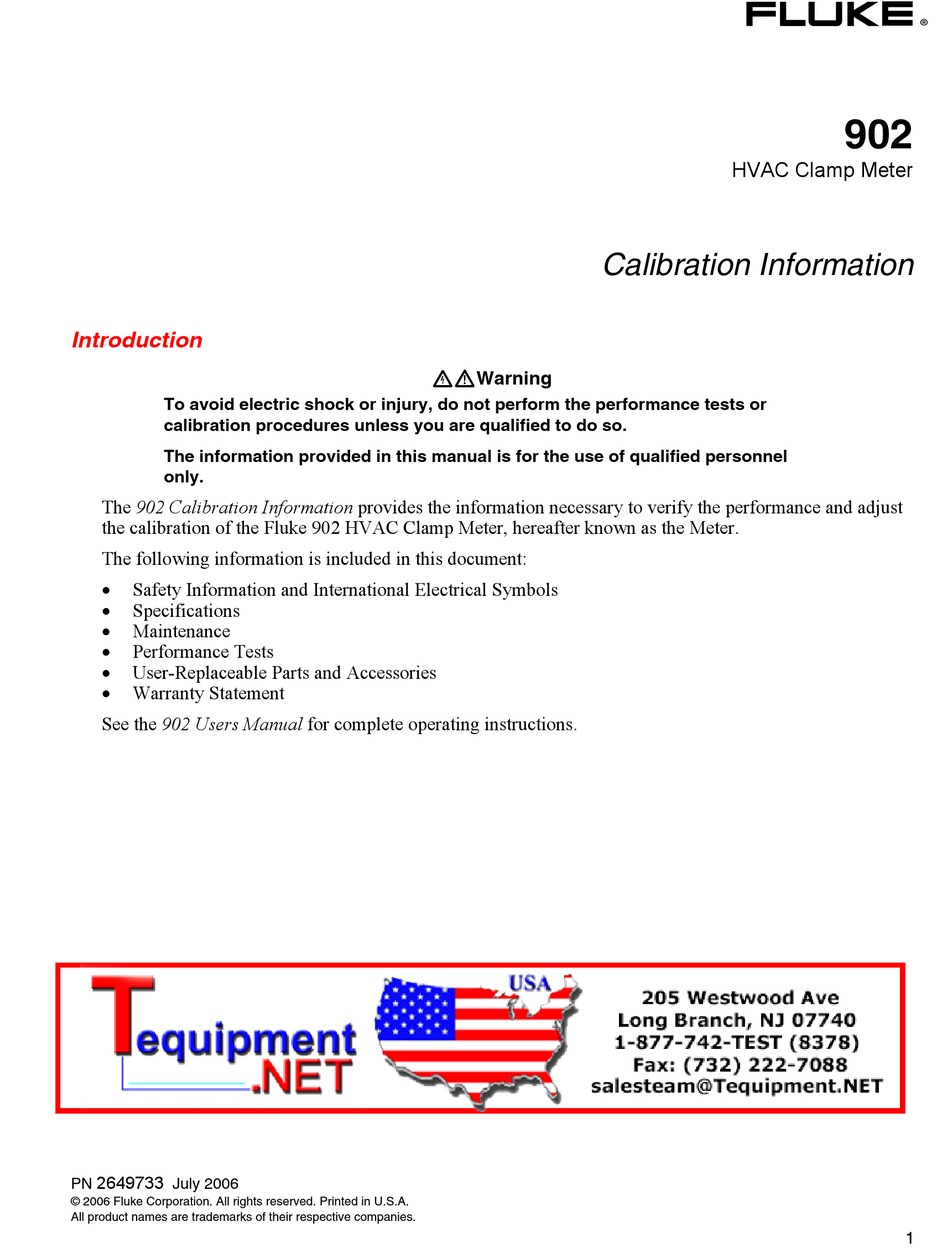

The 902 Calibration Information provides the information necessary to verify the performance and adjust
the calibration of the Fluke 902 HVAC Clamp Meter, hereafter known as the Meter.
The following information is included in this document:
•
Safety Information and International Electrical Symbols
•
Specifications
•
Maintenance
•
Performance Tests
•
User-Replaceable Parts and Accessories
•
Warranty Statement
See the 902 Users Manual for complete operating instructions.
Contact Information
To contact Fluke, call:
1-888-99-FLUKE (1-888-993-5853) in USA
1-800-36-FLUKE (1-800-363-5853) in Canada
+31 402-675-200 in Europe
+81-3-3434-0181 Japan
+65-738-5655 Singapore
+1-425-446-5500 in other countries
For additional information about Fluke, its products, and services, visit Fluke's web site at:
www.fluke.com
To register this product, go to
2649733
PN
July 2006
© 2006 Fluke Corporation. All rights reserved. Printed in U.S.A.
All product names are trademarks of their respective companies.
XWWarning
register.fluke.com
HVAC Clamp Meter
Calibration Information
®
902
1

Advertisement

Table of Contents
loading

Related Manuals for Fluke 902

Summary of Contents for Fluke 902

  • Page 1 The information provided in this manual is for the use of qualified personnel only. The 902 Calibration Information provides the information necessary to verify the performance and adjust the calibration of the Fluke 902 HVAC Clamp Meter, hereafter known as the Meter.

  • Page 2: Safety Information

    Calibration Information Safety Information A “XW Warning” statement defines hazardous conditions and actions that could cause bodily harm or death. A “W Caution” statement identifies conditions and actions that could damage the Meter or the equipment under test. XWRead First: Safety Information To avoid possible electric shock or personal injury, and to avoid possible damage to the Meter or the equipment under test, adhere to the following practices:...

  • Page 3: Electrical Specifications

    Conforms to relevant European Union directives Earth ground DC (Direct Current) AC (Alternating Current) Do not dispose of this product as unsorted municipal waste. Contact Fluke or a qualified recycler for disposal. Conforms to relevant Australian standards N10140 Inspected and licensed by TÜV Product Services...

  • Page 4: General Specifications

    Calibration Information General Specifications -10 °C to +50 °C Operating Temperature -40 °C to +60 °C Storage Temperature Non condensing (< 10 °C) 90 % RH (10 °C to 30 °C) 75 % RH (30 °C to 40 °C) Operating Humidity 45 % RH (40 °C to 50 °C) (Without Condensation) Operating Altitude...

  • Page 5: Maintenance

    Note When the Meter displays CAL, the unit will lock and no measurements can be made. The Meter must be sent to a Fluke Service Center for repair. Cleaning the Meter XWWarning To avoid electrical shock, remove any input signals before cleaning.

  • Page 6: Performance Tests

    The following performance tests verify the complete operation of the Meter and checks the accuracy of each meter function against the Meter’s specifications. If the Meter fails any part of the test, calibration adjustment and/or repair is indicated. The Meter must be returned to a Fluke Service Center for repair or adjustment. See Contacting Fluke.

  • Page 7: Testing The Display

    HVAC Clamp Meter Performance Tests Table 1. Required Equipment Equipment Recommended Model AC Calibrator Fluke 5520A Digital Multimeter (DMM) Any Fluke model 50-Turn Current Coil Fluke 5500A/Coil TC Adapter Accessory Fluke 80AK K-Type TC Extension Wire (2) K-type mini-connectors Fluke 80CK Testing the Display Test the display by turning the Meter on while holding down the AC/DC button.

  • Page 8: Keypad Test

    6. Repeat steps 1-4 for each function and range in Table 2. If the Meter fails to perform within the Meter response limits indicated for each test in Table 2, the Meter must be returned to a Fluke Service Center for repair or calibration adjustment. epb07.eps...
  • Page 9 HVAC Clamp Meter Performance Tests Table 2. Performance Tests Meter Response Test 5520A Output (Switch Position) Lower Limit Upper Limit 600 V/60 Hz 593.5 606.5 AC Voltage 10 V/60 Hz 10.6 600 V dc 593.5 606.5 0 V dc -0.5 DC Voltage -600 V dc -606.5...

  • Page 10: Replaceable Parts And Accessories

    Thermocouple Assembly, K-Type, Beaded, Molded Dual Banana Plug (80BK) 1997234 Not Shown Not Shown 902 Users Manual (English-Printed) 2547887 902 Manuals CD (Containing English, French, German, Japanese, Simplified Not Shown 2643264 Chinese, and Spanish Users Manuals) Not Shown 902 Calibration Information 2649733 * Fluke accessories are available from your authorized Fluke distributor.
  • Page 11 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is three years and begins on the date of shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only...
