Summary of Contents for Belkin OmniView F1DK102P

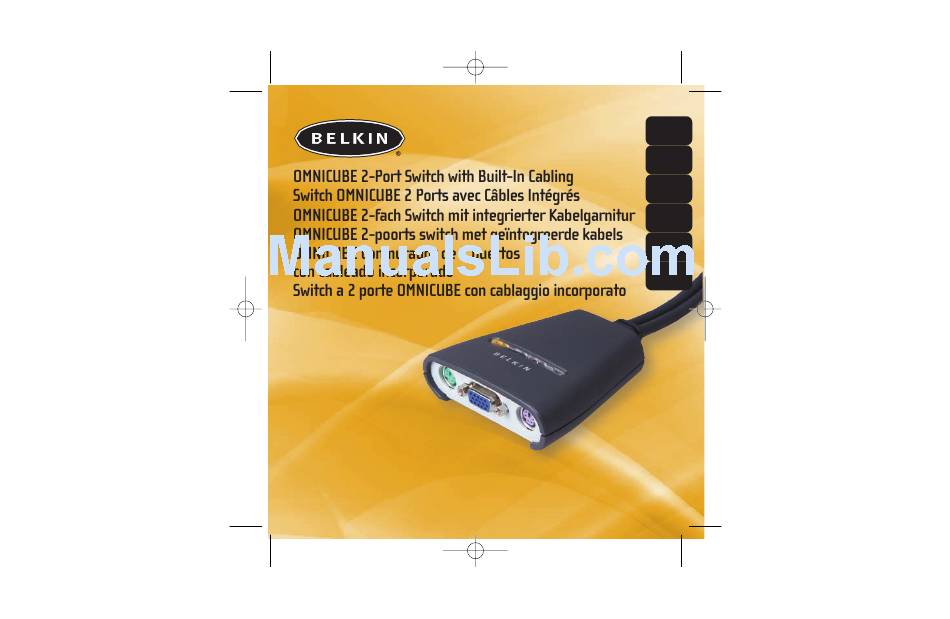

Page 1
P74242ea-F1DK102P-man.qxd 01-04-2003 Control two computers using one video monitor, and a PS/2 keyboard and mouse Contrôler deux ordinateurs avec un écran, un clavier et une souris PS/2 Kontrollieren Sie zwei Computer mit einem Monitor und einer PS/2-Tastatur und -Maus Beheer twee computers met slechts één monitor, PS/2-toetsenbord en muis Controla dos ordenadores utilizando un monitor de vídeo, un teclado PS/2 y un ratón...
AutoScan Mode ........8 16:19 Page 4 The Belkin 2-Port KVM Switch with Built-In Cabling allows you to control multiple computers with one keyboard, monitor, and mouse. The Switch supports PS/2 input devices (keyboard and mouse), VGA, SVGA, XGA, and PS/2 computers.
P74242ea-F1DK102P-man.qxd 01-04-2003 Operating Systems Your Switch is for use on CPUs using: Platforms • Windows® 95, 98, 2000, Me, NT®, XP • DOS • Linux® • Novell® NetWare® 4.x/5.x Keyboards • Supports 101-, 102-, and 104-key keyboards Mice • Microsoft® system-compatible PS/2 mice with 2, 3, 4, or 5 buttons Monitors •...
Note: If your computer needs to be more than eight feet from the KVM Switch, you can use the Belkin CAT5 Extender (part number F1D084) to extend your PS/2 keyboard, PS/2 mouse, and monitor up to 500 feet (152.4m) away using a standard CAT5 UTP cable.
P74242ea-F1DK102P-man.qxd 01-04-2003 Connecting the Computer 1. Using the attached cables, take the VGA cable and connect it to the VGA port on the first computer. 2. Connect the PS/2 keyboard KVM cable to the keyboard port on the computer. 3. Connect the PS/2 mouse KVM cable to the mouse port on the computer.
P74242ea-F1DK102P-man.qxd 01-04-2003 16:19 Page 8 You can switch directly to any port by entering the Switch port number you wish to use. For example, if you press “SCROLL LOCK”, “SCROLL LOCK”, “2”, the computer on port 2 will be selected. Switch to Port 2—(2) AutoScan Mode In AutoScan mode, the Switch remains on one port for eight seconds before...
Page 9
16:19 Page 12 Le Switch KVM 2 Ports avec Câbles Intégrés de Belkin vous permet de contrôler plusieurs ordinateurs avec un seul clavier, écran et souris. Le Switch prend en charge des périphériques d’entrée (clavier et souris) et des ordinateurs VGA, SVGA, XGA et PS/2.
P74242ea-F1DK102P-man.qxd 01-04-2003 Systèmes d’Exploitation Votre Switch est utilisé sur des ordinateurs fonctionnant sous : Plateformes • Windows® 95, 98, 2000, Me, NT®, XP • DOS • Linux® • Novell® NetWare® 4.x/5.x Claviers • Prend en charge les claviers 101, 102 et 104 Souris •...
Note : Si votre ordinateur doit être situé à plus de 2,40m du Switch KVM, vous avez la possibilité d’utiliser le Prolongateur CAT5 de Belkin (référence produit F1D084) pour prolonger votre clavier PS/2, souris PS/2 et écran à une distance allant jusqu’à...
P74242ea-F1DK102P-man.qxd 01-04-2003 Connecter l’Ordinateur 1. En utilisant les câbles reliés, prenez le câble VGA et connectez le au port VGA de votre ordinateur. 2. Connectez le câble KVM Clavier PS/2 au port clavier de l’ordinateur. 3. Connectez le câble KVM Souris PS/2 au port souris de l’ordinateur. Répétez les Étapes 1, 2 et 3 pour les ordinateurs supplémentaires qui doivent être connectés au Switch.
P74242ea-F1DK102P-man.qxd 01-04-2003 16:19 Page 8 Vous pouvez changer de port directement en tapant le numéro du port que vous souhaitez utiliser. Par exemple, si vous tapez “SCROLL LOCK”, “SCROLL LOCK”, “2”, l’ordinateur relié au port 2 sera sélectionné. Passer au Port 2-(2) Mode AutoScan En Mode AutoScan, le Switch reste sur un port pendant huit secondes avant de passer au suivant.
Page 15
AutoScan-Betrieb ........8 16:19 Page 12 Mit dem 2fach-Masterswitch mit integrierter Kabelgarnitur von Belkin können Sie mehrere Computer mit einer Tastatur, einem Bildschirm und einer Maus steuern. Der Switch unterstützt PS/2-Eingabegeräte (Tastatur und Maus), die Grafikstandards VGA, SVGA, XGA und PS/2-Computer.
Bevor Sie Geräte an den Switch oder einen der Computer anschließen, müssen Sie unbedingt alle Einheiten ausschalten. Das Anschließen oder Herausziehen von Kabeln bei eingeschalteten Computern kann zu irreparablen Schäden an Ihren Computern, an Daten bzw. am Switch führen. Belkin Corporation übernimmt keinerlei Haftung für derart verursachte Schäden. Überprüfen der Konsole 1.
P74242ea-F1DK102P-man.qxd 01-04-2003 Anschließen des Computers 1. Schließen Sie das angeschlossene VGA-Kabel an den VGA-Port am ersten Computer an. 2. Schließen Sie das PS/2-Masterswitch-Tastaturkabel an den Tastatur-Port des Computers an. 3. Schließen Sie das PS/2-Masterswitch-Mauskabel an den Maus-Port des Computers an. Wiederholen Sie die Schritte 1 bis 3 für weitere Computer, die an den Switch angeschlossen werden sollen.
P74242ea-F1DK102P-man.qxd 01-04-2003 16:19 Page 8 Sie können direkt zu einem bestimmten Port schalten, indem Sie die Nummer des Switch-Ports eingeben. Wenn Sie z.B. die Rollen-Taste, die Rollen-Taste und die Taste 2 drücken, wird der Computer an Port 2 ausgewählt. Umschalten zu Port 2: (2) AutoScan-Betrieb Im AutoScan-Modus verbleibt der Masterswitch 8 Sekunden lang an einem Port, bevor er zum nächsten schaltet.
Page 21
AutoScan-functie ........8 16:19 Page 12 Met een 2-poorts kvm-switch van Belkin met geïntegreerde kabels kunt u twee computers bedienen met één toetsenbord, monitor en muis. De switch ondersteunt PS/2-invoerapparaten (toetsenbord en muis), VGA, SVGA, XGA en PS/2-computers.
Let op: Is de afstand tussen uw computer en de kvm-switch groter dan 2,4 m, gebruik dan de Belkin CAT5 Extender (artikelnr. F1D084) om uw PS/2-toetsenbord, PS/2-muis en monitor tot 150 m ver weg te kunnen plaatsen met behulp van een normale CAT5 UTP-kabel.
P74242ea-F1DK102P-man.qxd 01-04-2003 De computer aansluiten 1. Gebruik de geïntegreerde kabels en sluit de VGA-kabel aan op de VGA-poort van de eerste computer. 2. Sluit de PS/2-toetsenbordkabel van de kvm-switch aan op de toetsenbordaansluiting van de computer. 3. Sluit de PS/2-muiskabel van de kvm-switch aan op de muispoort van de computer.
Page 25
P74242ea-F1DK102P-man.qxd 01-04-2003 16:19 Page 8 Of u kunt direct het gewenste poortnummer kiezen. Druk bijvoorbeeld op “SCROLL LOCK”, “SCROLL LOCK” en op “2” om de computer te selecteren die op poort 2 is aangesloten. Omschakelen naar poort 2—(2) AutoScan-functie Bij ingeschakelde AutoScan-functie activeert de switch acht seconden lang een poort, en schakelt dan om naar de volgende.
Page 27
16:19 Page 12 El Conmutador KVM de 2 puertos de Belkin con cableado incorporado le permite controlar varios ordenadores con un teclado, monitor y ratón. El Conmutador admite dispositivos de entrada PS/2 (teclado y ratón), VGA, SVGA, XGA y ordenadores PS/2.
P74242ea-F1DK102P-man.qxd 01-04-2003 Sistemas operativos Su Conmutador es para utilizar en CPU utilizando: Plataformas • Windows® 95, 98, 2000, Me, NT®, XP • DOS • Linux® • Novell® NetWare® 4.x/5.x Teclados • Admite teclados de 101, 102 y 104 teclas Ratón •...
Conmutador KVM. Nota: Si su ordenador debe instalarse a más de ocho pies de distancia del Conmutador KVM podrá utilizar el prolongador Belkin CAT5 (número de pieza F1D084) para prolongar su teclado PS/2, ratón PS/2 y monitor hasta una distancia de 500 pies (152,4m) utilizando cable UTP CAT5 estándar.
P74242ea-F1DK102P-man.qxd 01-04-2003 Conexión del ordenador 1. Utilizando los cables conectados, tome el cable VGA y conéctelo al puerto VGA del primer ordenador. 2. Conecte el cable KVM del teclado PS/2 en el puerto del teclado del ordenador. 3. Conecte el cable KVM del ratón PS/2 en el puerto del ratón del ordenador. Repita los pasos 1 a 3 para el ordenador adicional que se conecte al Conmutador.
P74242ea-F1DK102P-man.qxd 01-04-2003 16:19 Page 8 Podrá conmutar directamente a cualquier puerto introduciendo el número de puerto del Conmutador que desee utilizar. Por ejemplo, si pulsa “BLOQUEO DESPLAZAMIENTO”, “BLOQUEO DESPLAZAMIENTO”, “2”, se seleccionará el ordenador conectado al puerto 2. Conmutador al Puerto 2—(2) Modo AutoScan En el modo AutoScan el Conmutador permanece en un puerto durante ocho segundos antes de cambiar al siguiente.
Page 33
16:19 Page 12 Lo switch KVM a 2 porte Belkin con cablaggio incorporato permette il controllo di computer multipli mediante un singolo insieme composto da tastiera, monitor e mouse. Lo switch supporta dispositivi di entrata PS/2 (tastiera e mouse), nonché...
P74242ea-F1DK102P-man.qxd 01-04-2003 Sistemi operativi Lo switch è previsto per un’utilizzazione con i seguenti computer: Piattaforme • Windows® 95, 98, 2000, Me, NT® e XP • DOS • Linux® • Novell® NetWare® 4.x/5.x Tastiere • Per tipi a 101, 102 e 104 tasti Mouse •...
Nota: Nel caso che il computer deva essere sistemato a più di due metri e mezzo dallo switch KVM, si può impiegare il cavo d’estensione Belkin CAT5 (numero di articolo F1D084) per prolungare il collegamento della tastiera PS/2, del mouse PS/2 e del monitor fino a 152,4 metri (500 piedi) di distanza, per mezzo di un cavo standard UTP CAT5.
P74242ea-F1DK102P-man.qxd 01-04-2003 Collegamento del computer 1. Impiegando i cavi già collegati, connettere il cavo VGA alla porta VGA del primo computer. 2. Collegare il cavo KVM della tastiera PS/2 alla porta della tastiera del computer. 3. Collegare il cavo KVM del mouse PS/2 alla porta del mouse del computer. Ripetere i passi dall’1 al 3 per altri computer che devano essere collegati allo switch.
P74242ea-F1DK102P-man.qxd 01-04-2003 16:19 Page 8 Si può commutare direttamente un qualsiasi porto immettendo il numero di porto dello switch che si desidera utilizzare. Ad esempio, se si preme “Scroll Lock”, “Scroll Lock” e “2”, viene selezionato il computer colleagto al porto 2. Commutazione verso il porto 2 –...
