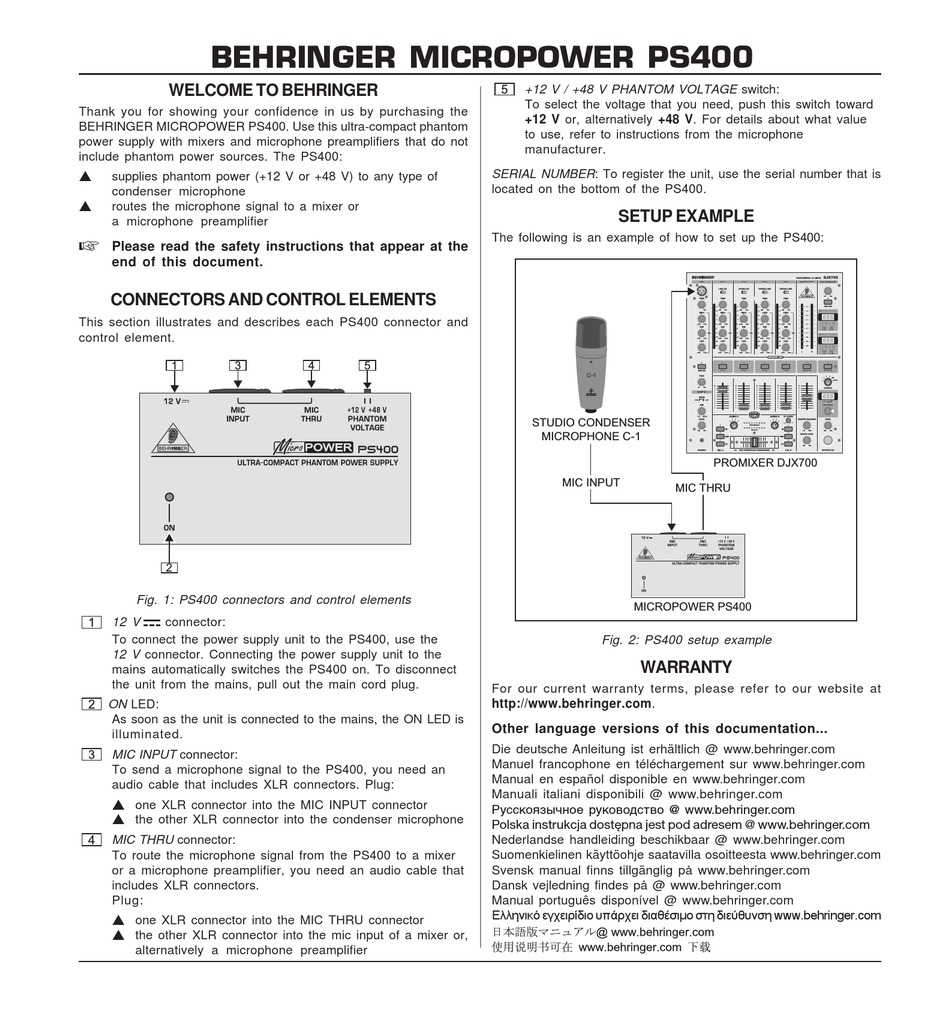

Behringer MICROPOWER PS400 User Manual

BEHRINGER MICROPOWER PS400
WELCOME TO BEHRINGER
Thank you for showing your confidence in us by purchasing the
BEHRINGER MICROPOWER PS400. Use this ultra-compact phantom
power supply with mixers and microphone preamplifiers that do not
include phantom power sources. The PS400:
supplies phantom power (+12 V or +48 V) to any type of
condenser microphone
routes the microphone signal to a mixer or
a microphone preamplifier
Please read the safety instructions that appear at the
end of this document.
CONNECTORS AND CONTROL ELEMENTS
This section illustrates and describes each PS400 connector and
control element.
1 3
2

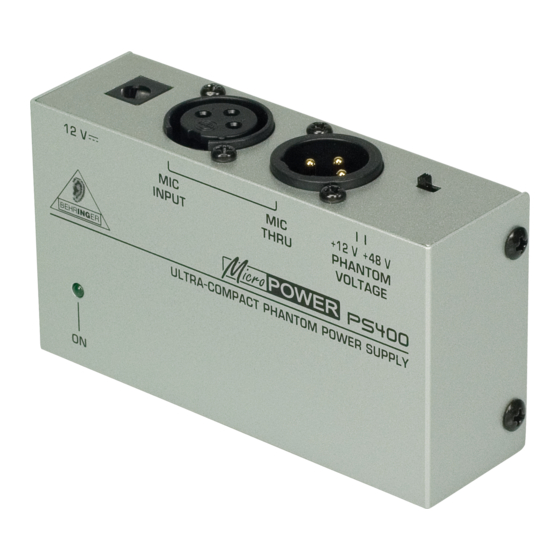

Fig. 1: PS400 connectors and control elements
12 V connector:
To connect the power supply unit to the PS400, use the
12 V connector. Connecting the power supply unit to the
mains automatically switches the PS400 on. To disconnect
the unit from the mains, pull out the main cord plug.
ON LED:
As soon as the unit is connected to the mains, the ON LED is
illuminated.
MIC INPUT connector:
To send a microphone signal to the PS400, you need an
audio cable that includes XLR connectors. Plug:
one XLR connector into the MIC INPUT connector
the other XLR connector into the condenser microphone
MIC THRU connector:
To route the microphone signal from the PS400 to a mixer
or a microphone preamplifier, you need an audio cable that
includes XLR connectors.
Plug:
one XLR connector into the MIC THRU connector
the other XLR connector into the mic input of a mixer or,
alternatively a microphone preamplifier
4 5
+12 V / +48 V PHANTOM VOLTAGE switch:
To select the voltage that you need, push this switch toward
+12 V or, alternatively +48 V. For details about what value
to use, refer to instructions from the microphone
manufacturer.
SERIAL NUMBER: To register the unit, use the serial number that is
located on the bottom of the PS400.
SETUP EXAMPLE
The following is an example of how to set up the PS400:
STUDIO CONDENSER
MICROPHONE C-1
MIC INPUT
MICROPOWER PS400
Fig. 2: PS400 setup example
WARRANTY
For our current warranty terms, please refer to our website at
http://www.behringer.com.
Other language versions of this documentation...
Die deutsche Anleitung ist erhältlich @ www.behringer.com
Manuel francophone en téléchargement sur www.behringer.com
Manual en español disponible en www.behringer.com
Manuali italiani disponibili @ www.behringer.com
Русскоязычное руководство @ www.behringer.com
Polska instrukcja dostępna jest pod adresem @ www.behringer.com
Nederlandse handleiding beschikbaar @ www.behringer.com
Suomenkielinen käyttöohje saatavilla osoitteesta www.behringer.com
Svensk manual finns tillgänglig på www.behringer.com
Dansk vejledning findes på @ www.behringer.com
Manual português disponível @ www.behringer.com
Åëëçíéêü åã÷åéñßäéï õðÜñ÷åé äéáèÝóéìï óôç äéåýèõíóç www.behringer.com
PROMIXER DJX700
MIC THRU
