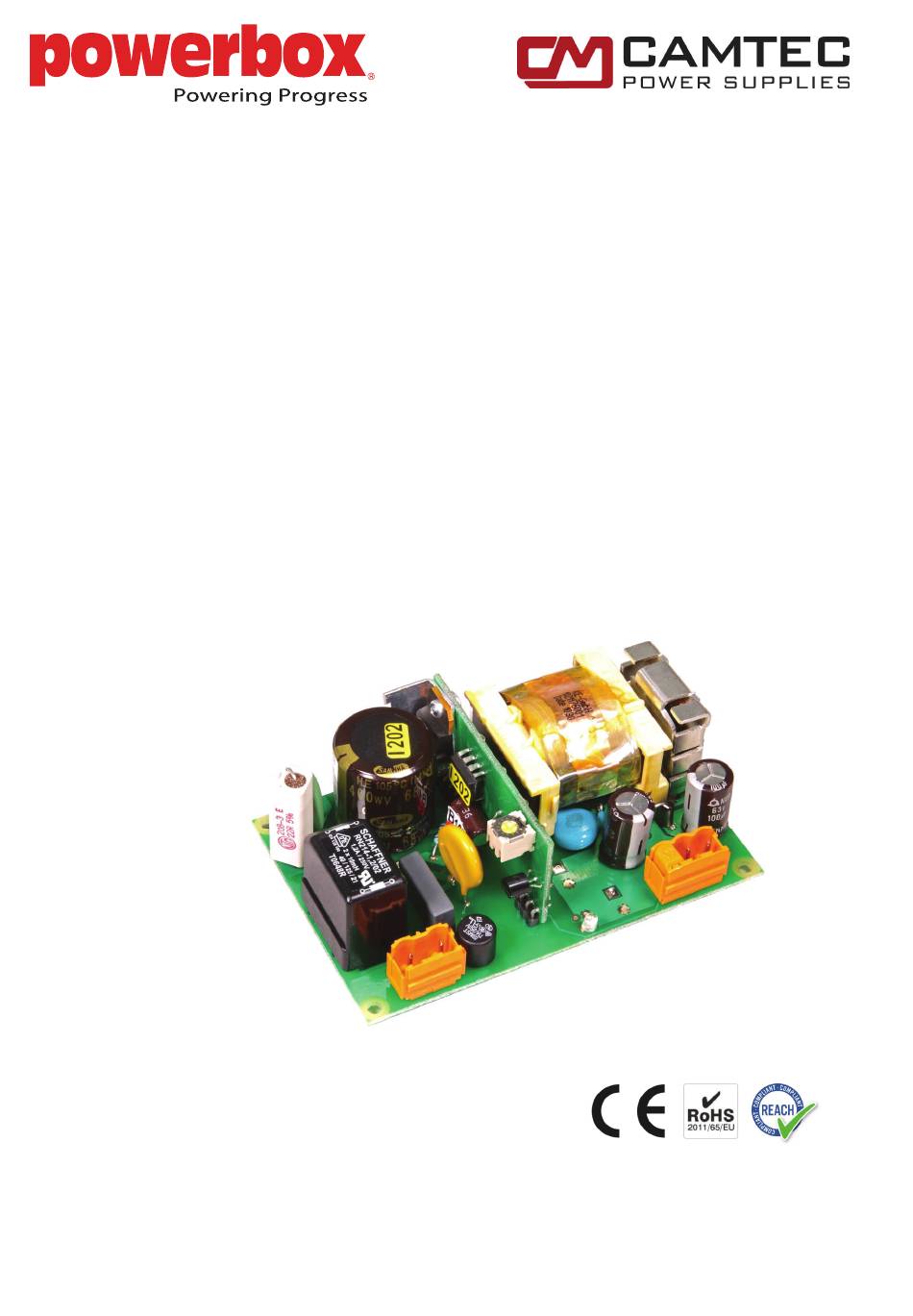

PowerBox Camtec OSW00301 Quick Start Manual

OSW00301
30 Watts Power Supply -20...+70°C
85..265Vac Input Voltage
Short Specification:
•
Screw terminal plugs & Molex-plugs
•
High efficiency up to 86%
•
Continuous short circuit protected
•
Overload & low voltage protected
•
Soft start & auto-recovery
•
Minimum load = 0A
•
Hold up time >40ms
•
Galvanic insulated
•
Sense mode for 3.3V and 5V
Applications:
- critical loads like LED,
thermal element & dc drive
- Audio applications very low
ripple & noise
- Sensitive test equipment
Mini DC-UPS
-
Models: 5V, 9V, 12V, 15V, 18V, 24V, 48V, 60V
Powerbox Australia Pty Ltd
4 Beaumont Rd Mount Kuring Gai NSW 2080 AUSTRALIA
1800 251 380 sales@powerbox.com.au www.powerbox.com.au
(Subject to alterations. This product is not designed to be used in applications such as life support systems wherein a failure or malfunction could result in injury or death)
•
•
•
•
•
•
•
•
Sydney (Head Office)
Version 1.0 10/2018
Low Ripple
Made in Germany
Free air convection
Series operation mode
Parallel operation mode
EMI/EMS EN61000-6-2,3, EN55022 class
PFC : EN61000-3-2 class A
Safety : cUL60950/16950 IEC(EN)60950-1
Power LED
Low ripple/noise , smart start-up with critical
loads24 hours burn in test
Powerbox Pacific Ltd
1a Henry Rose Place Albany Auckland 0632 NEW ZEALAND
09 4158 320 sales@powerbox.co.nz www.powerbox.co.nz
Auckland
1
