3. CONTROL ELEMENTS AND CONNECTIONS

The various control elements of your BCD3000 are described in this chapter. All controls and connections are explained in detail, and
there are several useful tips on their use.

3.1 Control surface

The microphone input section (MIC INPUT)
Set the volume of the microphone signal with the MIC LEVEL
control.
The CLIP LED illuminates as soon as the microphone signal
level is too high and could possibly cause audible distortion.
If this happens, slightly turn the MIC LEVEL control counter-
clockwise.
The microphone input section has a 2-band equalizer (EQ
HIGH for high frequencies and EQ LOW for low
frequencies).
Select the input source with the buttons EXT IN A / EXT IN
B. If the buttons are not pressed (LEDs are off), the Deck
A and B signals in the TRAKTOR 3 LE software are played
back. If you press one of the buttons (LEDs light up), the
analog input signal of the BCD3000 is passed on to the
corresponding deck in the TRAKTOR software. On Deck
A, the Phono input A
back. On Deck B, you hear the input B signal (Phono or
CD).
B-CONTROL DEEJAY BCD3000

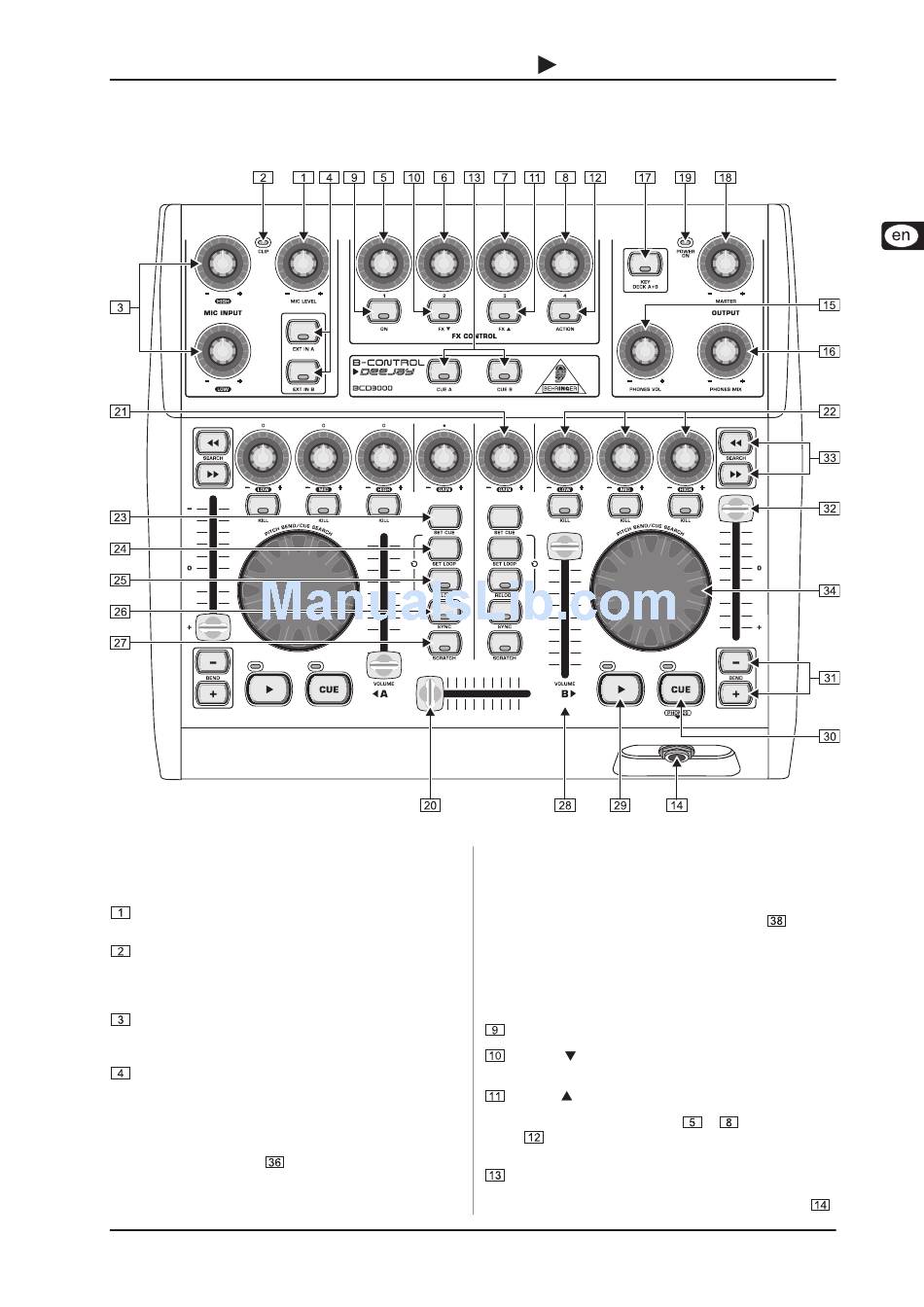

Fig. 3.1: The BCD3000's control elements
or microphone signal is played
3. CONTROL ELEMENTS AND CONNECTIONS
You can either specify the input source for Deck A in the
Control Panel (Windows only) or with MIDI commands (see
Chapter 6.3). For Deck B, select the input source on the
rear panel of the device (Phono/Line switch
The FX CONTROL section
This section allows you to select and control effects with the
BCD3000. In the manual of the TRAKTOR 3 LE software (as PDF
in the TRAKTOR 3 LE folder under "Documentation"), you can
find the available effects.
The ON button activates the effects section.
The FX button switches to the preceding available
effect.
The FX button switches to the next available effect.
The assignment of the four controls
button depends on the selected effect.
The OUTPUT section
The CUE A and CUE B buttons allow you to listen in on Deck
A or B. Keep the respective button pressed to feed the
signal of Deck A or Deck B to the Headphone output
).
– and the ACTION
.
