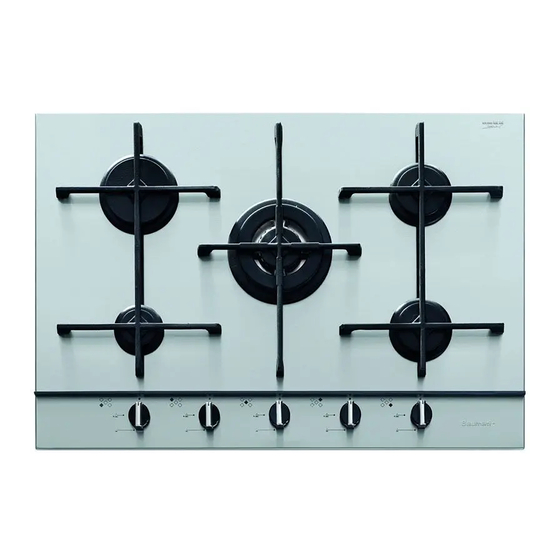

Summary of Contents for Baumatic AS24SS
- Page 1 Instruction manual...
- Page 3 GAS HOBS USER AND INSTALLATION INSTRUCTIONS HT Mod 05/07/06...
- Page 4 For future reference please record the following information which can be found on the Rating Plate and the date of purchase which can be found in the invoice: Model Number ……………………. Serial Number ……………………. Date of Purchase …………………….
-
Page 5: Table Of Contents
CONTENTS General Information Warning and Safety Instructions Instructions for Use Instructions for Installation Technical Data Conditions of Guarantee page 4 page 5 pages 6–7 Pages 8–12 Pages 12–14 Back cover... -
Page 6: General Information
The aforegoing does not affect your statutory rights. The Warrantee applies to Great Britain and Northern Ireland only. In the event that you require any After Sales Service or advice, please contact the Baumatic Service Department on telephone number – 0118 933 6911. - Page 7 Corgi registered (all Baumatic Engineers are Corgi registered) and for electrical installations, NICEIC registration is recommended. Baumatic Ltd declines any responsibility for injury or damage to persons or property as a result of improper use or installation of this appliance.
-
Page 8: Instructions For Use
USER INSTRUCTIONS These User Instructions should be retained for future reference and for use by a person who is perhaps unfamiliar with the appliance. The following models are covered by these instructions: B16.5 BT62 B16.6 BWK1 USING THE HOB The symbols on the Control Panel fascias show which burner the Control Knob operates. Dependent on the model there are two methods for igniting the burners. - Page 9 USER INSTRUCTIONS HELPFUL HINTS Always use the correct diameter pan, one that is the same or slightly larger than the flame ring. The flame should never exceed the diameter of the pan. For model PF75 please make sure you comply with maximum pans' diameters allowed as showed in the picture: The bottom of the pan should be flat and wherever possible, keep the lid on the pan when cooking.
-
Page 10: Instructions For Installation
UK Regulations and Safety Standards or their European Norm Replacements: NOTE : UK law stipulates that gas appliances must be installed and repaired by a CORGI Registered Installer (all Baumatic Engineers are CORGI Registered). Gas safety Regulations (Installation & Use) - Page 11 INSTALLATION INSTRUCTIONS 1. Cut the aperture to the dimensions shown below or use the template if printed on the packaging. 2. Invert the Hob and apply the sealing agent provided to match the outer perimeter edge. 3. If the sealing agent is a strip type, the protective covering must be removed from both sides.
-
Page 12: Ventilation Of Rooms
INSTALLATION INSTRUCTIONS VENTILATION OF ROOMS The actual ventilation requirements must be determined by reference to the Statutory Regulations in force. GAS CONNECTION With one exception these appliances must be connected to the gas supply by use of the ½ BSP Elbow, seal and copper pipe and an isolation tap fitted in an easily accessible position. -
Page 13: Installation Instructions
In order to adjust the minimum gas flow proceed as follows: Ignite the burner and turn down to the minimum setting. Remove the control Knob from the gas tap. Adjust the flow either clockwise to decrease or anti-clockwise to increase the flame. Use a screwdriver inserted down the gas tap rod or via the screw head adjacent to the rod for models fitted with a Flame Supervision Device. -
Page 14: Technical Data
MAINTENANCE During the guarantee period, in case of need all service intervention should be referred back to the Baumatic Ltd Service department. Please note that intervention or repair by any unauthorised personnel will invalidate such guarantee, Before carrying out any maintenance, disconnect the appliance from the gas and electricity supplies. - Page 15 BURNER TYPES AND POWER INPUTS : kW Model Large Max/Min 3.0/0.75 BT62 3.0/0.75 3.0/0.75 3.0/0.75 B16.5 3.0/0.75 B16.6 3.0/0.75 3.0/0.75 BWK1 B17.5 3.0/0.75 B17.6 3.0/0.75 B17.7 3.0/0.75 PWK1 3.0/0.75 3.0/0.75 3.0/0.75 PF75 3.0/0.75 BC45 3.0/0.75 BF45 3.0/0.75 3.0/0.75 AS24 3.0/0.75 AS25 3.0/0.75 Medium...
- Page 16 JET SIZING CONVERSION TABLE: NATURAL GAS / LPG Model Large NG/LPG NG/LPG NG/LPG 1.15/0.85 0.97/0.65 0.72/0.50 BT62 1.15/0.85 0.97/0.65 0.72/0.50 1.15/0.85 0.97/0.65 0.72/0.50 1.15/0.85 0.97/0.65 0.72/0.50 B16.5 1.15/0.85 0.97/0.65 0.72/0.50 B16.6 1.15/0.85 0.97/0.65 0.72/0.50 1.15/0.85 BWK1 B17.5 1.15/0.85 0.97/0.65 0.72/0.50 B17.6 1.15/0.85 0.97/0.65 0.72/0.50 B17.7...
-
Page 17: Conditions Of Guarantee
The conditions of the guarantee, which applies, to your Baumatic appliance are as follows: All ‘Work’ in relation to the Guarantee must be carried out by Baumatic Ltd or an approved service agent of Baumatic Ltd. Any claims made under the terms of the guarantee must be supported by the original invoice / bill of sale issued at the time of purchase. - Page 19 In Übereinstimmung mit den Anforderungen der Europäischen Richtlinie 2002/96/EG über Elektro- und Elektronik-Altgeräte (WEEE) ist vorliegendes Gerät mit einer Markierung versehen. Sie leisten einen positiven Beitrag für den Schutz der Umwelt und die Gesundheit des Menschen, wenn Sie dieses Gerät einer gesonderten Abfallsammlung zuführen.
- Page 20 Dette apparatet er merket i samsvar med EU-direktiv 2002/96/EC om avhending av elektrisk og elektronisk utstyr (Waste Electrical and Electronic Equipment - WEEE). Forsikre deg om at dette produktet blir avhendet på korrekt vis, slik at det ikke kan utgjøre noen helse- eller miljørisiko. Symbolet på...
- Page 24 Baumatic ® w w w . b a u m a t i c . c o m...
