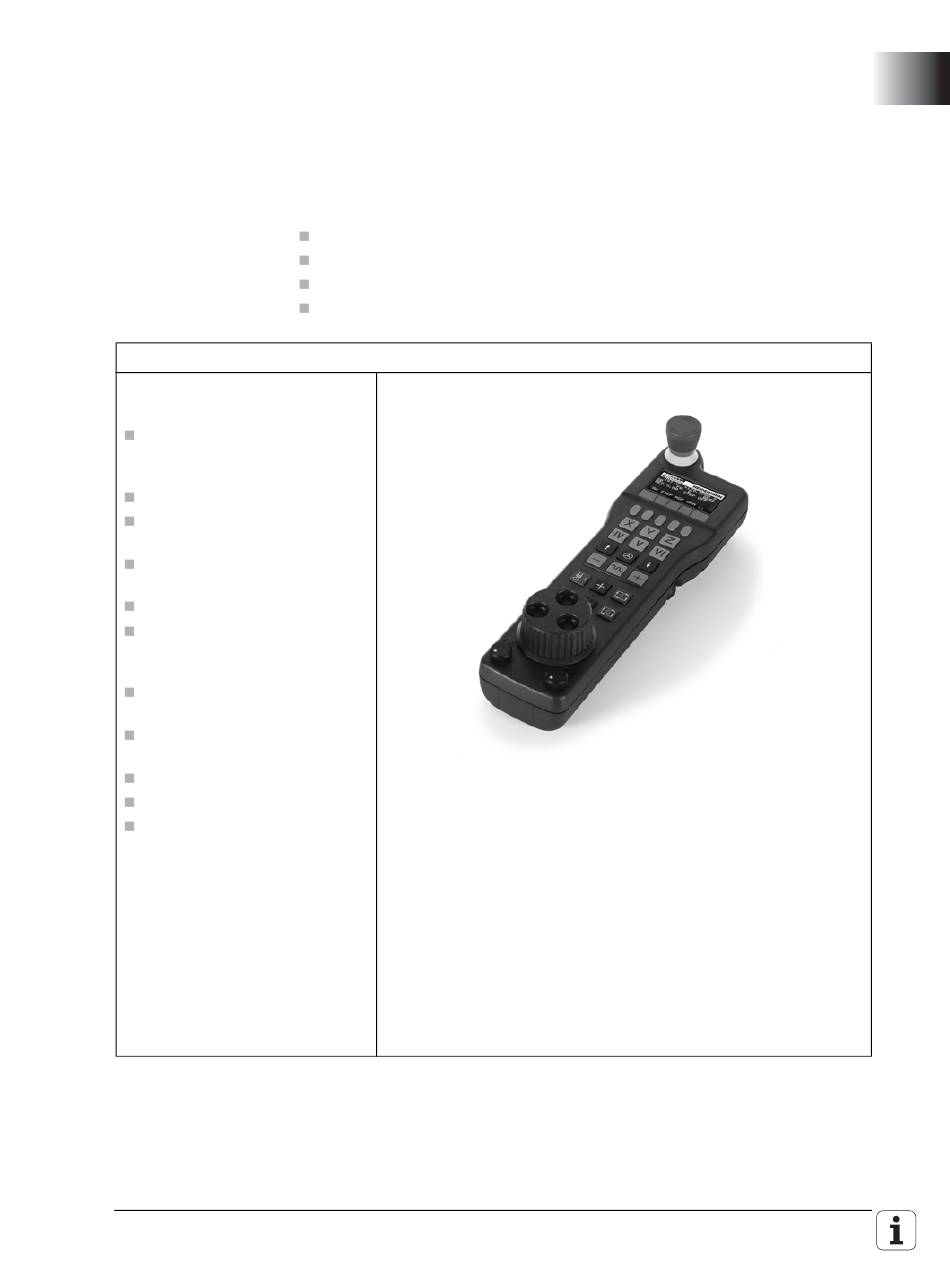

1 HR 550FS Handwheel

1.1 Handwheels

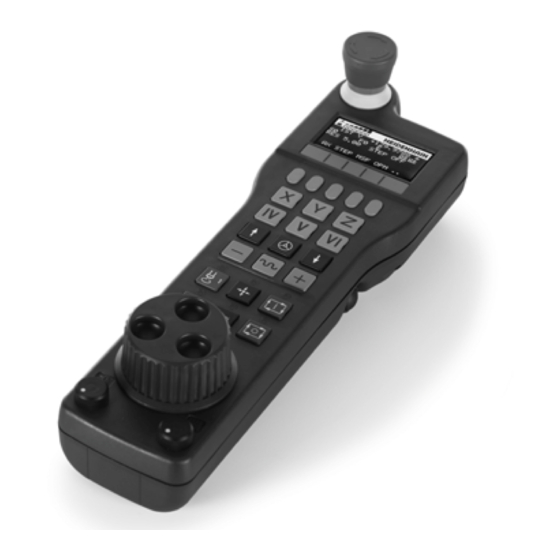

HR 550FS handwheel with wireless transmission

Portable electronic handwheel
with wireless transmission:
Graphic display,
Resolution: 128 x 64 pixels,
6-line display
6 NC keys
6 PLC keys with LEDs that are
controlled through the PLC
2 override potentiometers
(feed rate and spindle speed)
2 permissive buttons
Exchangeable snap-on keys for
PLC functions and
maintenance
Integrated emergency stop
button
Vibration alarm when leaving
the radio range
Battery warning
Display of radio field strength
Weight: Approx. 1 kg
Without mechanical detent:
ID 598 515-xx
With mechanical detent:
ID 606 622-xx
Accessories (1 x included with
the HR 550FS):
Handwheel batteries
(battery pack, 4-tray)
ID 623166-02
July 2010
The standard iTNC 530 HSCI supports the use of electronic handwheels. They
are connected to X23 of the machine operating panel.
The following handwheels can be installed:
One HR 550FS portable handwheel with wireless transmission
One HR 520 portable handwheel with connecting cable, or
One HR 410 portable handwheel with connecting cable, or
One HR 130 panel-mounted handwheel
1.1 Handwheels
1

Advertisement

Table of Contents
loading

Related Manuals for HEIDENHAIN HR 550FS

Summary of Contents for HEIDENHAIN HR 550FS

  • Page 1 X23 of the machine operating panel. The following handwheels can be installed: One HR 550FS portable handwheel with wireless transmission One HR 520 portable handwheel with connecting cable, or One HR 410 portable handwheel with connecting cable, or...
  • Page 2 HRA 551FS Handwheel holder (docking tray) with integrated charger for handwheel batteries ID 731 928-xx HEIDENHAIN Technical Manual iTNC 530...
  • Page 3 1.1.1 HR 550 wireless handwheel The HR 550FS wireless handwheel must always be used together with the HRA 551FS handwheel adapter. The handwheel and the handwheel adapter communicate with each other via radio transmission. The handwheel adapter is connected to X23 of the machine operating panel via the connecting cable.
  • Page 4 1 kg ID for HR 550FS without mech. 598 515-xx detent ID for HR 550FS with mech. detent 606 622-xx ID HRA 551FS 731 928-xx When using a wireless handwheel and the HRA adapter at X23 of the MB 6xx, you must ensure that the assignment between the handwheel and the HRA is unambiguous.
  • Page 5 For configuring the HR 550FS handwheel, refer to the chapter ‚ÄúConfiguring the HR 550FS Wireless Handwheel‚Äù in the User's Manual for the control. The functions that can be defined for the soft keys on the HR 550FS are the same as for the HR 520.
  • Page 6 There is no guarantee, however, that such interference will not occur in a particular installation. Hinweis This wireless handwheel from HEIDENHAIN must be installed and used in strict accordance with the manufacturer's instructions as described in this technical documentation and the user's manual for your control. Any other installation or use will violate FCC Part 15 regulations.
  • Page 7 HR 550FS. The safety functions must not be bypassed or deactivated in some other way. Modifying or rebuilding the HRA 551FS and HR 550FS is not permitted and may lead to a loss of the safety functions.
  • Page 8 The charge of the handwheel battery becomes too low. Hinweis The power-up test of the HR 550FS must be repeated within no more than 168 hours. The HR 550FS handwheel and the HRA 551FS handwheel adapter must be turned off and on again to conduct the test.
  • Page 9 HRA 551FS – Connector overview HRA 551FS Internal pin layout Connector Function Page X223 Serial handwheel interface 1 ‚Äì 9 X230 Emergency stop, 1 ‚Äì 10 permissive buttons of handwheel X223 X230 X223: Serial Connecting cable for serial interface from X23 of the MB to X223 in the HRA interface on ID 683 259--xx.
  • Page 10 When at least one of the permissive button is pressed, the relay is not actuated anymore and relay contact B opens. MP7645.3 must be set to 1 for machines with HEIDENHAIN Functional Safety. Hinweis The interface complies with the requirements of EN 60204-1:2006 for ‚Ä...
  • Page 11 Pin layout for the various extension cables, adapter cables, connecting cables, and the handwheel: Extension cable ID 281 Adapter cable ID 296 466- Connecting cable ID: see ‚ HRA 551FS 429-xx ÄúIntroduction‚Äù chapter D-sub D-sub D-sub Coupling Cnnctr. (male) Cnnctr. connector cnnctr.
  • Page 12 B/clamp 1 conatct A/clamp 2 contact A/clamp 1 Additional components Connecting cables Spiral cable 312 879-01 Normal cable 296 467-xx With metal armor 296 687-xx Plug-in terminal strips for advance ordering 4-pin terminal block 266 364-12 HEIDENHAIN Technical Manual iTNC 530...
  • Page 13 NC or PLC. All settings that can be defined in the machine parameters of the HR 520 can also be used for the HR 550FS. The PLC markers of the HR 520 also match those of the HR 550FS. All keys of the HR 5x0 are evaluated by the NC. Certain keys are mapped to PLC markers.
  • Page 14 HEIDENHAIN Technical Manual iTNC 530...
