Instruction Manual
D104551X012
Fisher
easy-Drive
™
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Scope of Manual
This instruction manual provides product information including installation for the Fisher easy-Drive
RPU-100. For Fisher easy-Drive actuators refer to the appropriate easy-Drive actuator instruction
manual. To avoid personal injury or property damage, it is important to carefully read, understand, and
follow all the contents of this manual, including all safety cautions and warnings. If you have any
questions about these instructions, contact your
Description
The easy-Drive RPU-100 is a reserve power unit designed to provide backup power to the easy-Drive actuator upon
loss of incoming power. The RPU-100 provides enough power to the actuator to allow the actuator to drive the valve
to the pre-defined loss of power or loss of signal position. The RPU-100 can be ordered with a new easy-Drive assembly
or be retrofit into existing easy-Drive units that have the Gen2 control board.
www.Fisher.com
™
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . .
RPU-100

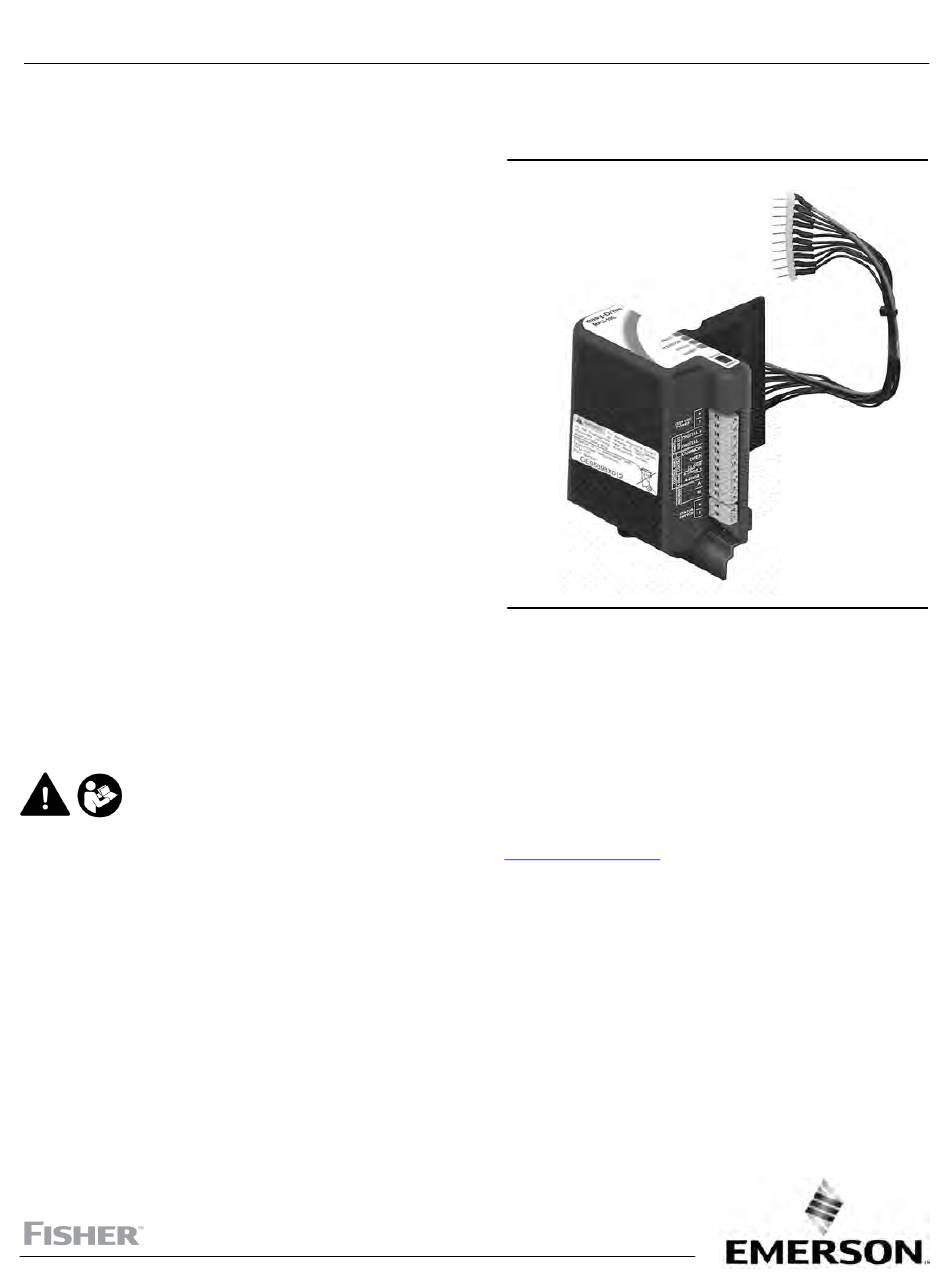

Figure 1. Fisher easy-Drive RPU-100
1
1
1
2
2
3
3
3
4
5
5
5
6
6
7
10
15
15
15
15
X1718
16
20
Emerson sales office
easy-Drive RPU-100
before proceeding.
May 2021
Advertisement
Table of Contents
Related Manuals for Emerson Fisher easy-Drive RPU-100
Summary of Contents for Emerson Fisher easy-Drive RPU-100
-
Page 1: Table Of Contents
™ Contents Figure 1. Fisher easy-Drive RPU-100 Introduction ....... . . -
Page 2: Educational Services
30 mA at 24 VDC, 50 mA at 12 VDC 0.5 kg (1 lb) Educational Services For information on available courses for the easy-Drive RPU-100, as well as a variety of other products, contact: Emerson Automation Solutions Educational Services - Registration Phone: 1-641-754-3771 or 1-800-338-8158 E-mail: education@emerson.com emerson.com/fishervalvetraining... -
Page 3: Product Operation
The switch enables or disables the functionality of the RPU. When the switch is in the “disable” position the RPU-100 will continue to pass line power through to the actuator and charge but will not provide backup capability upon loss of power. Figure 2. Fisher easy-Drive RPU-100 Switch SWITCH X1726... -
Page 4: Led Key
Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 LED Key Figure 3. States of the Fisher easy-Drive RPU-100 Power Attention Fault Status (Yellow) (Green) (Blue) (Red) Normal Operation Charging Providing Power Disabled Recoverable Fault Non-Recoverable Fault INDICATES SOLID LIGHT INDICATES FLASHING LIGHT... -
Page 5: Easy-Drive User Interface
Instruction Manual easy-Drive RPU-100 D104551X012 May 2021 easy-Drive User Interface The easy-Drive configurator is available on the Emerson easy-Drive product website or Fisher.com. Figure 4. Fisher easy-Drive Configuration Software Loss Detect The loss detect is a user defined time the RPU-100 will wait to verify loss of power before performing a backup operation. -
Page 6: Installation
Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 Installation WARNING Avoid personal injury from sudden release of process pressure or bursting of parts. Before performing any maintenance operations: D Do not remove the actuator from the valve while the valve is still pressurized. D Always wear protective gloves, clothing, and eyewear when performing any maintenance operations to avoid personal injury. -
Page 7: Mounting
RPU-100 D104551X012 May 2021 Mounting The RPU-100 is mounted using the motor/gearbox bolts and the provided mounting bracket. Figure 5. Fisher easy-Drive RPU-100 Mounting WIRING HARNESS GE95898_A MOUNTING SCREWS MOUNTING BRACKET 1. Loosen all four motor housing bolts, removing the three bolts as shown below. - Page 8 Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 3. Use the motor housing bolts removed in step one to secure the mounting bracket in place. Note the washers will not be used with the bolts with the mounting bracket. Figure 7. X1720 4.
- Page 9 Instruction Manual easy-Drive RPU-100 D104551X012 May 2021 6. Once the RPU-100 is locked in place install the two mounting screws to finish securing the unit. Figure 9. X1721 X1724 7. Use the provided wiring harness to connect the RPU-100 to the easy-Drive control board. Tighten all terminals to ensure solid mechanical connection.
-
Page 10: Wiring
Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 Wiring Power Requirements Ensure a stable DC power source is available, maintaining less than 5% ripple and sufficiently surge protected for the application. A 4 amp (minimum) power supply is required. Wiring Instructions 1. - Page 11 Instruction Manual easy-Drive RPU-100 D104551X012 May 2021 Power 1. Connect 12 or 24 VDC reference to: – 2. Connect 12 or 24 VDC positive to: + Figure 12. Wiring - RPU-100 Input...
- Page 12 Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 Figure 13. Wiring - Analog Input Figure 14. Wiring - Dual Dry Contact...
- Page 13 Instruction Manual easy-Drive RPU-100 D104551X012 May 2021 Figure 15. Wiring - Modbus Input MODBUS A (T+) MODBUS B (T-) Figure 16. Wiring - Auxiliary Digital I/O...
- Page 14 Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 Figure 17. Wiring - Auxiliary Digital I/O 10 V, 25 mA max Figure 18. Wiring - RPU-100 Status Switch DISCRETE DEVICE EXTERNALLY POWERED DISCRETE DEVICE SELF-POWERED...
-
Page 15: Replacement
WARNING Use only genuine Fisher replacement parts. Components that are not supplied by Emerson should not, under any circumstances, be used in any Fisher actuator, because they may void your warranty, might adversely affect the... -
Page 16: Appendix A - Modbus
Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 Appendix A - Modbus A.1 Register Summary Table 2. easy-Drive RPU-100 Modbus Map Type Name MB Register Default Values Notes uint16 RESERVED 44001 uint16 RESERVED 44002 uint16 RESERVED 44003 uint16 RESERVED 44004 uint16 RESERVED 44005 uint16... - Page 17 Instruction Manual easy-Drive RPU-100 D104551X012 May 2021 Table 2. easy-Drive RPU-100 Modbus Map (cont.) Type Name MB Register Default Values Notes The amount of time that power is lost before the Loss of Power Detection uint16 44041 50 - 3000 RPU makes the decision power is truly lost and takes Timeout action.
- Page 18 Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 Table 2. easy-Drive RPU-100 Modbus Map (cont.) Type Name MB Register Default Values Notes uint16 RESERVED 44106 uint16 RESERVED 44107 uint16 RESERVED 44108 uint16 RESERVED 44109 uint16 RESERVED 44110 uint32 PCB serial number 44111, 44112 R/W* 0 - 4,294,967,295 PCB serial number...
- Page 19 The RPU-100 has experienced a fatal error and 0x1000 0001 0000 0000 0000 System or Watchdog fault 4096 restarted. Contact your Emerson sales office. A memory fault has occurred and the actuator Fault in N.V. Memory – system unable to restore 0x0100 0000 0001 0000 0000 cannot be restored to factory defaults.
-
Page 20: Appendix B - Certificate Of Conformance
Instruction Manual easy-Drive RPU-100 May 2021 D104551X012 Appendix B - Certificate of Conformance -continued-... - Page 21 Instruction Manual easy-Drive RPU-100 D104551X012 May 2021 Appendix B - Certificate of Conformance (cont.)
- Page 22 Instruction Manual easy-Drive RPU-100 May 2021 D104551X012...
- Page 23 Instruction Manual easy-Drive RPU-100 D104551X012 May 2021...
- Page 24 Fisher and easy-Drive are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective owners.
