WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. The AC power cord must be changed only at a qualified service shop.
The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No.______________ Serial No.______________ For customers in the USA If this product is not working properly, please call 1-866-909-7669.
Page 4
“BONUSVIEW” are trademarks of Blu-ray Disc Association. • “x.v.Color” and “x.v.Color” logo are trademarks of Sony Corporation. • “BRAVIA” is a trademark of Sony Corporation. • “PhotoTV HD” and the “PhotoTV HD” logo are trademarks of Sony Corporation. • MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
Table of Contents WARNING ........... . 2 Precautions .
Page 6
• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

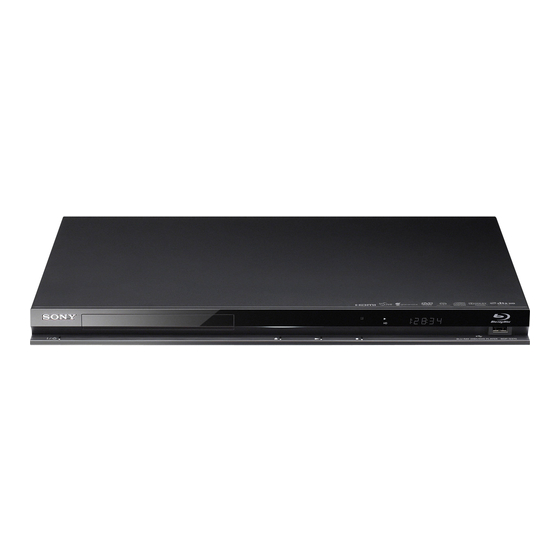

Guide to Parts and Controls Front panel The N button has a tactile dot. Use the tactile dot as a reference when operating the player. A Disc tray B Power indicator Lights up in white when the player is turned on. C Remote sensor D Front panel display N, X: Lights up during playback or...
Remote The available functions of the remote differ depending on the disc or the situation. • Number 5, AUDIO, VOL +, and N PLAY buttons have a tactile dot. Use the tactile dot as a reference when operating the player. •...
Page 9
</M/m/, Moves the highlight to select a displayed item. Center button (ENTER) Enters the selected item. E . PREV/NEXT > Skips to the previous/next chapter, track, or file. X PAUSE Pauses or re-starts playback. m/M (fast reverse/fast forward) • Fast reverses/fast forwards the disc when pressed during playback.
Hookups and Settings Step 1: Connecting the Player Do not connect the AC power cord until you have made all the connections. For supplied accessories, see “Supplied accessories” (page 23). Connecting to your TV Select one of the following connection methods according to the input jacks on your TV. Match the color of the plug to that of the jack when connecting.
Connecting to your AV amplifier (receiver) Select one of the following connection methods according to the input jacks on your AV amplifier (receiver). When you select A or B, make the appropriate settings in the [Audio Settings] setup (page 17). See “Supplied accessories”...
Step 2: Easy Setup When turned on for the first time Wait for a short while before the player turns on and starts [Easy Setup]. Insert two Size AA (R6) batteries by matching the 3 and # ends on the batteries to the markings inside the battery compartment.
Playback Playing a Disc For playable discs, see “Playable discs” (page 24). Switch the input selector on your TV so that the signal from the player appears on your TV screen. Press Z OPEN/CLOSE, and place a disc on the disc tray. Playing side facing down Press Z OPEN/CLOSE to close the disc tray.
• Some Internet content requires registration via a PC before it can be played. For further details, visit the following website: http://www.sony.com/bluraysupport/ • Some Internet content may not be available in some regions/countries. Prepare for BRAVIA Internet Video.
Available Options Various settings and playback operations are available by pressing OPTIONS. The available items differ depending on the situation. Common options Items Details [Playback Displays a title in playback History List] history of BD-ROM/DVD- ROM/CD-DA based on Gracenote technology. [Repeat Sets the repeat mode.
• We recommend the network update every 2 months or so. • For information about update functions, visit the following website: http://www.sony.com/bluraysupport/ [Screen Settings] x [TV Type] [16:9]: Select this when connecting to a wide-screen TV or a TV with a wide mode function.
x [DVD Aspect Ratio] [Letter Box]: Displays a wide picture with black bands on the top and bottom. [Pan & Scan]: Displays a full-height picture on the entire screen, with trimmed sides. x [Cinema Conversion Mode] [Auto]: Normally select this. The player automatically detects whether the material is video-based or film-based, and switches to the appropriate conversion method.
x [Dolby Digital] [Downmix PCM]: Converts to output Linear PCM signals. Select this when connecting an audio device without a built-in Dolby Digital decoder. [Dolby Digital]: Select this when connecting an audio device with a built-in Dolby Digital decoder. x [DTS] [Downmix PCM]: Converts to output Linear PCM signals.
x [Parental Control Area Code] Playback of some BD-ROMs, DVD VIDEOs, or Internet videos can be limited according to the geographic area. Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password. x [BD Parental Control] Playback of some BD-ROMs can be limited according to the age of the users.
[USB Wireless Setup]: Select this when you use a USB Wireless LAN Adapter. For further details, visit the following website and check the FAQ contents: http://www.sony.com/bluraysupport/ x [Network Connection Diagnostics] You can run the network diagnostic to check if the network connection has been made properly.
Should any problem persist, consult your nearest Sony dealer. Picture There is no picture or the picture is not output correctly. , Check that all the connecting cables are securely connected (page 10).
, The disc has a format that cannot be played back by this player (page 24). , The player cannot play a recorded disc that is not correctly finalized. , The region code on the BD or DVD does not match the player. USB device The player does not detect a USB device connected to the player.
“Exxxx” or “TEM ERR” appears on the front panel display. , When “Exxxx” appears, contact your nearest Sony dealer or local authorized Sony service facility and give the error code. , When “TEM ERR” appears, place the player in a location with adequate ventilation to prevent heat build-up in the player.
Notes About the Discs • To keep the disc clean, handle the disc by its edge. Do not touch the surface. Dust, fingerprints, or scratches on the disc may cause it to malfunction. • Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside...
Note on playback operations of BDs/DVDs Some playback operations of BDs/DVDs may be intentionally set by software producers. Since this player plays BDs/ DVDs according to the disc contents the software producers designed, some playback features may not be available. Note about double-layer BDs/DVDs The playback pictures and sound may be momentarily interrupted when the layers...
While holding down -TV- [/1, enter the TV manufacturer’s code using the number buttons. If more than one code number is listed, try entering them one at a time until you find the one that works with your TV. Manufacturer Sony Hitachi LG/Goldstar Mitsubishi/MGA Panasonic Philips Pioneer...
