Iiyama 7221772A101 User Manual

MOUNTING KITS
For ProLite TF1015MC, ProLite TF1515MC, ProLite TF2415MC
CHECKING THE CONTENTS OF THE PACKAGE
The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or
damaged, please contact your local iiyama dealer or regional iiyama office.
■ Mount-Bracket (Bracket A) :
6pcs (7221772A101: 2pcs for ProLite TF1015MC, 4pcs for ProLite TF1515MC, 6pcs for ProLite TF2415MC)
■ L-Bracket (Bracket B) :
8pcs (7221771A0101: 2pcs for ProLite TF1015MC, 7221771A0201: 6pcs for ProLite TF1515MC / ProLite TF2415MC)
■ Bracket Screw M4×6 : 24pcs (8pcs for ProLite TF1015MC, 16pcs for ProLite TF1515MC, 24pcs for ProLite TF2415MC)
■ User Manual (this document)
SPECIAL NOTES
Mount-Brackets, L-Brackets and screws are necessary to install an open frame monitor.
 The Mount-Brackets and L-Brackets are designed to be mounted to specific wall types and hardware, in accordance
CAUTION
with the installation instructions.
 Using Mount-Brackets, L-Brackets or screws other than those specified in the installation instructions may damage
the monitor.

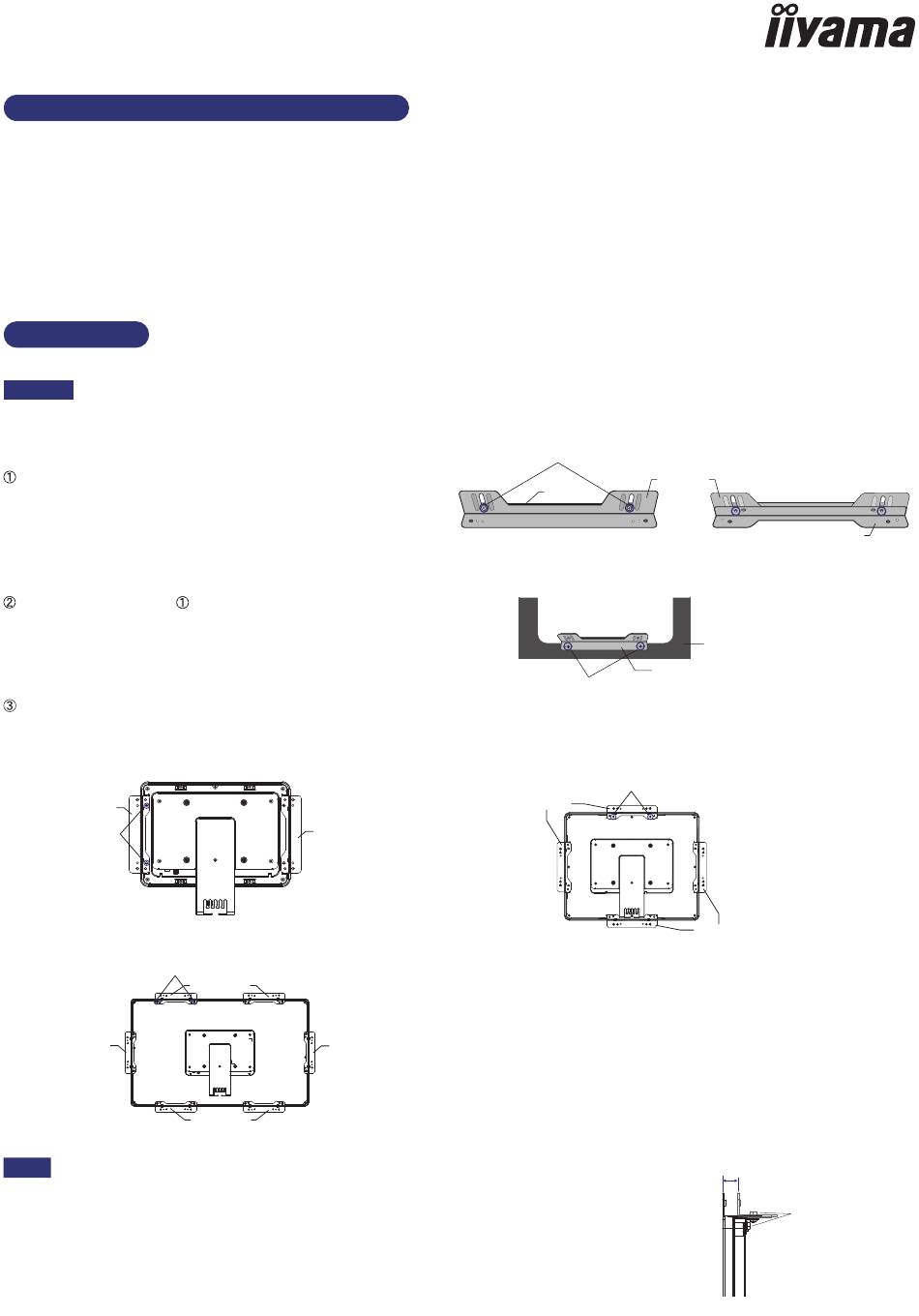

As shown in figure below, tighten Bracket A to B using the
screws supplied.
(Bracket A/B: ProLite TF1015MC: 2 pcs each, ProLite
TF1515MC: 4 pcs each, ProLite TF2415MC: 6 pcs each
Screws: ProLite TF1015MC: 4 pcs, ProLite TF1515MC: 8 pcs,
ProLite TF2415MC: 12 pcs)
Attach the Bracket A/B( ) to the back of the recess, where the
monitor is to be attached, and fix it with screws.
(Customer's screws: ProLite TF1015MC: 4 pcs, ProLite
TF1515MC: 8 pcs, ProLite TF2415MC: 12 pcs)
Attach the monitor from the front side of the recess and fix with the screws.
(Screws: ProLite TF1015MC: 4 pcs, ProLite TF1515MC: 8 pcs, ProLite TF2415MC: 12 pcs)
ProLite TF1015MC
Bracket A/B
Screw x 2 x 2
ProLite TF2415MC
Screw x 2 x 6
Bracket A/B
 You will need a screwdriver to mount the Bracket A/B.
NOTE
 Brackets A/B and screws are necessary to install an open frame monitor.
For details regarding the operating temperature and humidity conditions, see
specification of this User Manual.
 The position of the bracket A/B can be either 0 mm or 20.0 mm from the front
of the monitor depending on which screw holes you choose for mounting it.
User manual
Bracket A/B
Bracket A/B
Bracket A/B
Bracket A/B
Screw x 2
Bracket A
Screw x 2
ProLite TF1515MC
Screw x 2 x 4
Bracket A/B
Front of the Monitor
Bracket B
Bracket A
Back of the recess
Bracket A/B
Bracket A/B
20.0mm
Screw holes for
mounting the chassis
M099A08
