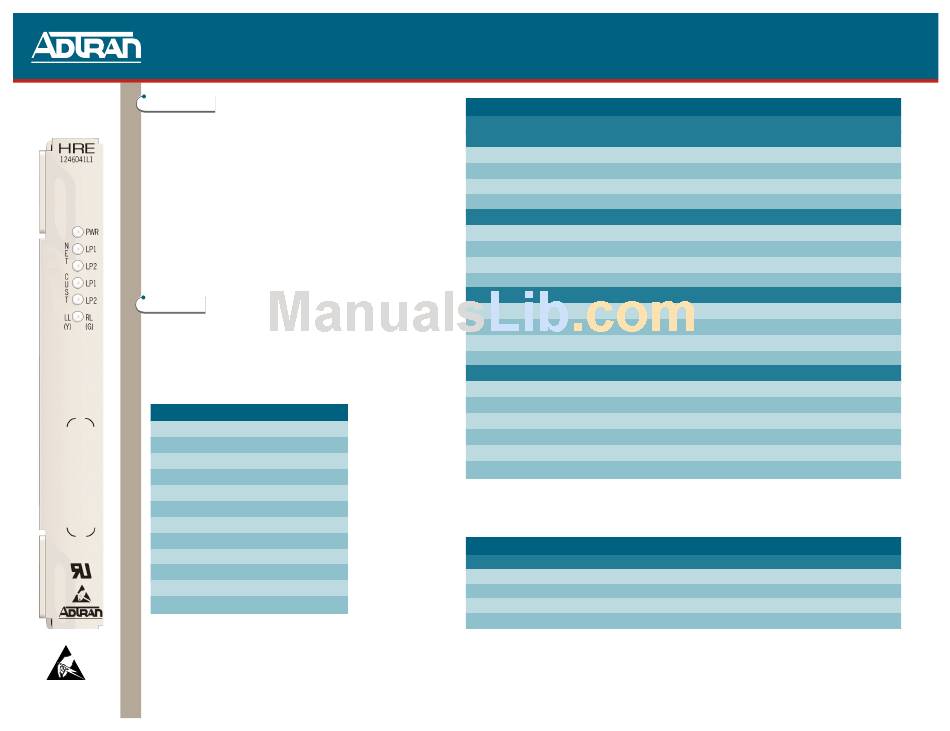

ADTRAN HRE/T200 Turn-Up Manual

STATUS LEDs
HRE / T200
PWR
CLEI: T1R6DTTD_ _
NET LP1/NET LP2
CUST LP1/CUST LP2
LL/RL
LOOPBACK
I
During a loopback toward the network all NET and CUST LP1/LP2
LEDs remain solid. LBK LED is solid yellow.
I
During a loopback toward the customer all NET and CUST LP1/LP2
LEDs remain solid. LBK LED is GREEN. The DSI LED on the HTU-R
flashes during this loopback.
CARD EDGE PIN ASSIGNMENTS
1 Chassis Ground
5 HDSL Loop 1 Tip (Customer)
7 HDSL Loop 1 Tip (Network)
11 Chassis Ground
13 HDSL Loop 1 Ring (Network)
15 HDSL Loop 1 Ring (Customer)
17 –48 V Return (Ground)
27 Chassis Ground
41 HDSL Loop 2 Tip (Network)
47 HDSL Loop 2 Ring (Network)
49 HDSL Loop 2 Ring (Customer)
55 HDSL Loop 2 Tip (Customer)
C A U T I O N C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
G G
OFF No span power is present
G
GREEN Span power is present
G G
OFF No sync with the HTU-C on NET LP1/LP2
G
GREEN Sync with good signal quality
G
YELLOW Sync with marginal signal quality
G
RED Sync with poor signal quality
G G
OFF No sync with the HTU-R on CUST LP1/LP2
G
GREEN Sync with good signal quality
G
YELLOW Sync with marginal signal quality
G
RED Sync with poor signal quality
G
YELLOW HRE network loopback is active
G
GREEN HRE customer loopback is active
I For a complete Installation and Maintenance Practice faxback: (877) 457-5007, Document 453. Please have your fax number available. I
HRE T200
WIRING DIAGRAM FOR HDSL TECHNOLOGY
CP1 Circuit Pack
/Pin #
5-15
7-13
41-47
49-55
CP2
5-15
7-13
41-47
49-55
CP3
5-15
7-13
41-47
49-55
CP4
5-15
7-13
41-47
49-55
Order Wires
Spare Pair
Note: Wiring information is for housing 1150043L1, L2 (L1– aircore cable, L2– gel-filled core cable).
ADTRAN T200/T400 REPEATER HOUSINGS
Part # Description
1150090L1 24-slot Pad Mount Gel Stub
1150090L2 24-slot Pole Mount Gel Stub
1150043L1 4-slot Air Stub
1150043L2 4-slot Gel Stub
Cable / Color For
Wire Housing
Blue White Customer, Loop 1
Orange Red
Orange White
Green Red Customer, Loop 2
Green White Customer, Loop 1
Brown Red
Brown White
Slate Red Customer, Loop 2
Blue Red Customer, Loop 1
Blue Black
Orange Black
Blue Yellow Customer, Loop 2
Green Black Customer, Loop 1
Yellow Orange
Brown Black
Slate Black Customer, Loop 2
Slate White
Green Yellow
HRE Capacity CLEI CODE* Material
24 T1MJ4U0MRA Aluminum
24 T1MJ5UOMRA Aluminum
4 DDMOAD01MA Stainless Steel Dome
4 DDMOBD01MA Stainless Steel Dome
JOB
A
ID
61246041L1-22A
0002
HDSL / HRE
T400 / T200
Network, Loop 1
Network, Loop 2
Network, Loop 1
Network, Loop 2
Network, Loop 1
Network, Loop 2
Network, Loop 1
Network, Loop 2
