Audiovox MP6610 User Manual

Audiovox MP6610 User Manual

1gb with fm radio, oled display and built-in rechargeable battery
Hide thumbs Also See for MP6610:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

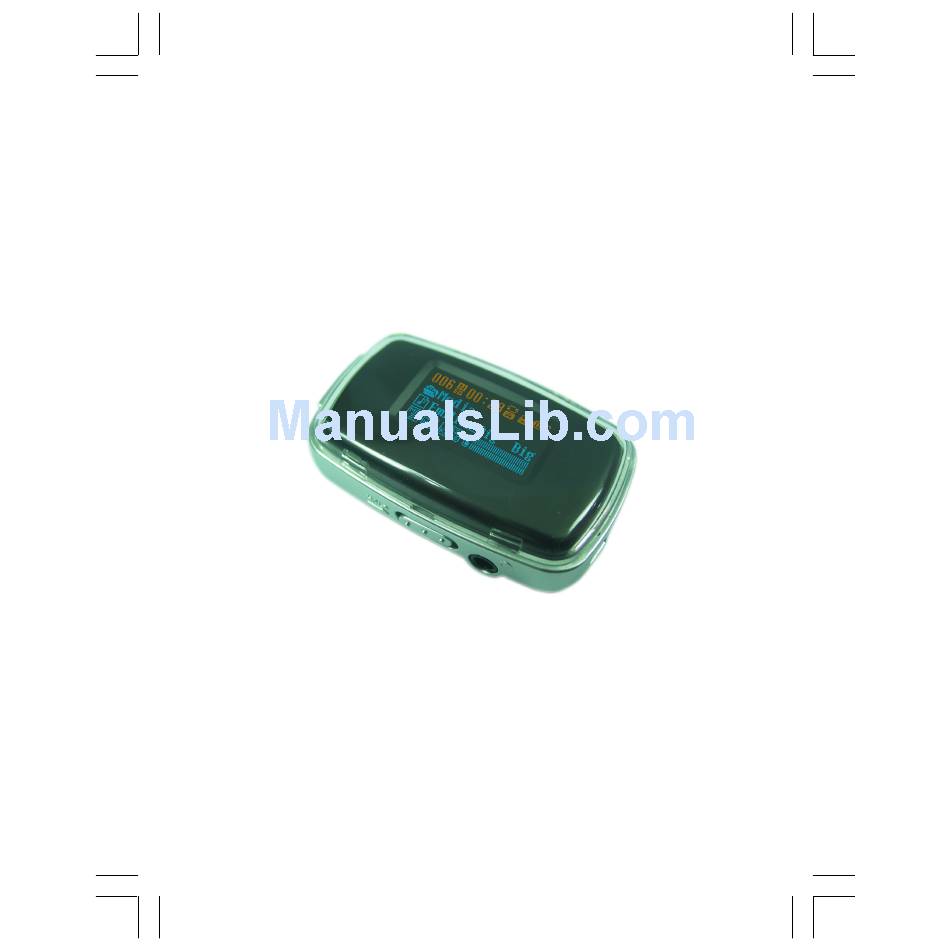

MP3 PLAYER

1GB WITH FM RADIO, OLED DISPLAY
AND BUILT-IN RECHARGEABLE BATTERY
User's Manual
Thank you for purchasing our products.
Before using the unit, please read this manual carefully
to obtain the best performance from your unit and
retain it for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Audiovox MP6610

Summary of Contents for Audiovox MP6610

  • Page 1: Mp3 Player

    MP3 PLAYER 1GB WITH FM RADIO, OLED DISPLAY AND BUILT-IN RECHARGEABLE BATTERY User’s Manual Thank you for purchasing our products. Before using the unit, please read this manual carefully to obtain the best performance from your unit and retain it for future reference.
  • Page 2 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS WARNING & CAUTIONS ...1 NAMES OF EACH PART ...2 CHARGING THE BATTERY ...4 REPLACING THE PLAYER COVER ...6 DISPLAY ...7 GETTING STARTED ...8 POWER ON ...8 POWER OFF ...8 HOLD (LOCKING THE BUTTONS) ...9 PLAYING MUSIC FILES ...10 LISTENING TO THE FM RADIO ...12 MAIN MENU OVERVIEW ...14 NAVIGATION...15...
  • Page 4 PLAY MODE ...22 RETURN ...24 TIMER SET...24 POWER OFF...25 SLEEP TIME...25 RETURN...25 GENERAL SET...26 LCD CONTRAST...26 USB MODE SET...26 FREE MEMORY...27 FACTORY RESET...27 BACK LIGHT ...28 LANGUAGE ...28 DELETE ONE ...29 QUICK FORMAT ...29 ABOUT...30 RETURN...30 EXIT...30 USB DRIVER INSTALLATION (forWindows 98 only)...31 USING IN PC...34 Using Your MP3 Player without Windows Media Player 10...34 Using Your MP3 Player with Windows Media Player 10...35...

  • Page 5: Warning & Cautions

    WARNING & CAUTIONS WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE. TO AVOID ELECTRICAL SHOCK, DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Cautions • All the safety and operating instructions should be read before the unit is operated.

  • Page 6: Names Of Each Part

    NAMES OF EACH PART Front View Rear View...
  • Page 7 ! F.F Button Press “!” lightly/repeatedly: To locate the beginning of the next tracks. Keep “!” pressed: To go ahead at high speed. To tune in to FM stations or select preset channels in radio mode. # REW Button Press “#” lightly/repeatedly: To locate the beginning of the current track or previous tracks.

  • Page 8: Charging The Battery

    CHARGING THE BATTERY The MP3 player has a built-in, non-user-replaceable, rechargeable battery. Connecting to a Computer and Charging the Battery 1. Turn on your computer. 2. Connect the unit to your computer via the supplied USB cord. • Connect the small connector of the USB cord to the MINI USB port of the unit.
  • Page 9 4. The charging begins when the “Charging now No USB function” appears on the unit screen. • To install the Windows98 USB driver, please see page 31. • To use the unit in your computer, please see page 34. Notes: •...

  • Page 10: Replacing The Player Cover

    REPLACING THE PLAYER COVER You can replace your desired color covers. 1. Gently pull the cover away from the unit. 2. Insert the latch of the cover into the corresponding slot. Push the cover until it locks into the place.
  • Page 15 To Skip a Track • During playback, you can skip a track by pressing the “#” or “!” button. Each press skips one track. The first press on the skip backward the “#” button goes to the beginning of the current track.

  • Page 16: Listening To The Fm Radio

    LISTENING TO THE FM RADIO 1. In music mode, press and hold the “M” button more than 3 seconds to turn on the radio. • The FM indicator and the frequency will be shown on the display. 2. Press the “#” or “!” button to tune in to your desired stations.
  • Page 17 Auto Scan 1. Press the “M” button to go into the radio menu. 2. Press the “#” or “!” button to select and highlight the “Auto Scan” option and press the “ searching for a station. 3. After tuning in to a station, the station will be stored to the preset channel “CH 01”...

  • Page 19: Navigation

    NAVIGATION In music main menu, press the “#” or “!” button to select the NAVIGATION item and then press the “ Music Library. The following example illustrates steps to search and play songs in the Music Library. • Nine searching methods are available to you: Artists, Albums, Tracks, Favorites, New Musics, Genres, Years, Playlists or Folders.

  • Page 20: Albums

    Albums • To search a track via the albums. 1. In the Music Library menu, press the “#” or “!” button to select the Albums item and then press the “ ” button. 2. Press “#” or “!” button to select an album and then press the “...

  • Page 21: Favorites

    Favorites • To listen to your favorite songs. • User can select favorite musics and add them to Favorites or delete them from it. Add Tracks to Favorites 1. Go into the Music Library menu to search your favorite music. 2.

  • Page 22: New Musics

    Play your Favorite Music 1. Go into the favorites screen and select a track by pressing the “#” or “!” button. 2. Press the “ ” button to start playing. 3. Select the Play All option to play all tracks of the favorites folder.

  • Page 23: Genres

    Genres • To search a track via the genres. 1. Press the “#” or “!” button to select the Genres item and then press the “ button. 2. Press the “#” or “!” button to select a genre and then press the “ 3.

  • Page 24: Playlists

    Playlists • To search a track via the playlists. 1. Press the “#” or “!” button to select the Playlists item, then press the “ button. 2. Press the “#” or “!” button to select an option, then press the “ 3.

  • Page 34: About

    ABOUT In GENERAL SET mode, press the “#” or “!” button to select ABOUT and then press the “ ” button to read the version information. RETURN In GENERAL SET mode, press the “#” or “!” button to select RETURN and then press the “ ”...

  • Page 35: Usb Driver Installation (Forwindows 98 Only)

    USB DRIVER INSTALLATION (for Windows 98 only) When connecting the unit to your PC (Windows 98 OS) for the first time, the USB mass storage function will not be activated without driver installation. Please use the installation CD to install the driver and follow the two kinds of installation methods below.
  • Page 36 3. Select “Search for the best driver for your device (Recommended)”. Click “Next”. 4. Select “Specify a location:” and click “Next”. -32-...
  • Page 37 5. USB driver file is found. Click “Next”. 6. USB driver installation is completed, click “Finish” and restart your computer. -33-...

  • Page 38: Using In Pc

    USING IN PC No Driver is required for Windows Me/2000/XP Operating System. They will detect the Audio Player automatically after the connection with the USB port is established. Note:Do not select the charging battery mode after connecting the unit to your PC. Please see page 4 for details. This player supports MSC (Mass Storage Class) and MTP (Media Transfer Protocol) USB modes, Please see page 26 for setting USB mode.

  • Page 39: Using Your Mp3 Player With Windows Media Player 10

    b) Once all files/folders appear on the “Removable Disk” drive, the transferring is complete. (In MSC mode, you can not view files under the MTP mode in your computer.) Note: The device is capable of transferring files at hi-speed mode of USB 2.0.

  • Page 40: Synchronize Tracks To The Mp3 Player

    Do You Want to Buy Musics from an Online Service? You may download musics from an online service (such as, Napster, MusicNow). It is necessary to sign in to your account to perform certain functions in the online service you selected. You may visit http://www.microsoft.com/windows/windowsmedia/mp10/ onlinestrores.aspx for details.
  • Page 41 2. Locate a music in the Library and right-click on it. Select “Add to -> Sync List”, then the song will be added to “Sync List”. Repeat and add other songs. 3. In Windows Media Player, click Sync and the “Sync List” pane appears.

  • Page 42: Creating A Playlist

    4. Click “Start Sync” to transfer the musics. A progress indicator will show each file transferring. After transferring, the “Synchronized to Device (4 items)” message appears. Total 4 songs are synchronized to the MP3 player. Creating a Playlist Playlists are a great way to control what you listen to on your player. By creating a playlist you can mix any combination of songs you want, and then enjoy them.
  • Page 43 1. In Windows Media Player, click Library and then, in the List pane, click the List Name <example, Now Playing List> dropdown menu. 2. Select “New List -> Playlist” to build a new playlist. -39-...
  • Page 44 3. Drag items from the contents pane to the new playlist and then click “Save Playlist As...”. 4. In the File Name box, type the playlist name. Once you save the playlist, it’s added to the My Playlists category in the library. Then you may click Sync Settings to choose a synchronization method and the playlists you want to synchronize.

  • Page 45: Deleting Tracks Of The Playlist From Your Mp3 Player

    Deleting Tracks of the Playlist from your MP3 Player 1. In Windows Media Player, click the Library tab and the “MTP/ JANUS Player” in the folder tree. 2. Select a folder (like folder) from the device tree or select a track from the folder.

  • Page 46: Disconnecting The Player From Your Computer

    Disconnecting the Player from your Computer — Windows 98: After use, you can directly unplug the device and the “Removable Disk” disappears on the screen of your computer. — Windows XP with MTP mode 1) After use, you can directly unplug the device. 2) The “MTP/JANUS Player”...

  • Page 47: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Should any problem persists after you have made the following checks, consult your nearest service facility. The player cannot power on. • Check if the built-in battery is discharged. Charge the built-in battery. The player does not work. •...

  • Page 48: Specifications

    SPECIFICATIONS Item Flash Memory Memory (128Mb/256Mb/512Mb/1G) MPEG support MP3, WMA, WMA-DRM Supported OS Win.98, Win.Me, Win.2000 & Win.XP FM frequency range 87.5MHz-108.0MHz PC Interface Standard USB 2.0 Built-in Lithium-ion Rechargeable Battery Battery 2 x 7mW (32 Maximum Output (Output through Earphone) S/N Ratio 90dB ("A"...
