4) Abnormal condition of child lock.
Running in setting child lock, the washer lid is opened beyond 4 seconds.
The number window LED display abnormal code:
indicate a problem at the same time.
5) Abnormal condition of water level sensor.
The water level sensor malfunctions or the water level is overrunning the alert level when the
water does not stop.
The number window LED display abnormal code:
indicate a problem at the same time.
6) Abnormal condition of load sensor.
The number window LED display abnormal code:
indicate a problem at the same time.

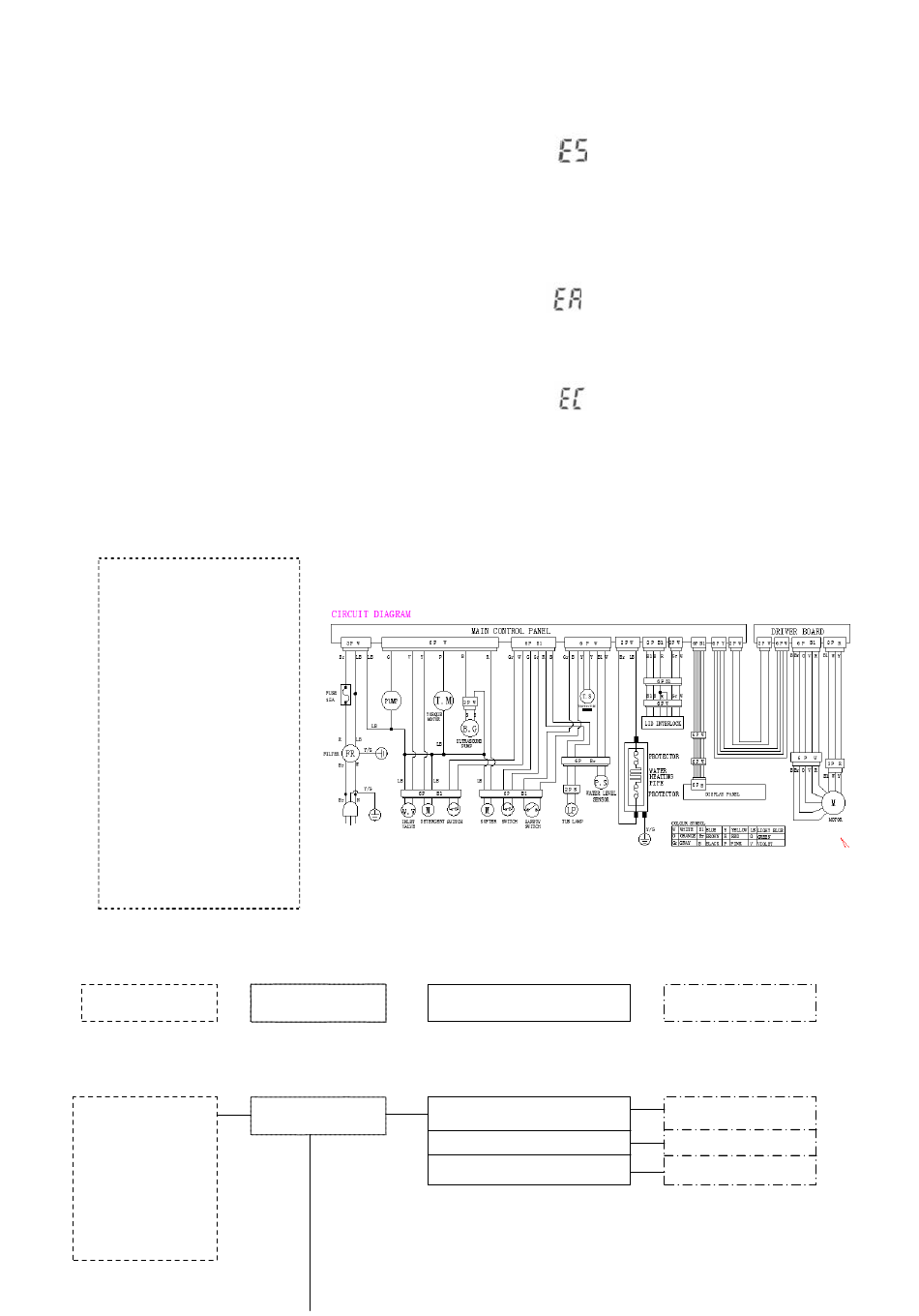

CIRCUIT DIAGRAM

COLOR SYMBOL
Gr GRAY
Bl BLUE
G GREEN
B BLACK
LB LIGHT BLUE
Br BROWN
O ORANGE
P PINK
R RED
W WHITE
Y YELLOW
V VIOLET

THOUBLESHOOTING

TROUBLE
a. Power Source
Any indications
and beep do not
work when
power switch is
on and the start
button is pressed
INSPECTION INSPECTION
Yes
Is fuse blown? Deterioration of fuse.
Motor is defective.
Capacitor is defective.
No
and the electric buzzer sounds to
and the electric buzzer sounds to
and the electric buzzer sounds to
CAUSES
3
REMEDY
Replace.
Replace.
Replace.
