Thunderbird MB65 Instructions

WARRANTY
THUNDERBIRD
Electric Fence Energisers
Thunderbird warrants all electric fence energisers against defective workman-
ship and faulty materials for 2 years, plus a warranty for 6 months against
lightning damage, from the date of purchase. We undertake, at our option, to
replace or repair free of charge each product, or part thereof, on condition that
it is returned to our factory or authorised agent freight prepaid, and found on
examination to be suffering from material or constructional defect. We cannot
be held responsible for any repair other than those carried out by us or our
authorised agents.
A photocopy of your proof of purchase and a request for warranty must
also be returned to us or an authorised agent with the item.
This warranty is void if the product is subject to improper use or handling,
incorrect power input voltage, damage through contact with chemicals, flood-
ing, fire, explosion, excessive heat, lightning strikes outside the lightning
warranty period, insect or moisture damage, or damage to external wiring.
Country Electronics Pty Ltd
ABN 38 003 806 040
11 Industrial Avenue
Mudgee NSW 2850
Phone: 02 63723600
Fax: 02 63722597
For your records:
Model No.: ........................................................................................................
Serial No.: .........................................................................................................
Date of Purchase: ..............................................................................................
Place of Purchase: ............................................................................................
Receipt No.: ......................................................................................................
PO Box 391
Mudgee NSW 2850
Email: enquiries@thunderbird.net.au
THUNDERBIRD
MB65 - MB130
INSTRUCTIONS

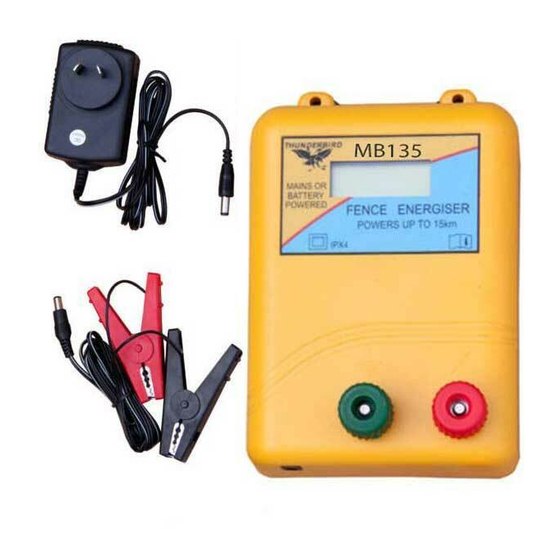

THIS ENERGISER MAY BE POWERED FROM THE MAINS USING THE
SUPPLIED PLUG PACK ADAPTOR OR A BATTERY.
A SOLAR KIT IS AVAILABLE FOR SOLAR POWERED OPERATION.
NOTE: READ ALL INSTRUCTIONS INCLUDING HELPFUL HINTS
BROCHURE BEFORE USING THIS FENCE ENERGISER.
This range of energisers are highly efficient electrical appliances. Installed and used
correctly, these products should provide years of reliable service. These energisers have an
"O" ring seal for protection against moisture and insect damage.
WARNING:-
1. Regular inspections of electric fences must be undertaken to ensure continued opera-
tional safety and compliance. See "INSTRUCTIONS FOR INSTALLATION AND
CONNECTION OF ELECTRIC FENCES FOR ANIMALS" detailed over the page.
2. Persons coming into contact with high voltage pulses on a high output connection may
have their normal physiological functions interrupted.
3. Young children and infirm persons should not be left unsupervised in the vicinity of an
electric fence energiser or fence.
4. Do not use copper wire. Electrolysis will occur and cause problems over time.
5. Output voltage reduces when the battery is near flat.
INSTRUCTIONS
Place the energiser in a suitable position under cover for connection to the fence, prefer-
ably at the middle of the fence line if powered by a battery. Install the energiser in a shed
or building if powered by a mains plug pack adaptor. Mount energiser upright with fence
terminals to bottom and mounting holes to the top, tighten fasteners to secure energiser to
structure. Drive one or more galvanised earth stakes approximately 1.5m into the ground.
Connect the live wire to the fence or red terminal, and the earth stake to the earth or green
terminal. Once all the fence has been installed, and is being powered by a battery, connect
the red battery clip to the positive terminal of a 12V battery and the black clip to the
negative terminal.
Correct earthing is extremely important. It is the other half of the electric fence. In dry con-
ditions or sandy soil, run an earth wire as well as the live wire as part of the fence, connect
any existing fence to the earth stakes, and drive in extra earth stakes every 1.5km.
