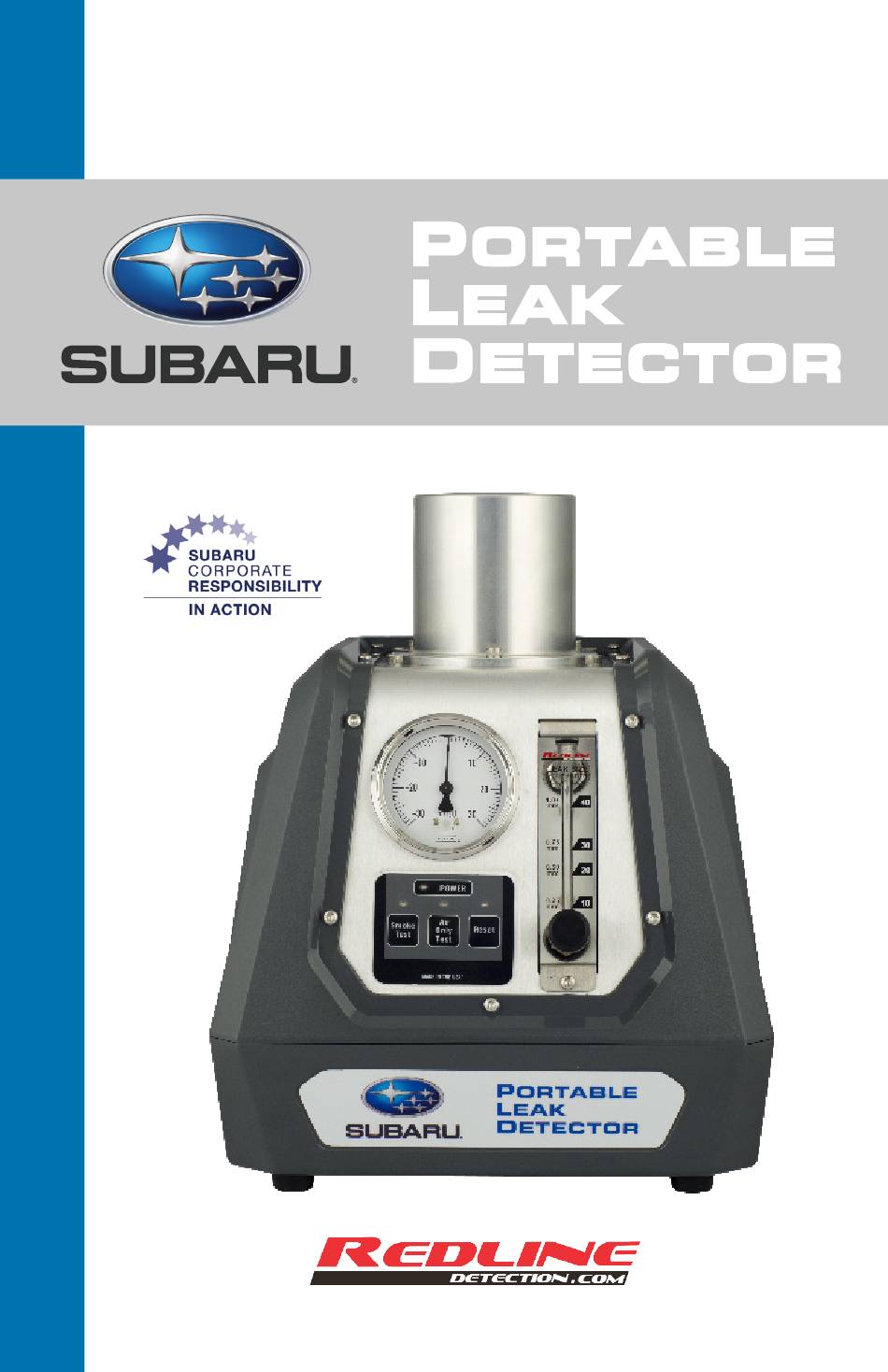

- Page 1 OPERATION MANUAL 697-95-070 Manufactured in California, USA...
-
Page 2: Table Of Contents
CONTENTS Specifications ....................Reference Guide Front ..................Reference Guide Back / Safety ............... Accessories Incuded ..................Set up ........................Troubleshooting ....................Warranty ......................Support ........................ -
Page 3: Specifications
SPECIFICATIONS L x W x H 8 x 10 x 12.5 in. (20 x 25 x 32 cm) Weight 10.8 lbs. (4.9 kg) Shipping Weight 18 lbs. (8.2 kg) Power Supply 12 Volts DC Power Consumption 8 amps Output Pressure 0.47 PSI / 12-14 in. -
Page 4: Reference Guide Front
REFERENCE GUIDE: FRONT VIEW A Compound Pressure Gauge Indicates amount of pressure or vacuum in system being tested Allows for Decay / Leak Down test to confirm repair is 100% complete B Flow Meter Indicates Air / Vapor flow into system under test. Measures leaks down to 0.010” C Flow Control Valve Open to release vapor/ pressure into system by opening the flow control valve Close flow control valve to lock out system for pressure decay testing... -
Page 5: Reference Guide Back / Safety
REFERENCE GUIDE: BACK VIEW H Fluid Fill Port Use Hex Key to remove fluid fill plug I Battery Power Cables Connect to 12-Volt DC battery(+) and chassis ground(-) J Smoke Output Hose SAFETY The procedures in this operation manual are intended to be basic guidelines for users to practice using this diagnostic leak detector This operation manual is not intended to be used in place of common sense: •... -
Page 6: Accessories Incuded
To properly carry PLD and hang under hood or chassis Hex Key 697-80-0009 To remove/ replace fluid fill plug Subaru-Approved Smoke Agent 697-96-0039 To perform over 500 typical tests per bottle IMPORTANT: Contains NO Dye / Contaminants EVAP Service Port Adapter Kit 697-96-0003... - Page 7 ACCESSORIES INCLUDED (CONT.) EVAP Line Sleeve Plug 697-15-0083 To plug EVAP line when disconnected EVAP Line Sleeve Plug with Passthrough 697-15-0084 To introduce smoke / pressure into disconnected EVAP line Fuel Cap Adapter (Single Start) 697-15-0085 To introduce smoke / pressure through fuel filler neck Fuel Cap Adapter (Dual Start) 697-15-0089 To introduce smoke / pressure through fuel...
-
Page 8: Set Up
Replace Fluid Fill Plug Do not overfill Takes up to 2 fluid ounces to refill when empty Do not use dye or UV dye in any Subaru Intake, Exhaust, or EVAP system because it may coat or harm critical sensors 2. -
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION No Green Light Check polarity Ensure 12-Volt battery is fully-charged Reconnect power cables Green Light Flashing Power supply must be between 10V-14V DC Connect to a fully-charged 12-Volt battery Never use battery charger / booster as power source Amber or Red Light Flashing Open Circuit/ internal component Contact Technical Support... -
Page 10: Warranty
WARRANTY The manufacturer, Redline Detection, LLC. (“Redline”) warrants this product to be free from defects in workmanship and material under normal use and service for a period of one-year from the date of purchase. Redline’s liability under this warranty is limited to: (1) repair or replacement of any parts or product which are determined to be defective;... -
Page 11: Support
SUPPORT Technical Support: Bosch Automotive Service Solutions, LLC 1 800-328-6657 dditionAl equipment And consumAbles Are AvAilAble through the ubAru quipment rogrAm subArudeAlersolutions equipment click the iAgnostic ools tAb... - Page 12 697-95-0075 Manufactured by Redline Detection, LLC Made in the USA *with global components...
