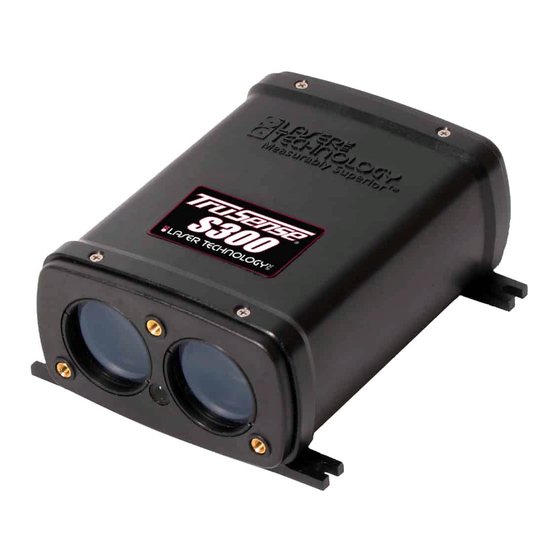

Laser Technology TruSense S300 Series User Manual
Hide thumbs
Also See for TruSense S300 Series
:
User manual
(80 pages)
1
2
Table Of Contents
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
page
of
91
Go
/
91
Contents
Table of Contents
Troubleshooting
Bookmarks
Table of Contents
Table of Contents
Introduction
Accessory Items
Basic Package
Purpose
Safety Precautions
Acquiring a Target
Measurement Technique
Mounting the Trusense S300
Oem Models
Getting Started
Liquids & Fluids Application
Optional Beam Diffuser
Beam Spread of S3Xx over Distance
Window/Sight Glass Application
Dense Steam Application
Foam Application
Alignment
Initial Setup Requirements
Transmit Receive Lens
Before You Start You will Need
Factory Default Settings
Rs-232 Ascii Serial Communication Protocol
Electrical
Hazardous Locations
I/O
Measurement Reference
Mounting
Sunlight
4-20Ma Loop Setup
Programing the S330
4-20Ma Work Sheet
Work Sheet for Setting Trusense S330 for Installation in 4-20Ma Loop
Rs-232 Ascii Measurement Output Messages
First Target
Last Target
Rs-232 Ascii Serial Commands
Strongest Target
Au Display Board Aux Board Status
Ba Rs232 Baud Rate
Ce Number of Consecutive Errors before Reporting for Liquid Measurement
Cl Convert Error Code to Error Message
Co Display $Go Command Parameters
Db Display Banner
Error Code Format
DI Display Return Intensity
DM Target Mode
Dt Display Time
Current Loop Setting
Go Start Distance Measurement
ID Instrument Identification
Is Instrument Status
Ma Manual Start
MM Measurement Mode
Mu Change Measurement Unit
NE Error Reporting On/Off
Os Liquid Setup Command
Oz Instrument Temperature
Pd Power down and Restart Unit
Pe Set Update Period
Ps Change Password
Pw Enter Password
Rd Set Trip Distance
Sn Instrument Serial Number
St Stop Distance Measurement
Su Save User Settings
TG Remote Trigger (Trusense S300 and S310)
Uo User Offset
VO Turn Laser Pointer on (S310 and S330 Only)
VF Turn Laser Pointer off (S310 and S330 Only)
WU Warm up Period
Reference
Application Examples
Liquid Measurement
Sdi-12 Communication
Introduction
S300 / S310 Sdi-12 Configuration
Sdi-12 Data Packet Formats
Sdi-12 Commands
Lti S300/S310 Supported Sdi-12 Commands Summary
Lti S300/S310 Supported Sdi-12 Extended Commands
Sdi-12 Commands Detailed Descriptions and Examples
Address Query
A!" Acknowledge Active
Ai!" Send Identification
Aab!" Change Address
Am!" Start Measurement Defined by Target Mode "Axhn!" or Serial Command $DM
Am5!" Start Measurement for "Temperature
Amcn!" Start Specified Measurement with CRC
Ac!" Start Concurrent Measurement ; Defined by Target Mode "Axhn!" or Serial Command $DM
Ac5!" Start Concurrent Measurement for "Temperature
Accn!" Start Specified Concurrent Measurement with CRC
Ar0!" Start Continuous Level Measurement
Ar5!" Start Continuous Measurement for "Temperature
Arcn!" Start Specified Continuous Measurement with CRC
Ad0!" Send Data
Ad1!" to "Ad9!" Send Additional Data
Av!" Start Verification
Axan!" Set Measurement Mode
Axbn!" Set Liquid Filter Mode
Axcn!" Enable/Disable Auto-Start Mode
Axdn!" Set Liquid Output
Axen!" Set Advanced Filter
Axfn!" Set Running Average
Axgn!" Number of Consecutive Errors
Axhn!" Set Target Mode
Axmn!" Set Number of Measurements to Make
Axp!" Get Measurement Update Period
Axr!" Reset Instrument
Axs!" Save Current Settings
Axvn!" Turn Alignment Laser Pointer On/Off
Axwn!" Set Warm-Up Period
Specifications
Error Codes Rs-232
Troubleshooting
Care and Maintenance
Cleaning
Diagrams - Wiring and Pinouts
Moisture and Dust Protection
Operating Temperature
7054674 Oem Cable
7054671 External Cable: 12 V Power Download Cable
4824758 Integration Cable with Leads
7054691 External Cable: Ruggedized Enclosure Terminal Block Cable
S330 4-20 M a Current Loop Wiring Cable with Optional Rs-232
S330 4-20 M a Current Loop Wiring with Optional Rs-232 for Ruggedized Enclosure Terminal Block
S300 / S310 I/O Trigger Cable Wiring with Optional Rs-232
S300/S310 I/O Trigger Cable Wiring with Optional Rs-232 for Ruggedized Enclosure Terminal Block
S300 / S310 Sdi-12 Cable Wiring for Optional Rs-232 for Ruggedized Enclosure Terminal Block
S300 / S310 Sdi-12 Cable with Optional Rs-232
Diagrams - Mechanical
Ruggedized Enclosure Outside Dimensions
Ruggedized Enclosure Inside Dimensions
3004956 Tank Adaptor
3004960 4 Inch Flange
3004957 Dust / Splash Tube
77035137 Mounting Plate
1134749 Sun Shade Industrial Mount
Housed Model Dimensions Without Lenses
Oem Model Dimensions
Definitions
Appendix A - Ruggedized Enclosure for the Trusense S300 Series
Ruggedized Enclosure Parts List
Ruggedized Enclosure Terminal Block
Ruggedized Enclosure Installation Instructions & Cautions
Appendix B- Trusense S330 User's Interface Setup Tool
What You Need to Get Started
Main Window
Operation of the S330 Software Tool
Configuration Window
Notes
Advertisement
Quick Links
Download this manual
Laser Technology, Inc.
®
TruSense
S300 Series
User's Manual
Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for Laser Technology TruSense S300 Series
Accessories Laser Technology TruSense S300 Series User Manual
(80 pages)
Measuring Instruments Laser Technology TruPoint 200h User Manual
Hybrid measurement technology (68 pages)
Measuring Instruments Laser Technology TruPulse 200L User Manual
(28 pages)
Measuring Instruments Laser Technology TruPulse 200X Quick Reference Field Manual
(14 pages)
Measuring Instruments Laser Technology TruPulse 360R User Manual
(58 pages)
Measuring Instruments Laser Technology TruPulse 200 User Manual
Professional rangefinder (44 pages)
Measuring Instruments Laser Technology LTI 20/20 TruSpeed User Manual
(46 pages)
Measuring Instruments Laser Technology UltraLyte LR B User Manual
(60 pages)
Measuring Instruments Laser Technology UltraLyte User Manual
(80 pages)
Measuring Instruments Laser Technology TruPoint 300 User Manual
(54 pages)
Measuring Instruments Laser Technology TruPulse 200X Manual
Lasersoft quickmap 3d android quick reference add points to a saved survey (6 pages)
Measuring Instruments Laser Technology TruPulse 200 Quick Start Manual
(10 pages)
Measuring Instruments Laser Technology TruPulse 200X User Manual
(62 pages)
Measuring Instruments Laser Technology TruSpeed LTI 20/20 User Manual
(46 pages)
Measuring Instruments Laser Technology LTI 20/20 TruSpeed User Manual
(26 pages)
Measuring Instruments Laser Technology IMPULSE LR User Manual
(88 pages)
Summary of Contents for Laser Technology TruSense S300 Series
Page 1
Laser Technology, Inc. ® TruSense S300 Series User’s Manual Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 2
Order from: C A Briggs Company 622 Mary Street; Suite 101 Warminster, PA 18974 Phone: 267-673-8117 - Fax: 267-673-8118 Sales@cabriggs.com www.cabriggs.com Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 3: Table Of Contents
...................... 15 ISPLAY OMMAND ARAMETERS ............................ 16 ISPLAY ANNER ..........................16 RROR ORMAT ........................17 ISPLAY ETURN NTENSITY ............................17 ARGET Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 4
EASUREMENT WITH “ D0!” S ……………………………………………………………………………………………………………………………………………………..42 “ D1!” “ D9!” S .......................... 43 DDITIONAL “ V!” S ..............................43 TART ERIFICATION Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 5
ERMINAL LOCK & C ................... 80 UGGEDIZED NCLOSURE NSTALLATION NSTRUCTIONS AUTIONS APPENDIX B- TRUSENSE S330 USER’S INTERFACE SETUP TOOL ..............81 Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 6
HAT YOU NEED TO GET STARTED S330 S ..........................82 PERATION OF THE OFTWARE …………………………………………………………………………………………………………………………………………………………..82 INDOW ..............................84 ONFIGURATION INDOW NOTES: ................................ 85 Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 7: Introduction
Front Plate between the Transmit and Receive Lenses of the Class 1 Measurement Laser: Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 8: Mounting The Trusense S300
For example, a smooth surface with the laser normal angle of incident is more reflective than a turbulent surface where Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 9: Liquids & Fluids Application
Whenever a stilling pipe is so narrow over its length that the diameter of the stilling pipe will be less than the diameter of the beam spread (see Table 2). ✓ Figure 2: Beam Spread Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 10: Beam Spread Of S3Xx Over Distance
Free Aperture = 23 mm Beam Diameter at the Target = 0.023 + (0.003 x 100) = 323 mm Window/Sight Glass Application Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 11: Foam Application
(still or turbulent). A general rule of thumb is that if you can see through the steam to the liquid surface, the laser should be able to as well. Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 12: Transmit Receive Lens
2. Signal Strength Return: This method will require a Laptop Windows computer with a RS-232 Com Port attached to the TruSense sensor and a Terminal communication Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 13: Rs-232 Ascii Serial Communication Protocol
The time for an individual measurement will vary depending on liquid mode settings, warm up time, and update period. For more detailed information see Section 7. Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 14: Factory Default Settings
4. The distance from sensor mounting point to the Full level of vessel (Instrument Offset). 5. If your PLC accepts error current signal, what current values are available. Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 15: Programing The S330
Measurements per Second. 3.2.1. Available 1 to 14. Note Only set greater than 1 if your system requires faster than one second Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 16
Note: For more information see serial command $DM 5.1. What measurement conditions? 5.1.1. Open vessel $DN,5 (First Target) 5.1.2. Stilling well $DM,7 (Last Target) Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 17: 4-20Ma Work Sheet
RS-232 ASCII commands. The tool will send the appropriate commands necessary to configure the sensor to integrate to your application environment. Copyright © [2019] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 18: Work Sheet For Setting Trusense S330 For Installation In 4-20Ma Loop
Target Mode $DM Question Target Mode? Open Vessel = 5 Stilling Well = 7 ASCII Command ASCII Command to send $DM,________ $DM,<Line13> Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 19: Rs-232 Ascii Measurement Output Messages
Output message if $DI = 1 (Intensity On) and $DT = 0 or 1 (Time Stamp Off or On) $DL,<distance>,< time power on>,<Power Return>*CRC16<CR><LF> Example: $DL,1.40,7.023,1420*6142<CR><LF> Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 20: Rs-232 Ascii Serial Commands
TO SET NEW BAUDRATE, USE $PD Input: Set $BA,4800<CR><LF> POWER CYCLE Reply: $BA,4800*3A67 <CR><LF> TO SET NEW BAUDRATE, USE $PD OROWER CYCLE Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 21: Ce Number Of Consecutive Errors Before Reporting For Liquid Measurement
Instrument Reply: $CO,<mode>,<number of iterations>,<update period>CRC16<CR><LF> where: = message identifier = mnemonic for Display $GO Command Parameters Mode number of iterations Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 22: Db Display Banner
= mnemonic for Display Error Code = display Error Code status 0 = Display Error Code Only 1 = Display Error Code with Mnemonic Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 23: Di Display Return Intensity
The measurement output represents the distance to the first valid target the sensor identifies. If only one target is found, it will report this target. This is factory default setting. Strongest Target Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 24: Dt Display Time
Input: Set $DT,1<CR><LF> Reply: $DT,2*35C8<CR><LF> $FT 4-20 Current Loop Setting This command is to set all functionality of the 4-20mA current loop. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 25: Go Start Distance Measurement
Note: This command functions the same as using the trigger input connection based on the Ext-Trig ($TG,2 or 3) setting (Active high/Active low). This trigger input connection is only available in the TruSense S300 and S310. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 26: Id Instrument Identification
= command string checksum <CR> = carriage return <LF> = line feed Example: Input: Get $ID<CR><LF> Reply: $ID,DS-330,TruSense S300 Series-1.14-113,JAN 14 2019,11F14194*406F Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 27: Is Instrument Status
Reply: off $MA,0*AC5B Input: Get $MA<CR><LF> Reply: on $MA,2*6DDA Input: Set $MA,0<CR><LF> Reply: off $MA,0*AC5B Input: Set $MA,1<CR><LF> Reply: on $MA,2*6DDA Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 28: Mm Measurement Mode
No Changes to current settings Reply: $MU,F,33,K,11*35B0<CR><LF> Input: Set $MU,M,2<CR><LF> Changes to current settings with Banner turned on $DB,1 Reply: TruSense S300 Series,DS-330-1.14 Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 29: Ne Error Reporting On/Off
= Running average 0= off 2 to 30 = on *CRC16 = 16-bit CRC <CR> = carriage return <LF> = line feed Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 30: Oz Instrument Temperature
Always use the $OS command for measuring liquids. Set: $PE,n<CR><LF> Instrument Reply: $OK*CRC16<CR><LF> Get: $PE<CR><LF> Instrument Reply: $PE,n*CRC16<CR><LF> Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 31: Pw Enter Password
Entering this password will disable the $PW function. Note: The factory default is password disabled. Set: $PS, <CR><LF> Sensor 1 Reply: $OK,PS AGAIN*CRC16<CR><LF> $PS, <CR><LF> Sensor 2 Reply: $OK*CRC16<CR><LF> where: = message identifier Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 32: Rd Set Trip Distance
Stop Distance Measurement This command will stop measurements. Exceptions would be trigger input in effect (See $TG). Direct Action: $ST<CR><LF> Instrument Reply: $OK*CRC16<CR><LF> Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 33: Su Save User Settings
3 vdc or greater. Valid trigger duration must be 40ms or greater. IMPORTANT: When $TG is set to 3 or 4, maximum sensor current drive is 40mA. See $RD for trip settings. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 34: Uo User Offset
Turn Laser Pointer On (S310 and S330 Only) Set: $VO<CR><LF> Instrument Reply $OK*CRC16<CR><LF> = message identifier where: = mnemonic for Turn Laser Pointer On Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 35: Vf Turn Laser Pointer Off (S310 And S330 Only)
= 16-bit CRC <CR> = carriage return <LF> = line feed Example: Input: Get $WU<CR><LF> Reply: $WU,8*761D<CR><LF> Input: Set $WU,10<CR><LF> Reply: $WU,10*4DB0 Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 36: Reference
Measuring liquid in an agitated state might achieve more accurate results if a stilling well or a by-pass pipe is used, as shown below. Figure 6: Tank and Vessel Liquid Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 37: Sdi-12 Communication
Note: Factory default is password disabled. • Enable the SDI-12 interface with the “$TG,5” command. • Enable error reporting “$NE,0” command. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 38: Sdi-12 Data Packet Formats
0x40-0x4F, 2nd and 3rd CRC characters are in the range 0x40-0x7F) ▪ the packet is terminated by a carriage return followed by a line feed Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 39
"aCC0!" can be used in place of "aCC!" specified measurements ID: „0‟ measurement is measurement data defined by $DM(RS-232) or aXHn!(SDI-12) „5‟ measurement is “temperature” measurement data Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 40: Sdi-12 Commands
Start Concurrent Measurement “Temperature” The same as the “aC!” response. The same as the “aM!” description except it‟s for the “Temperature” concurrent measurements. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 41
= sensor SDI-12 address and nothing else indicating that these measurements are not supported <CRC> = the 3-character encoded 16-bit CRC of the response Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 42: Lti S300/S310 Supported Sdi-12 Extended Commands
1 to 14 a = sensor SDI-12 address See serial command n = second parameter of the $OS command Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 43
= 1 to 99 (cannot set to 0 to disable it, use “$WU,0” serial a = sensor SDI-12 address command) n = number of discarded initial measurements Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 44: Sdi-12 Commands Detailed Descriptions And Examples
This command is used to change the SDI-12 for the S300/S310 sensor. The S300/S310 sensor will reset after its SDI-12 address is changed. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 45: Am!" Start Measurement Defined By Target Mode "Axhn!" Or Serial Command $Dm
Command: Response: atttnn<CR><LF> aMCn! where: = specified sensor’s current SDI-12 address = Start Measurement for specified measurement data with CRC SDI-12 Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 46: Ac!" Start Concurrent Measurement ; Defined By Target Mode "Axhn!" Or Serial Command $Dm
= the specified time, in seconds, until the sensor will have data ready nn = the number of measurements being accumulated Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 47: Ar0!" Start Continuous Level Measurement
$MA). Command: Response: a<value><CRC><CR><LF> aRCn! where: = specified sensor’s current SDI-12 address = Start Continuous Measurement for specified measurement data with Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 48: Ad0!" Send Data
= Not used in Liquid Mode = "aXW10!” (i.e. "$WU,30") =Not used in Liquid mode =Not used in Liquid Mode = “aXA4!” (i.e. “$MM,4”) Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 49: Ad1!" To "Ad9!" Send Additional Data
The six configuration settings items returned are: the current measurement iteration count (“aXMn!” or „n‟ in “$GO,n,m”) Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 50: Axan!" Set Measurement Mode
= enable/disable value („0‟ = disable, non-0 = enable – responds with „1‟) = SDI-12 command termination character Example: 8XC1!81<CR><LF> The sensor’ s auto-start mode has been enabled. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 51: Axdn!" Set Liquid Output
This LTI-proprietary SDI-12 extended command configures the number of consecutive errors before reporting an error. This corresponds to the $CE serial command. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 52: Axhn!" Set Target Mode
„m‟ (in tenths of seconds, however) in the “$GO,n,m” serial command. Command: Response: an<CR><LF> aXP! where: = specified sensor’s current SDI-12 address = Get Measurement Update Period extended SDI-12 command Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 53: Axr!" Reset Instrument
This LTI-proprietary SDI-12 extended command configures number of initial measurement laser firings which will be discarded before the first measurement is available. This corresponds to the “$WU,n” serial Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 54
Note: Sending “aXW!” (without the „n‟ value) can be used to query for the current warm-up period setting. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 55: Specifications
Class 1m (IEC 60825-1:2001) Shock Vibration: MIL-STD-810 Dust/Moisture: IP65 Operating Temperature: -28º to 60º C (-20º to 140º F) Table 5: Specifications Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 56: Error Codes Rs-232
60 STACK OVERFLOW Critical Error Code space error. 62 APD FAILED Critical Error Defective Receiver. 63 FLASH MEMORY: Critical Error Calibration memory defective. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 57
Critical Error Measurement timing circuit failure. 70 HV RX FAILED Critical Error Receiver hi voltage circuit defective. Table 6: Error Codes Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 58: Troubleshooting
Make sure lens is clean from dust and excessive condensation • Check for condensation between diffuser lens and sensor lens Table 7: Troubleshooting Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 59: Care And Maintenance
Avoid touching the lens with fingers, as this will leave oily smudges. Using household window cleaners is not recommended on coated optics. Use dedicated lens-cleaning solutions, alcohol, or de-ionized water. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 60: Diagrams - Wiring And Pinouts
RS232 RX RS232 RX RS232 RX +12-24 VDC +12-24 VDC +12-24 VDC White TRIG/SDI-12 TRIG/SDI-12 -4-20 Loop Drawing 1: OEM Cable Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 61: 7054671 External Cable: 12 V Power Download Cable
LTI TruSense S300 Series Integration Manual 3nd Edition Page 55 7054671 External Cable: 12 V Power Download Cable Drawing 2: Power/COM Cable Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 62: 4824758 Integration Cable With Leads
RS232 RX RS232 RX Black Grey SHTDWN SHTDWN 4-20(+) Pink +12-24 VDC +12-24 VDC +12-24 VDC Drawing 3: Flying Lead Cable Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 63: 7054691 External Cable: Ruggedized Enclosure Terminal Block Cable
Page 57 7054691 External Cable: Ruggedized Enclosure Terminal Block Cable XFRMR, WALL MT, 12VDC,2.5A INPUT, 100-240VAC Drawing 4: External Cable Rugged Enclosure Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 64: S330 4-20 M A Current Loop Wiring Cable With Optional Rs-232
Brown Pink Blue Black Black Grey Current Loop Receiver 12-24VDC 12-28VDC Sensor Loop Power Power Source Source Drawing 5: 4-20mA Cable Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 65: S330 4-20 M A Current Loop Wiring With Optional Rs-232 For Ruggedized Enclosure Terminal Block
GND 5 Current Loop Receiver 12-24VDC Sensor Power 12-28VDC Source Loop Power Source Brown Drawing 6: S330 4-20 Ruggedized Enclosure Terminal Block Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 66: S300 / S310 I/O Trigger Cable Wiring With Optional Rs-232
5 VDC 5-12VDC Power Power Control Signal Supply Supply out. Max drive 40mA Drawing 7: S300 / S310 I/O Trigger Cable Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 67: S300/S310 I/O Trigger Cable Wiring With Optional Rs-232 For Ruggedized Enclosure Terminal Block
TX 3 12-24VDC GND 5 Grey Sensor Power White Source Drawing 8: S300 / S310 I/O Trigger Ruggedized Enclosure Terminal Block Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 68: S300 / S310 Sdi-12 Cable Wiring For Optional Rs-232 For Ruggedized Enclosure Terminal Block
Switch is closed. To SDI-12 5VDC SHTDWN Power Source SHTDWN connection is optional. Drawing 9: S300 / S310 SDI-12 Ruggedized Enclosure Terminal Block Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 69: S300 / S310 Sdi-12 Cable With Optional Rs-232
5 VDC SHTDWN Power Source SHTDWN connection is optional. Drawing 10: S300 / S310 SDI-12 Cable with Optional PC Connect Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 70: Diagrams - Mechanical
19 Diagrams - Mechanical Ruggedized Enclosure Outside Dimensions Note: Dimensions are in inches and [centimeters] Figure 11: Drawing 1: Rugged Housing Outside Dim. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 71: Ruggedized Enclosure Inside Dimensions
LTI TruSense S300 Series Integration Manual 3nd Edition Page 65 Ruggedized Enclosure Inside Dimensions Drawing : Rugged Housing inside Dim. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 72: 3004956 Tank Adaptor
LTI TruSense S300 Series Integration Manual 3nd Edition Page 66 3004956 Tank Adaptor Drawing 13: Tank Adaptor Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 73: 3004960 4 Inch Flange
LTI TruSense S300 Series Integration Manual 3nd Edition Page 67 3004960 4 Inch Flange Drawing 14: 4 Inch Flange Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 74: 3004957 Dust / Splash Tube
LTI TruSense S300 Series Integration Manual 3nd Edition Page 68 3004957 Dust / Splash Tube Drawing 15: Dust / Splash Tube Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 75: 77035137 Mounting Plate
LTI TruSense S300 Series Integration Manual 3nd Edition Page 69 77035137 Mounting Plate Drawing 16: Mounting Plate Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 76: 1134749 Sun Shade Industrial Mount
LTI TruSense S300 Series Integration Manual 3nd Edition Page 70 1134749 Sun Shade Industrial Mount Drawing 17: Sun Shade Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 77: Housed Model Dimensions Without Lenses
LTI TruSense S300 Series Integration Manual 3nd Edition Page 71 Housed Model Dimensions without Lenses Drawing 18: Housing Dimensions Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 78: Oem Model Dimensions
LTI TruSense S300 Series Integration Manual 3nd Edition Page 72 OEM Model Dimensions Drawing 19: OEM Dimensions Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 79: Definitions
Eye safe: lasers emitting energy with no hazards to the human eye. Flow Characteristic: refers to the material’s ability to flow easily and uniformly. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 80
Refraction: the change in direction of light as it passes from one medium to another of a different density; e.g., from air to liquid surface. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 81
905 nanometers defines’ this distance as 0.000000905 meters between two adjacent points on the same light wave. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 82: Appendix A - Ruggedized Enclosure For The Trusense S300 Series
Weight: 8 lbs (3.62kg) Dimensions: 5 in diameter x 10 in long (12.7 x 25.4 cm) Conduit fitting: 3/4 in NPT Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 83
Sensors ordered with the ruggedized enclosure will be installed at the factory to ensure proper alignment and fit. Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 84: Ruggedized Enclosure Parts List
Ruggedized Enclosure Parts List Description Part Number Ruggedized Enclosure 7024897 Tank Adaptor 7035146 4-inch Flange 3004960 Dust/Splash Tube 3004957 Spanner Wrench 9034501 Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 85: Ruggedized Enclosure Terminal Block
LTI TruSense S300 Series Integration Manual 3nd Edition Page 79 Ruggedized Enclosure Terminal Block Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 86: Ruggedized Enclosure Installation Instructions & Cautions
LTI TruSense S300 Series Integration Manual 3nd Edition Page 80 Ruggedized Enclosure Installation Instructions & Cautions Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 87: Appendix B- Trusense S330 User's Interface Setup Tool
If your PLC accepts error current signal, what current values are available. Available COM port on the programing PC. PC running Windows 7 or newer. Figure 7: Vessel 4-20 Setup Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 88: Operation Of The S330 Software Tool
Following are the descriptions of each field (See Figures 9, 10 and 11). Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 89
9. Laser Pointer: This will allow the user to turn on or off the visible laser pointer. (See Figure 10) Figure 10: Main Window Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 90: Configuration Window
At this point the sensor is configured and ready for use. Figure 12: Configuration Window Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
Page 91: Notes
LTI TruSense S300 Series Integration Manual 3nd Edition Page 85 23 Notes: Copyright © [2016] Laser Technology, Inc. All Rights Reserved. Unauthorized duplication, in whole or in part, is strictly prohibited.
This manual is also suitable for:
Trusense s310
Trusense s330
Table of Contents
Print
Rename the bookmark
Delete bookmark?
Delete from my manuals?
Login
Sign In
OR
Sign in with Facebook
Sign in with Google
Upload manual
Upload from disk
Upload from URL
