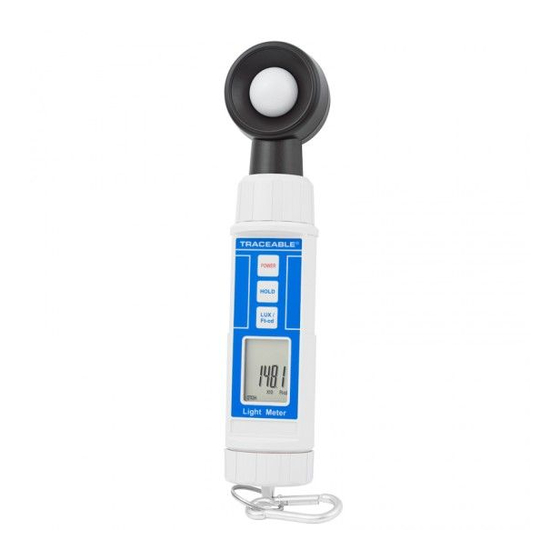

Control Company TRACEABLE 3247 Instructions

SPECIFICATIONS
Range: 0 to 20,000 lux
Resolution:
1
Range:
0.0 to 1860.0 foot candles
Resolution: 0.1
Update Rate: 1 second
Battery: 4 each AAA (1.5V)
OPERATION
1. Press the POWER button to turn the meter on.
2. Select the desired unit of measure (see the "Unit
of Measure" section).
3. Remove the protective light sensor cover. The
light sensor cover may be placed on the back of
the light sensor to prevent loss.
4. Place the light sensor directly under the light
source and take the desired measurements.
5. Replace the protective light sensor cover. While
the meter is not in use, always replace the
protective light sensor cover to prevent damage
to the sensor.
6. Press the POWER button to turn the meter off.
To preserve battery life, always turn the meter
off when not in use.
If no button is pressed for ten (10) minutes, the
meter will turn off automatically to preserve battery
life.
SELECTING UNIT OF MEASURE
1. Press the POWER button to turn the meter on.
2. Press LUX/FT-CD button. If the meter had been
displaying Lux ("Lux"), it will now display Foot-
Candles ("FT-CD"), and vice-versa. Each press
of the LUX/FT-CD button will change the unit of
measure.
The unit of measure selected will be the default
unit of measure until changed.
HOLD FUNCTION
The hold function allows the readings on the dis-
play to be "frozen" so that they may be recorded.
1. Press and release the HOLD button to "freeze"
the display at the current reading. "HOLD" will
appear at the bottom of the display.
2. Once the reading has been recorded, press and
release the HOLD button to return the display
to the current reading. "HOLD" will no longer
appear on the display.
DISPLAY MESSAGES
If the light source being measured exceeds the
measurement range of the meter, " - - - -" will ap-
pear on the display.
ALL OPERATION DIFFICULTIES
If this meter does not function properly for any
reason, replace the batteries with new, high quality
batteries (see the "Battery Replacement" section).
Low battery power can occasionally cause any
number of "apparent" operational difficulties.
Replacing the batteries with new fresh batteries will
solve most difficulties.
