Areca ARC-1886-8I Quick Installation Manual

www.areca.com.tw
Tri-Mode RAID Adapters
ARC-1886-8I / 8X / 8X8I / 16I
Step 1: Unpack
Inspect tri-mode RAID adapter from the package. If it appears
damaged, or if any items of the contents listed below are
missing or damaged, please contact your dealer or distributor.
Checklist
1 x Low-profile bracket
•
1 x Tri-mode RAID adapter in an ESD-protective bag
•
1 x ARC-1886 series quick installation guide
•
Step 2: Power PC/Server Off

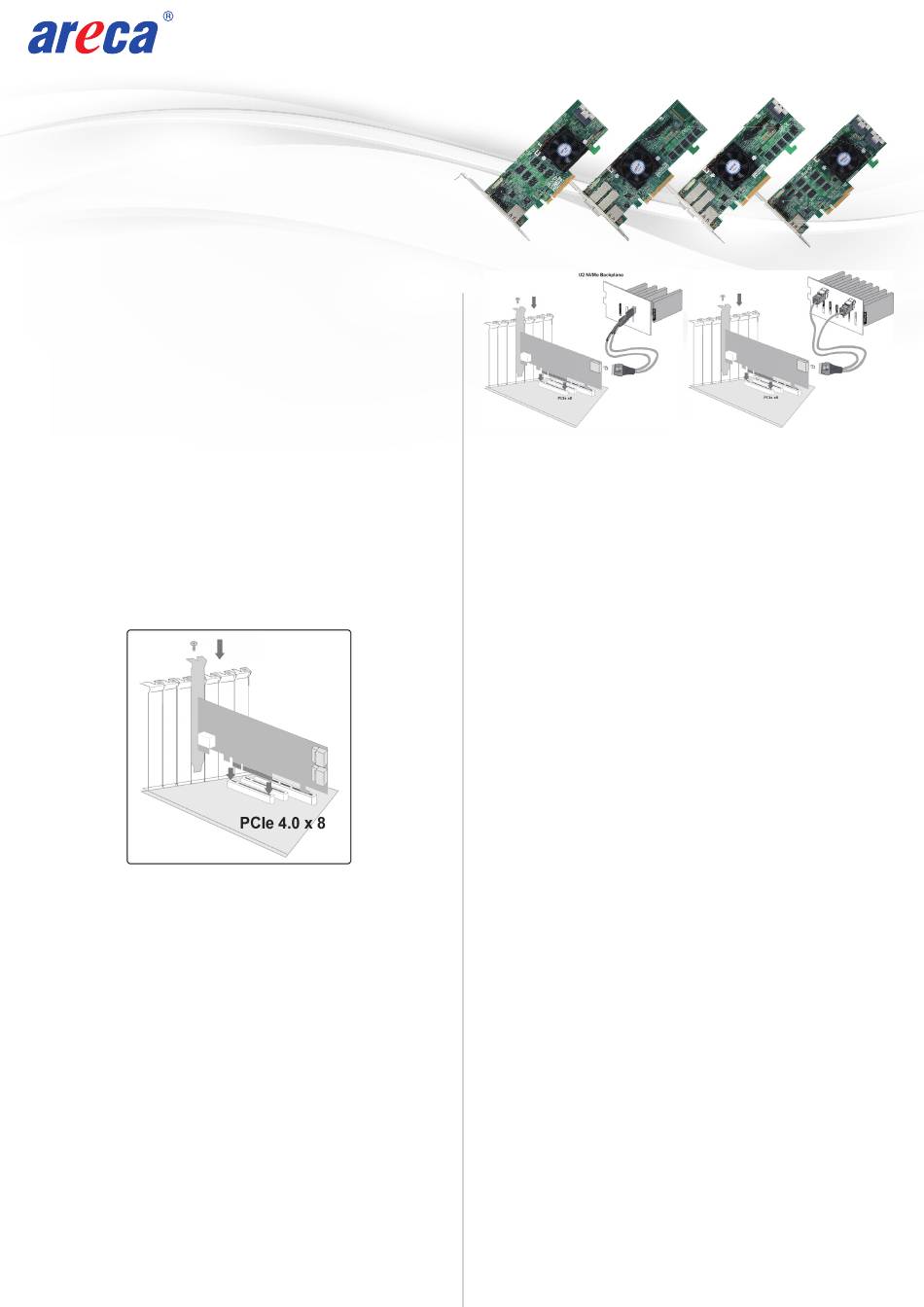

Step 3: Install the Tri-Mode RAID Adapters
Remove the mounting screw and existing bracket from the
rear panel behind the selected PCIe 4.0 slot. Align the
gold-fingered edge on the card with the selected PCIe 4.0
slot. Press down gently but firmly to ensure that the card is
properly seated in the slot. Then, screw the bracket into the
computer chassis.
Step 4: Mount the Drives
You can connect the PCIe/SAS/SATA drives to the adapter
through direct cable and backplane solutions.
(1). In the direct connection:
The SAS/SATA/NVMe drives are directly connected to tri-mode
RAID adapter PHY port with proper storage connection cables.
(2) In the backplane solution:
The SAS/SATA/NVMe drives are directly connected to system
backplane or through a PCIe switch/expander board. The
number of SAS/ SATA/NVMe drives is limited to the number of
slots available on the backplane. Some backplanes support
daisy chain expansion to the next backplanes.
Step 5: Install Storage Connection Cable
SFF-8612 or SFF-8654 are the preferred connectors to use for
NVMe backplane or multiprotocol backplanes based on the
SFF-TA-1001 universal bay definition (UBM).The preferred I/O
connector for server legacy SAS/SATA backplanes is the
internal SFF-8087/8643 connector. For backplane connector
supporting, please refer to the system backplane manual and
choose the proper cable from Section 2.4 Storage Connection
Cables for installation of user manual.
Quick Installation Guide
Step 6: Connect Monitor Port - LAN Port
User can remote manage the RAID adapter without adding
any user specific software (platform independent) via
standard web browsers directly connected to the RJ45 LAN
port.
Step 7: Adding a CBM Backup Module (Optional)
Please refer to Appendix B of user manual.
Step 8: Power up the System
Step 9: Install the Adapter Driver
For a new system:
• Driver installation usually takes places as part of operating
system installation. Please refer to Chapter 4 "Diver
Installation" of the user manual for the detailed installation
procedure.
In an existing system:
• To install the adapter driver into the existing operating
system. For the detailed installation procedure, please refer
to the Chapter 4 "Driver Installation" of the user manual.
Step 10: Install ArcHTTP Proxy Server (Optional)
ArcHTTP has to be installed for GUI RAID console (MRAID
storage manager) to run. It is used to launch the web browser
MRAID storage manager. It also runs as a service or daemon
in the background that allows capturing of events for mail and
SNMP traps notification. The on-board RJ45 LAN port [Step 6]
can provide the same function as above.
Follow the steps below to install the ArcHttp utility.
1. Download ArcHttp proxy server (or MRAID software) from
Areca website: https://www.areca.com.tw/support/downloads.html
2. Follow the steps on the user manual to complete the
installation
If you need additional information about installation and
start-up of this function, see the ArcHTTP Proxy Server
Installation section in Chapter 5 of the user manual. For SNMP
agent function, please refer to Appendix C of the user manual.
Step 11: Configure RAID Set & Volume Set
You can create and configure a RAID adapter using any of
these tools:
• McBIOS RAID Manager
— BIOS-based menus and keyboard navigation.
• MRAID Storage Manager
— Web browser firmware-based manager, which is accessible via
the web browser installed on your operating system. It can be
launched through ArcHttp utility or onboard LAN port.
