Audio Technica ES935ML6 Installation And Operation

ES935ML6
DESCRIPTION
The ES935ML6 is a wide-range minia-
ture condenser microphone with a
MicroLine
for quality sound reinforcement,
professional recording, television
and other demanding sound pickup
applications. The small-diameter
gooseneck design per mits highly
flexible positioning while maintaining a
smooth, well-contoured appearance.
An
effectively reduces wind noise and
"popping."
The ES935ML6 is equipped with
UniGuard
which offers outstanding rejection of
radio frequency interference (RFI).
The microphone is RoHS compliant –
free from all substances specified in
the EU directive on hazardous
substances.
The microphone's MicroLine
patter n provides a 90° angle of
acceptance. Additional interchangeable
elements with omnidirectional (360°),
cardioid (120°) and hypercardioid (100°) pickup patterns are available.
The integral power module can be powered from any external 11V
to 52V DC phantom power supply. A recessed switch in the power
module permits choice of flat response or low-frequency roll-off
(via integral 80 Hz high-pass UniSteep
undesired ambient noise.
The microphone is enclosed in a rugged housing with a low-
reflectance black finish. It features an XLRM-type connector insert
at its base, allowing it to be plugged directly into an XLRF-type
panel jack or microphone cable. In addition to an AT8474 low-
profile isolation mount, an AT8473 stand clamp is included to
permit attachment of the XLR mic base to a standard
/ "-16 threaded mic stand or mounting flange.
3
8
INSTALLATION AND OPERATION
The ES935ML6 requires 11V to 52V phantom power for operation.
Output is low impedance balanced. The output connector mates
with XLRF-type cable connectors. The balanced signal appears
across Pins 2 and 3, while the ground (shield) connection is Pin 1.
Output is phased so that positive acoustic pressure produces
positive voltage at Pin 2, in accordance with industry convention.
The microphone can be mounted on a podium or desktop with the
included AT8474 low-profile isolation mount. Designed to be
mounted either above or beneath the mounting surface, the
AT8474 firmly secures the microphone while providing maximum
attenuation of noise, shock and vibration transmitted through the
mounting surface. Installation details are provided on the back of
this sheet. An AT8473 stand clamp is also included to permit
attachment of the XLR mic base to a standard
threaded mic stand or mounting flange.
The provided foam windscreen simply slips over the element,
effectively reducing wind noise and "popping."
An integral 80 Hz high-pass UniSteep
from a flat frequency response to a low-end roll-off. The roll-off
position reduces the pickup of low-frequency ambient noise (such
as traffic, air-handling systems, etc.), room reverberation and
mechanically coupled vibrations. To engage the UniSteep
use the end tip of a paperclip or other small pointed instrument to
slide the switch toward the "bent" line.
While a modern condenser microphone is not unduly sensitive to
the environment, temperature extremes can be harmful. Exposure
to high temperature can result in gradual and permanent reduction
of the output level. Avoid leaving the microphone in the open sun
or in areas where temperatures exceed 110° F (43° C) for long
periods of time. Extremely high humidity should also be avoided.
MICROLINE ® CONDENSER
GOOSENECK MICROPHONE
® polar pattern. It is designed
included foam windscreen
® RFI-shielding technology,
®
® filter) to help control
5 / "-27 or
8
5 / "-27 or 3
8
® filter provides easy switching
®
ARCHITECTS AND ENGINEERS SPECIFICATIONS
The microphone shall be a fixed-charge condenser designed
for permanent installation or portable applications. It shall have a
MicroLine ® polar pattern with uniform 90° angle of acceptance and
shall be capable of accepting optional interchangeable elements
for additional polar patterns. It shall have a frequency response of
30 Hz to 20,000 Hz and be capable of handling sound input levels
up to 133 dB with a dynamic range of 109 dB. Nominal open-cir-
cuit output voltage shall be 17.7 mV at 1 kHz, 1 Pascal. Output
shall be low impedance balanced (250 ohms).
The microphone shall operate from an external 11V to 52V DC
phantom power source. It shall offer outstanding rejection of radio
frequency interference (RFI). The microphone shall be RoHS compliant.
The microphone shall be a gooseneck design permitting highly
flexible positioning and noiseless operation. It shall incorporate a
self-contained power module with an XLRM-type connector at the
base for direct connection to a mating XLRF-type panel jack or
cable connector. The power module shall include a recessed
switch for low-frequency roll-off. The low-frequency roll-off shall be
a tailored roll-off at 80 Hz to minimize pickup of unwanted
mechanical noise.
polar
A universal isolation-type shock mount suitable for above or below
surface installation shall be supplied for mounting the microphone
in a solid surface. It shall be possible to firmly secure the
microphone in the mount. The mount shall include appropriate
hardware for installation. For alternative mounting and portable
applications, the microphone shall be supplied with a stand clamp
to permit attaching the microphone directly to a standard
3 / "-16 thread. A foam windscreen shall also be included.
8
The microphone shall be a small-diameter gooseneck design, with
an overall length of 12.45" (316.3 mm). Head diameter shall be
0.31" (8.0 mm). The microphone weight shall be 3.8 oz
(108 grams). Finish shall be low reflectance black.
The Audio-Technica ES935ML6 is specified.
AT8474 LOW-PROFILE ISOLATION MOUNT INSTALLATION
INSTRUCTIONS

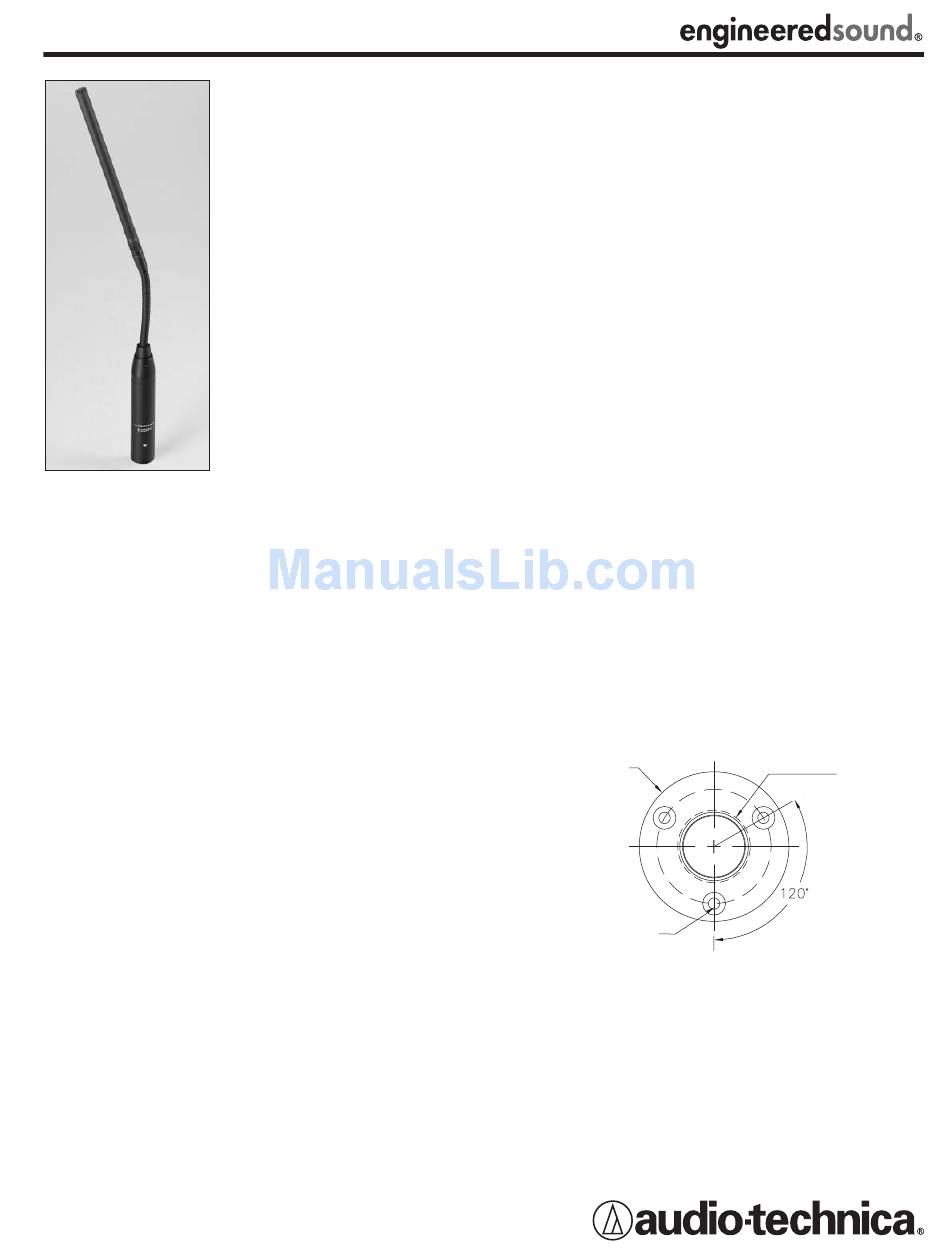

MOUNTING DIMENSIONS
A.
1 / " (1.5 mm) pilot holes 3 places on 1.57" (40.0 mm) circle.
16
B. 1.00" (25.4 mm) hole through the mounting surface.
C. Outside edge of mount, 2.06" (52.4 mm) diameter.
/ "-16
8
Drawing not actual size.
1. The AT8474 mount can be mounted either above or below the
table surface.
2. Locate the center of the mounting location and mark it. Allow
enough clearance to accommodate the AT8474 mount on
the desired surface and make certain there are no physical
filter,
obstructions below the desired location.
3. Locate the three mounting screw holes and mark them.
Continued on back.
C
A
5 / "-27 or
8
B
