NetVanta E1/FE1 Network Interface Module (NIM)
Quick Start Guide

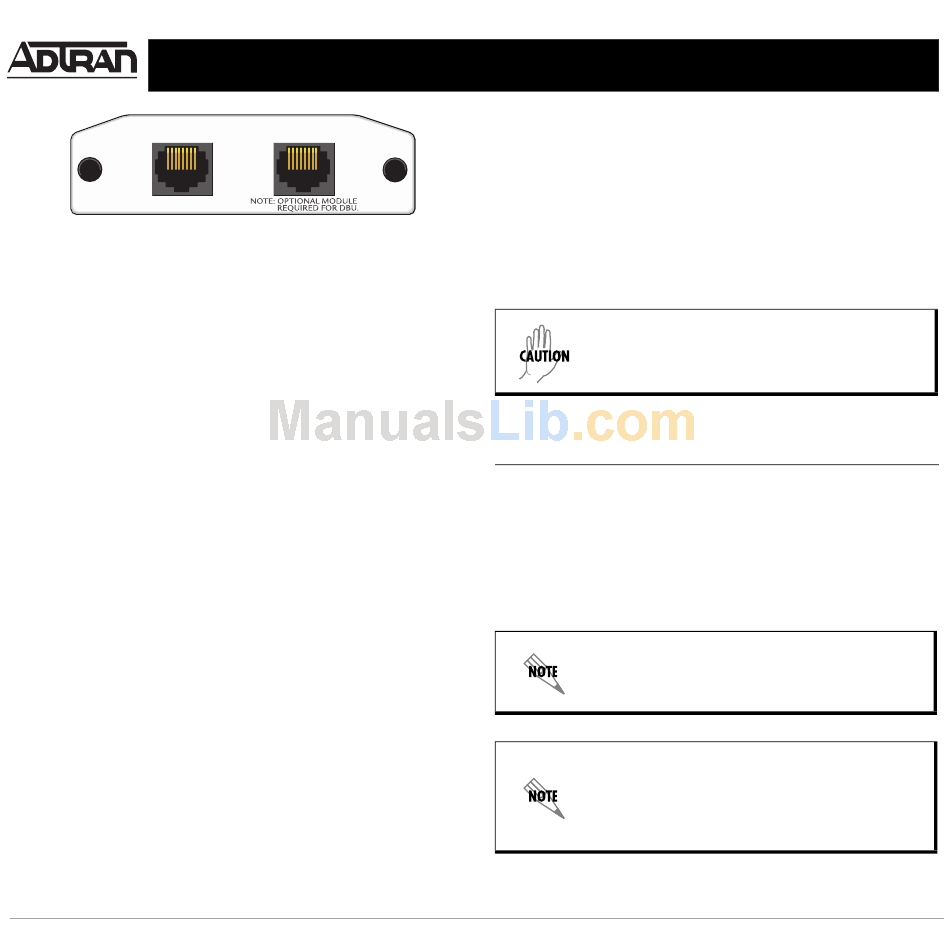

WAN-E1
S
PECIFICATIONS
Operatin Modes Frame Relay, Multilink Frame Relay,
PPP, Multilink PPP, HDLC
E1/FE1 Interface Supported Standards: ITU-T G.703, ITU-T G.704
(CRC-4), ITU-T G.823, ITU-T G.797
Line Rate: 2.048 Mbps ±50 PPM
FE1 Line Rate: Channelized timeslot (in multiples of
56/64 kbps)
Line Code: AMI or HDB3
Framing: FAS with optional CRC-4
Receiver Sensitivity: -30 dB
Connector: RJ-48C
Clock Source Network, internal
Diagnostics Test Pattern Generation and Detection: QRSS, 511, all
ones, all zeros
Network loopbacks
Alarm generation and detection
Network performance data (15 minutes and 24 hours)
Compliance FCC Part 15 Class A, EN 55022 Class A, EN 55024,
EN 61000-3-2, EN 61000-3-3
AS/ACIF S016, ETSI TBR 12/TBR 13
EN 60950, IEC 60950, AS/NZS 60950
Physical Dimensions: 2.75-inch W x 4.25-inch D
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent, noncondensing
Quick Start Guide, 61200868L1-13D, July 2005
DBU
ADTRAN Technical Support +1-256-963-8716
For more detailed documentation, visit us online at www.adtran.com.
I I
NSTALLATION NSTRUCTIONS
1. Remove power from the unit.
2. Slide the option moduleinto the option slot until the module is firmly
seated against the chassis.
3. Secure the pins at both edges of the module.
4. Connect the cables to the associated device(s).
5. Complete the installation of the base unit.
6. Restore power to the unit.
NetVanta modules should be installed only in
NetVanta Series products.
WAN-E1 N (RJ-48C) C
ETWORK
Pin Name Description
1 R1 Receive data from the network - Ring 1
2 T1 Receive data from the network - Tip 1
3 — Unused
4 R Transmit data toward the network - Ring
5 T Transmit data toward the network - Tip
6-8 — Unused
An optional Dial Backup Interface Module (DIM) is
required for dial backup applications.
For a description of the DBU pinouts, refer to the
Quick Start Guide included with your DIM shipment.
Important: For additional details on product
features, specifications, installation, and safety,
refer to the appropriate Hardware Installation
Guide on the ADTRAN OS System Documentation
CD shipped with the base unit and available online
at www.adtran.com.
P/N 1200868L1
P
ONNECTION INOUTS
